China best sold feed pellet granulator with CE certificate
- 800 Set / Sets per Month
- any chinese port
- T/T
Product Details
Condition: | New | Place of Origin: | Henan, China | Brand Name: | KUNCHI |
Model Number: | KCSP-150B | Type: | Feed Pellet Machine | Voltage: | 380V |
Power(W): | 4000 | Dimension(L*W*H): | 770*340*680mm | Weight: | 95 kg |
Certification: | CE | Warranty: | 1 year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

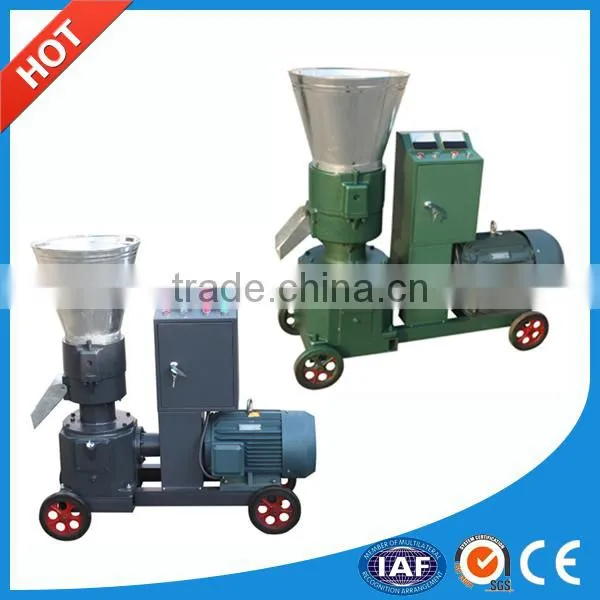

Mini Type Flat Die Pellet Mill
*Specification
1.CE approved
2.Pellet diameter is 2.5-12mm
3.Length of the pellet is 5-40mm
4.Energy saving and cost-efficient
*Introduction of pellet mill
The ZL series flat die pellet mill is popular for its ruggedness and flexibility. It is suitable for home use and small or big enterprises to produce animal feed, biomass pellet fuel and organic/inorganic fertilizer.
he ZL series flat die pellet mill is movable and easy operation,can be worked by diesel engine or electric motor. It’s environment friendly, clean and energy saving the moisture of the material required is 10%-18%, different material, different moisture requirement.
Customers can choose different die to make different size pellet, the diameter range of feed pellet is 2.5-6mm, for wood pellet is 6-12mm, and the length can be 5-40mm.
*Processing scope:
The ZL series flat die pellet mill has a wide processing scope,we could get it to pellet from biomass material we could find now, such as wood chips, pine, bamboo, peanut shell, rice husk and straw,etc.
*ATTENTION:
The ZL series flat die pellet mill has two types: die-turning(ZLS) and roller-turning(ZLM), the die-turning type is more suitable to make feed pellet,and the roller turning type is more suitable for making wood pellet.
*Specification of flat die pellet mill(die turning):
Model | Power | Capacity | Size | Weight |
ZLS-120A | 8 HP | 60-100kg/h | 730*320*670mm | 120kg |
ZLS-120B | 3kw | 60-100kg/h | 750*310*620mm | 80kg |
ZLS-150A | 8HP | 100-200kg/h | 760*430*710mm | 130kg |
ZLS-150B | 4kw | 150-220kg/h | 770*340*680mm | 95kg |
ZLS-150C | 4kw | 150-220kg/h | 770*340*680mm | 95kg |
ZLS-200A | 15 HP | 220-350kg/h | 1180*560*1020mm | 320kg |
ZLS-200B | 7.5kw | 200-300kg/h | 1000*430*950mm | 190kg |
ZLS-200C | 7.5kw | 200-300kg/h | 1000*450*930mm | 200kg |
ZLS-230A | 22HP | 300-400kg/h | 1180*560*950mm | 360kg |

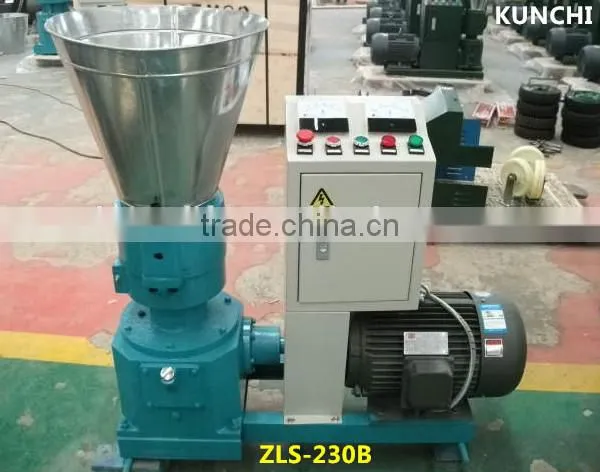

ZLS-230B | 11kw | 300-400kg/h | 1140*500*970mm | 280kg |
ZLS-260B | 15kw | 400-600kg/h | 1200*500*1030mm | 330kg |
ZLS-300A | 55 HP | 600-800kg/h | 2200*600*1230mm | 730kg |
ZLS-300C | 22kw | 600-800kg/h | 1320*530*1070mm | 440kg |
*ATTENTION: A is diesel engine type, B and C are both motor type,but for C type, the motor is totally covered.
Specification of flat die pellet mill(roller turning):
Model | Power(kw) | Capacity(kg/h) | Size (mm) | Weight (kg) |
ZLM-200 | 7.5 | 80-120 | 950*450*1050 | 215 |

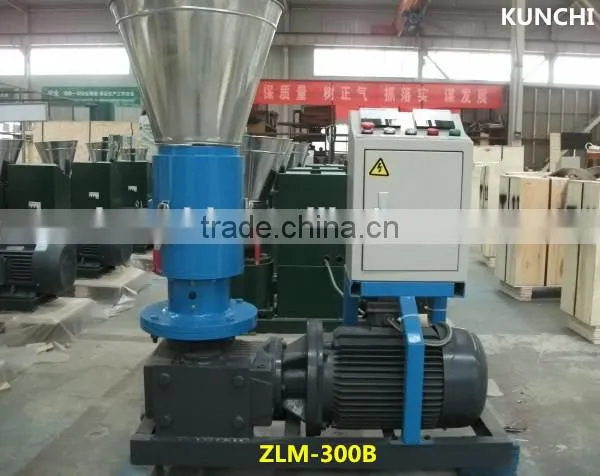

ZLM-300 | 22 | 250-350 | 1350*750*1400 | 540 |
ZLM-400 | 30 | 350-450 | 1400*800*1450 | 770 |
ZLM-550 | 55 | 600-900 | 2300*800*1900 | 3000 |

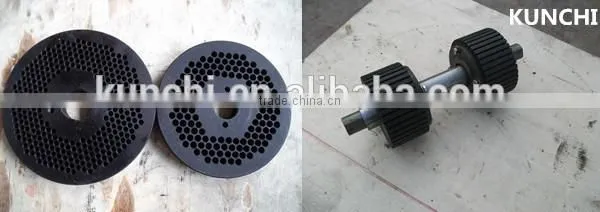

*Wearing parts(compression roller and die):

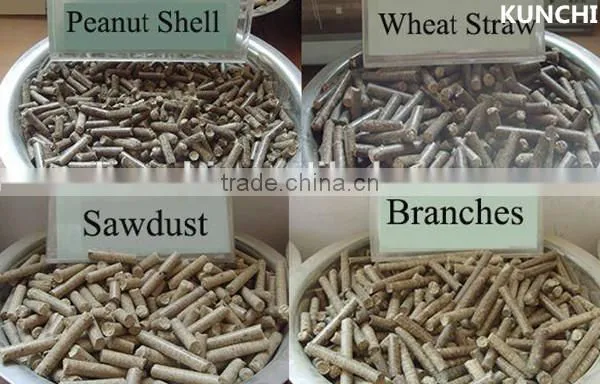

*Final products:

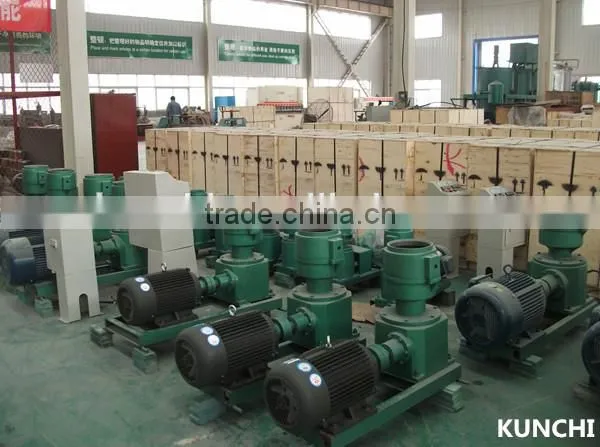

*Machines in the workshop:

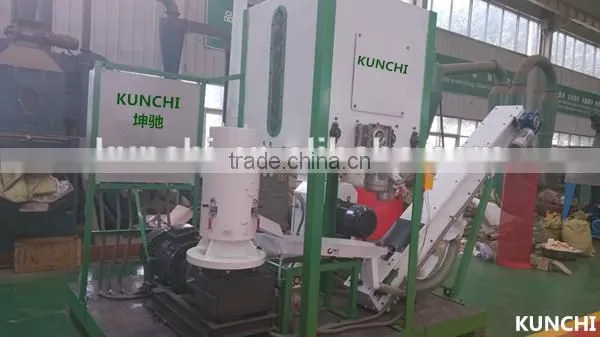

*We also supply the movable mini pellet plant as below:

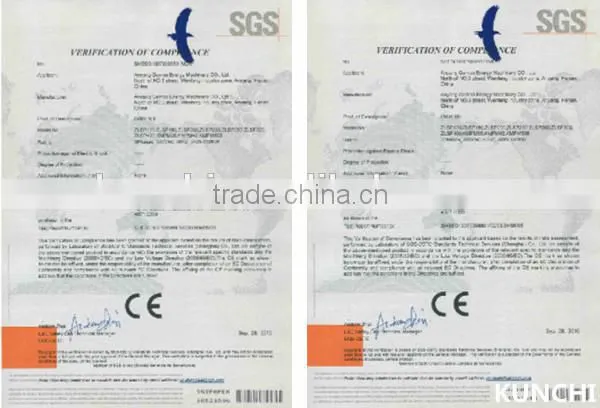

*CE certificates for all the models:
All the goods exported are packed in wooden case or carton with export standard except naked package when necessary.
We have our own professional shipping company which could deliver the goods to every corners in the world with safety and speed, and aslo can supply the services of solving the problems occured during the transaction, such as customs cleaning.
*How do you guarantee I can receive the goods that ordered after make the payment?
Please rest assured that you will receive the goods in time, we are a legally established company supervised by the government, and is registered in customs of China and China Chamber of International Commerce. Besides, we are the golden member of Alibaba and has been chekced by the third party as the real and legal company, what is more important, honesty and trustworthiness is our basic principle and our company life.
* How to make the payment?
Normally, when the order value is below USD10,000, we accept the payment by T/T or Western Union or Cash, L/C will be accepted when the order value is over USD10,000. For T/T, the customer can choose 100% in advance or 30% in advance, and pay the 70% balance before shipment.
*Date of delivery?
We will arrange the production and shipment as soon as possible when we received the deposit, and update the information with the customer on line.
*Suitablity of motor?
As there are many volatage standards in different countries in the world, so the original motor equipped on the machine would not suitable to be used with the customer's local power supply, when this situation happend, please send us your exact information of the power supply available, then we can modify the motor accordingly.
*After sale service?
For most of the machines, the quality is guaranteed for one year since the date of shipment expet wearing parts, we supply the on-line service for all the machines, and also supply the spare parts all the time with cost price, for some complicated machine or plant, we can send our engineer overseas too.
