Low price wheat straw hammer crusher machine with high effective

Specifications

straw crusher
1.Low price
2.Salable Cotton wheat straw
3.Easy operation.
4.High effective

Low price wheat straw hammer crusher machine with high effective

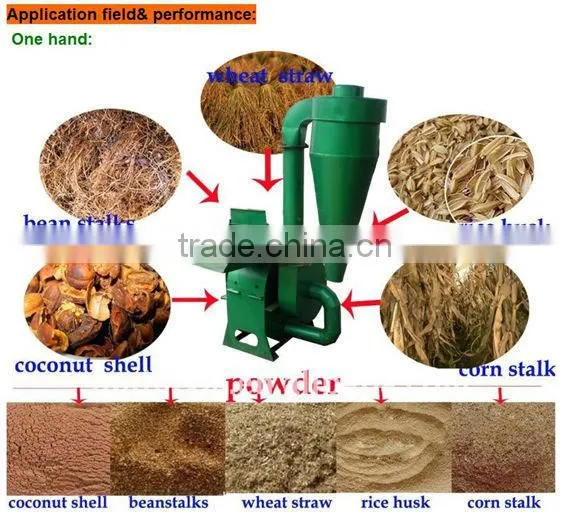

Applycation of straw crusher

for coffee husk, paddy straw, sunflowers stalk, soybeans husk, seeding of yam, peanut

Introduction of straw crusher

 This feed grinder is made of all-steel structure,

which will not be destroyed by iron, stone, shell debris strayed into the machine off the hook,

and one with the power assembly to facilitate flow of processing. The machine is used in food, crop dry and

 straw smashing processing can also be used for potato beating.

Working principle of straw crusher

 Staw crusher 's working principle is : material from the hopper into the crushing chamber,

there have been high-speed rotating hammer crushing blow,

under the action of centrifugal force to break the material along the outer edge of the rotor,

continuous film by the hammer, tooth plate, combat, rubbed and was quickly crushed,

crushed powder after the centrifugal rotor by the pressure and suction force of the fan sent outside the aircraft through the sieve,

sieve the powder through repetition but on top process until wheat straw crusher through the sieve was sent to the far outside.

Feature & Advantage of straw crusher

1. Grind all kinds of materials of pellet feed, such as corn, sorghum, grain, legumes, broken cake pellet and others.

2. Building in rotor, grind the raw material with no dead angle, finished products would be more even.

3. Operating button can be moved fully, it is easy to be operated.

4. In-built sealed avoid dust spill out, keep the working environment tidy and clean.

5. May carry on the ordinary grinding, also may carry on the thin grinding and the micro grinding.

Thus it has been widely used in the raw material grinding of the large and medium scale feed factory, alcohol plant, food products factory and so on.

Technical parameter of straw crusher

Type	Power(kw)	Diesel engine(HP)	Capacity (kg/h)	dimension(mm)	Weight (kg)
9FQ-320	3	4	100-300	700*600*700	76
9FQ-360	4	6-8	150-400	700*600*800	85
9FQ-400	5.5	8-12	200-600	950*700*1000	120
9FQ-420	7.5	12-15	250-600	950*800*1100	140
9FQ-500	15	15-20	300-700	1100*900*1200	200
9FQ-600	30	30-45	400-1000	1900*1200*1900	500
9FQ-800	37	45-55	1000-2000	2500*1500*2300	800
