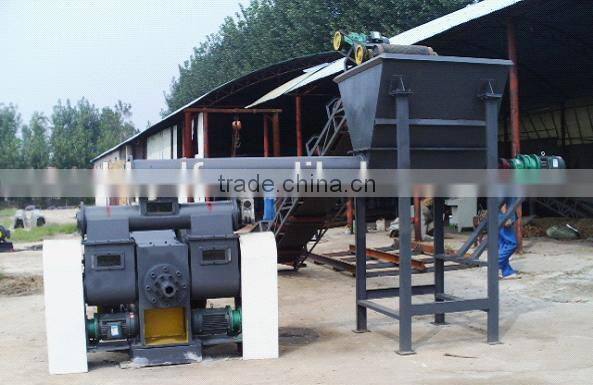

High Production Capacity Palm Fiber Briquette Making Machine KJY-1000 With Stable Delivery Time Made in China

high production capacity palm fiber briquette making machine KJY-1000 with stable delivery time made in China

1. Raw material: straw, sawdust, rice husk, seed shell, palm fiber, corn straw, alfalfa, and other biomass waste materials

2. Size of raw material: 5-20mm

3. Moisture of raw material: 8-25%

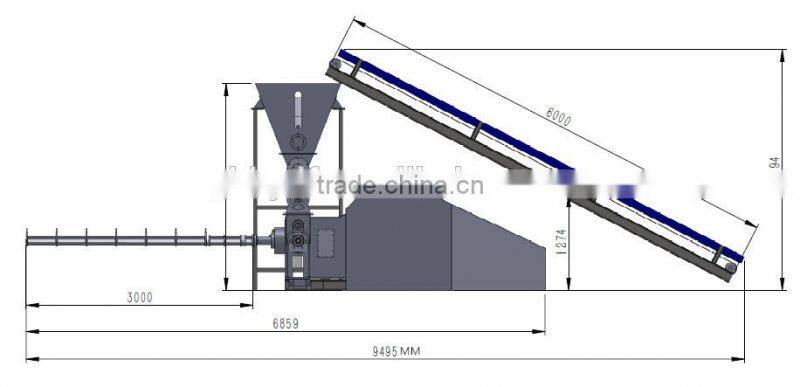

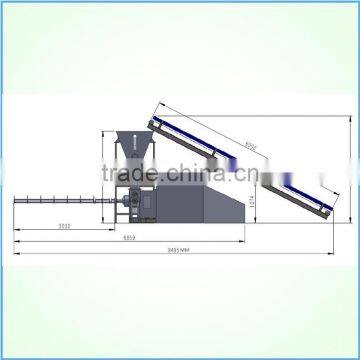

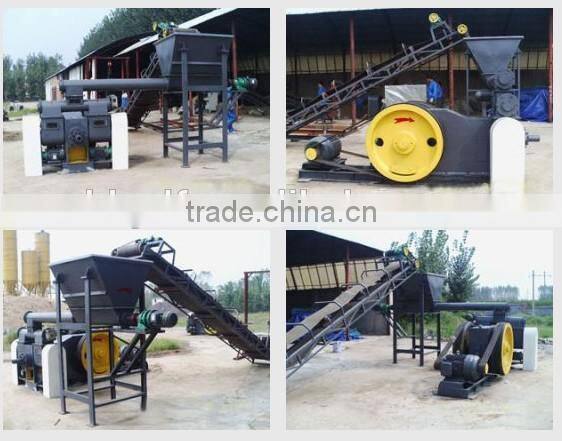

4. This plant includes: feeding conveyor, feeding hopper, briquetting press, control panel

THE PARAMETER:

Model: KJY-1000

Power: 45KW Total Power: 61KW

Output: 800-1000KG/H

Operator:2-4 persons

Electric consumption: about 49KW/H /T (the crushing part is not included)

Overall dimension of the mainframe: 3500×1800×1700(mm); L×W×H

Occupied Area: 90cubic meter (Proportion feeder and screw conveyor are included)

Total Weight: About 8000kg

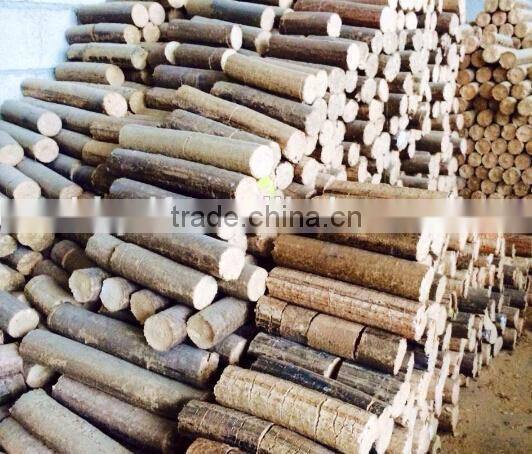

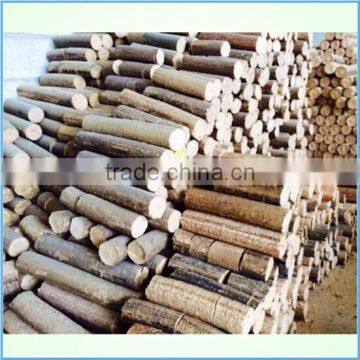

Diameter of the briquette: 75-80mm

Density of the briquette: 0.8-1.2g/cm3

Moisture of final product: <=12%

1) There is no binder need during processing. And no pollution when it burns

2) The quantity of heat of final product is 500-1000Kcal higher than raw material

3) Briquette can instead of firewood and liquefaction gas, and little investment

4) Small cubage and easy for transport

5) The raw material is not need to be crushed before briquetting

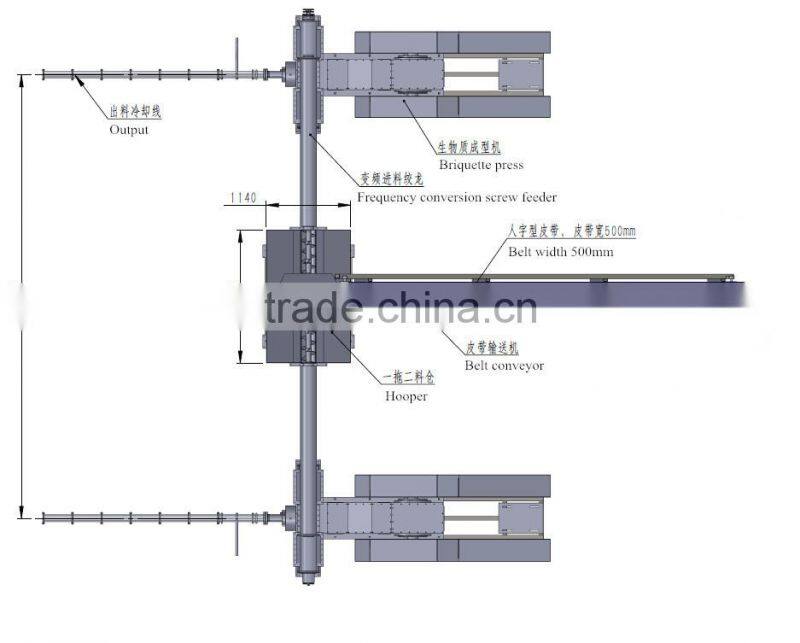

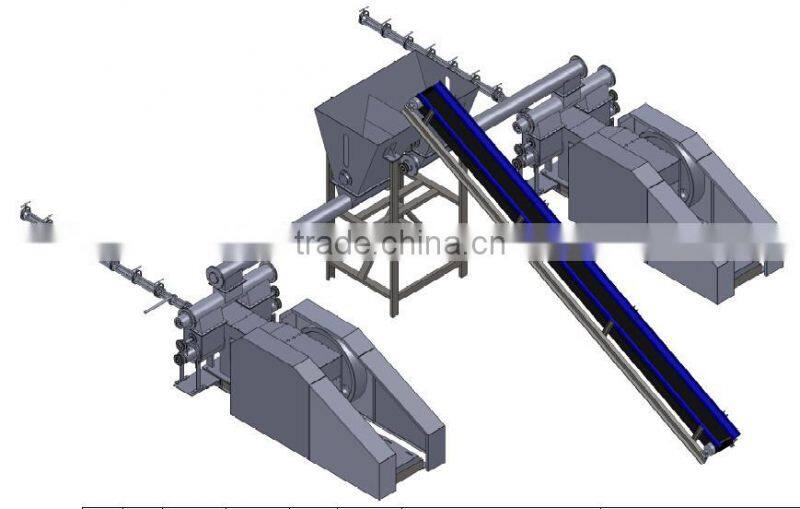

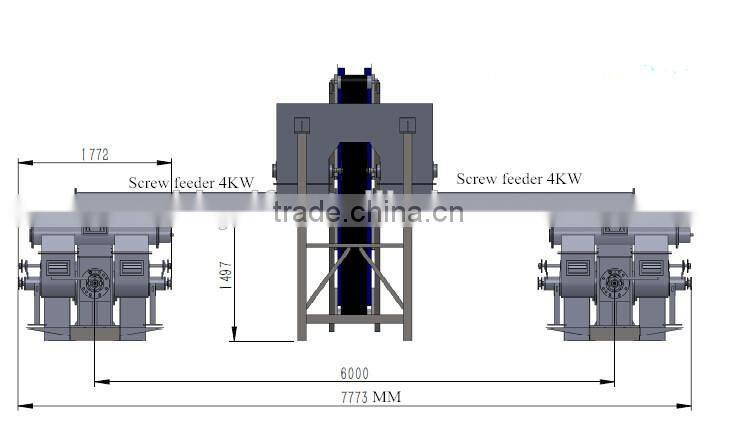

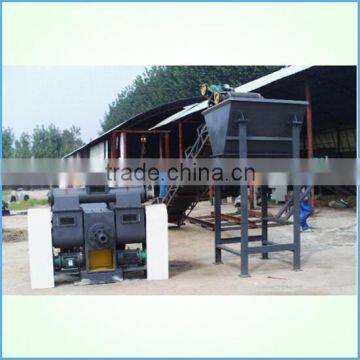

One line with two sets of KJY-1000 briquette machine

* One year guarantee

* 24 hours technical support by e-mail

* Calling or door-to-door service

* User manual

The purpose of all our research and equipment designing is to promote the application of Wasted EFB utilization. In one hand, there is shortage of wood or straws in biomass fuel industry, converting shredded EFB fiber becoming a major contribution in renewable energy. In the other hand, we update the utilization technology of EFB, and reduce the wastes.

Why choose YDF?

1) YDF has worked on field, of turning wasted palm EFB and coconut EFB into fibre over 3 years, both palm long fibre for making papers or mattress, and short palm fibre for boiler fuel, making EFB pellets or briquettes, making fertilizer.

2) We have done a lot of trial operation on palm EFB, and coconut EFB.

3) We have exported more than 50 fiber production line to Malaysia, Thailand, Indonesia, we cooperated with users for supervising machine performance in long time terms.

4) We are reliable, and treasure our reputation. Fast delivery, fast replying to clients question.
