1.Pillow block Introduction:
Pillow Block Bearing UCP or NP Series Plummer / Pillow Housings: Supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required.

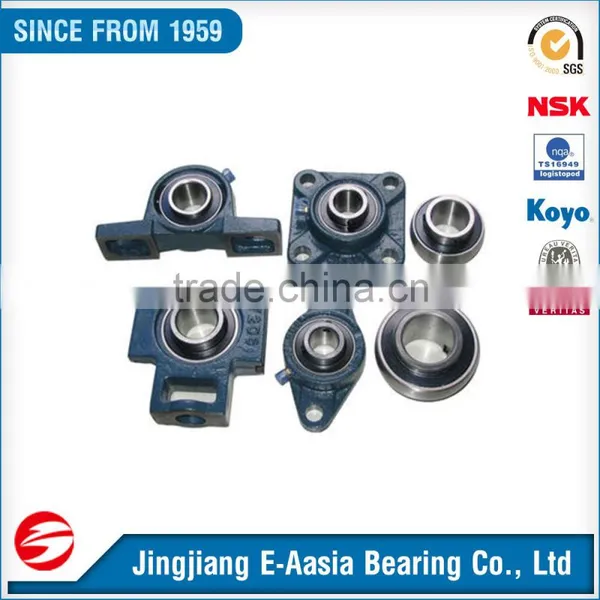

The pillow block ball bearing is composed of a single row of deep groove ball bearings with seals at both sides and spherical outside surface, and a housing, suitable for simple support, widely used in various of mechanical equipment, esp.agriculture, textile and printing machinery.
2.STRUCTURE: pillow block housing and pillow block insert bearing.
3.Types:UCT, UCF, UCFC, UCFL,UCP, UCP,UCP.UCFL.UCPA.UCLP.UCPW.UCPX.UCFS.SAFT series pillow block.
4.Material: Housing, grey cast iron. Bearing, ball-bearing steel 100Cr6. Seal, rubber NBR.
5.Version: Housing, painted.
Insert bearing units with plummer block housing
Insert bearing units with square housing
Insert bearing units with oval housing
Insert bearing units with flanged round housing
Insert bearing units with ring housing
Insert bearing units with take-up housing
Insert bearing units with hanger housing
Insert bearing units with suspended housing
Insert bearing units with adapting oval housing
Insert bearing units with pressed plummer block housing
Insert bearing units with other housing
6.Note: Pillow block bearings consist of a sealed single-row ball bearing with a spherical outer ring which is mounted in a housing. Because of the spherical outer surface of the bearing, shaft misalignment can be compensated for. The bearings are manufactured with a plus tolerance. This results in transition or press fits when using shafts with h-tolerances. The shaft is secured by grub screws on the inner ring. In normal applications, pillow block bearings are maintenance-free due to the lifetime lubrication. In difficult environmental conditions re-lubrication can be carried out over the grease nipple. All housing dimensions are nominal dimensions for which the usual casting tolerances must be taken into consideration.
| UCF201 | UCF305 | UCP201 | UCP305 | SN505 | UCFU203 | UELP201 |
| UCF202 | UCF306 | UCP202 | UCP306 | SN506 | UCFU204 | UELP202 |
| UCF203 | UCF307 | UCP203 | UCP307 | SN507 | UCFU205 | UELP203 |
| UCF204 | UCF308 | UCP204 | UCP308 | SN508 | UCFU206 | UELP204 |
| UCF205 | UCF309 | UCP205 | UCP309 | SN509 | UCFU207 | UELP205 |
| UCF206 | UCF310 | UCP206 | UCP310 | SN510 | UCFU208 | UELP206 |
| UCF207 | UCF311 | UCP207 | UCP311 | SN511 | UCFU209 | UELP207 |
| UCF208 | UCF312 | UCP208 | UCP312 | SN512 | UCFU210 | UELP208 |
| UCF209 | UCF313 | UCP209 | UCP313 | SN513 | UCFU211 | UELP209 |
| UCF210 | UCF314 | UCP210 | UCP314 | SN515 | UCFU212 | UELP210 |
| UCF211 | UCF315 | UCP211 | UCP315 | SN516 | UCFU213 | UELP211 |
| UCF212 | UCF316 | UCP212 | UCP316 | SN517 | UCFU214 | UELP212 |
| UCF213 | UCF317 | UCP213 | UCP317 | SN518 | UCFU215 | UELP213 |
| UCF214 | UCF318 | UCP214 | UCP318 | SN519 | UCFU216 | UELP214 |
| UCF215 | UCF319 | UCP215 | UCP319 | SN520 | UCFU217 | UELP215 |
| UCF216 | UCF320 | UCP216 | UCP320 | SN522 | UCFU218 | UELP305 |
| UCF217 | UCF321 | UCP217 | UCP321 | SN524 | UCFU220 | UELP306 |
| UCF218 | UCF322 | UCP218 | UCP322 | SN526 | UELP307 | |
| UCF324 | UCP219 | UCP324 | SN528 | UELP308 | ||
| UCF326 | UCP220 | UCP326 | SN530 | UELP309 | ||
| UCF328 | UCP328 | SN532 |
UELP310 |
Deep groove ball Bearings Packaging:
1. Normally deep groove ball bearing use default industrial package with our own logo, customerized logo and marking is also acceptable.
2. Make special plywood box for big bearing or small bearing big order.
Bearings Shipping:
1.By Express: DHL, FEDEX, UPS, TNT, SF EXPRESS and EMS and so on.
2. By Air: We can ship from Shanghai, Shenzhen, Hongkong etc.
3. By Sea: We can offer you FOB Shanghai, FOB Guangzhou etc.
4. We also can send to your forwarder or agent in China, who can arrange shipment for you.
Why choose PAHP bearing?
1. we can offer OEM, non-standard, if you have detail drawing / samples, we can also produce.
vide technical support
3. 24-hour response line
4. quality assurance for 12 months quality warranty period
5.100% test the quality and packing before delivery
6. Professional experience more than 10 years.
7. Free sample available.
Welcome to contact us for detailed quotation and long term business relations!
