wood pellet machine
please pay attention to our brand and logo:ROTEXMASTER

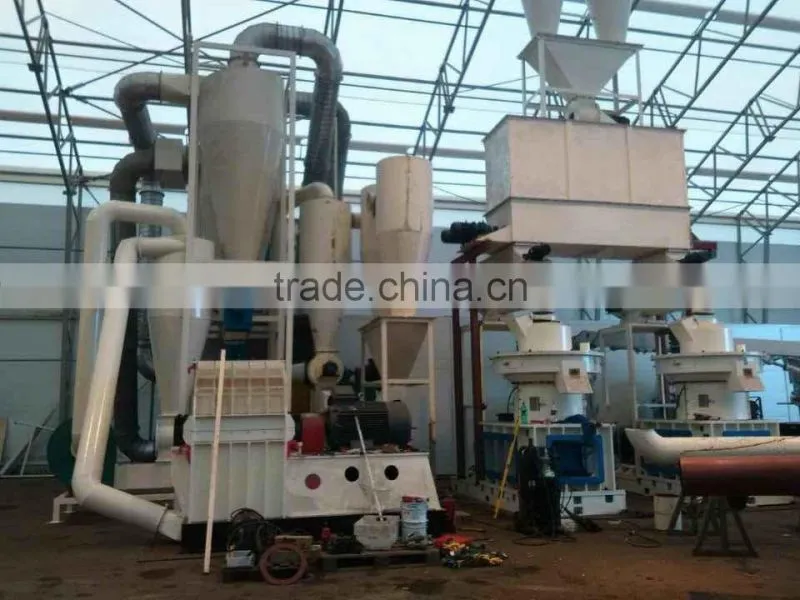

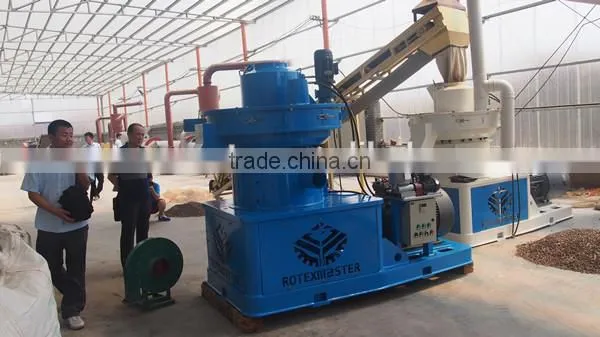

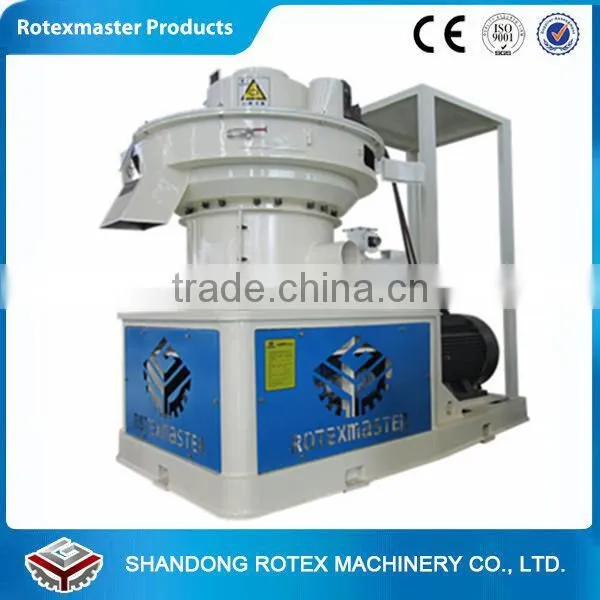

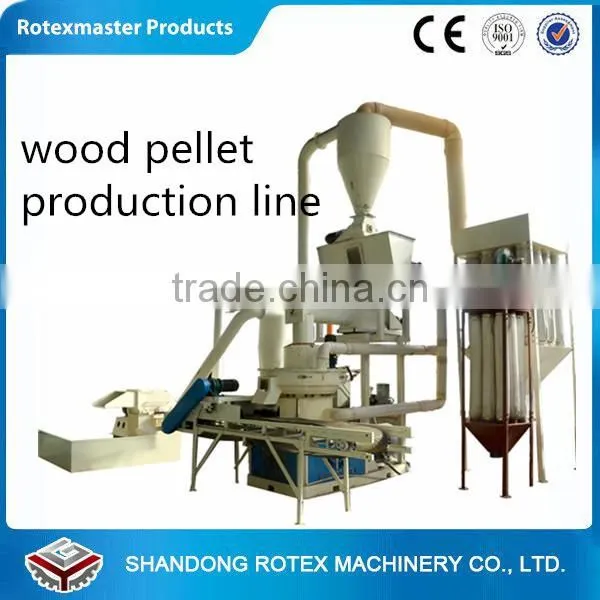

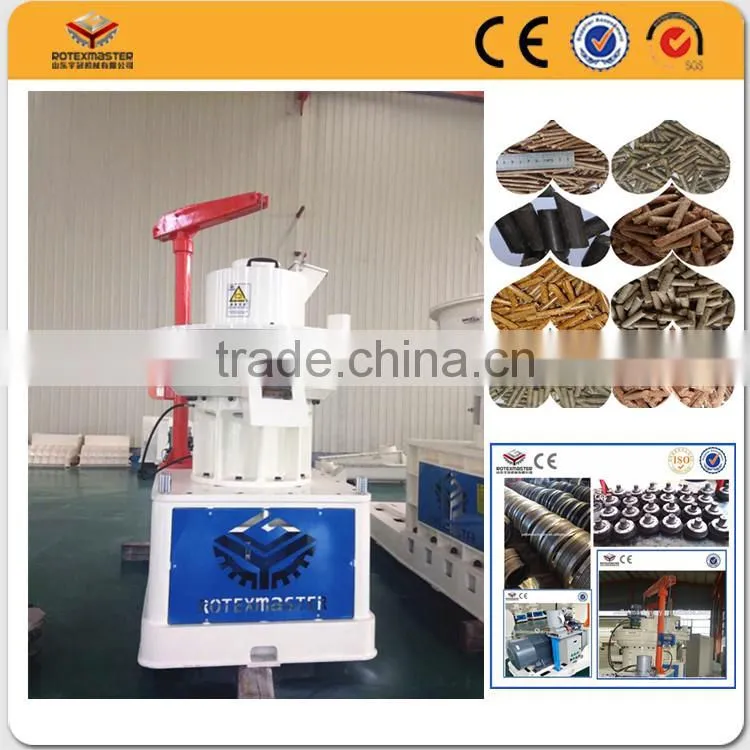

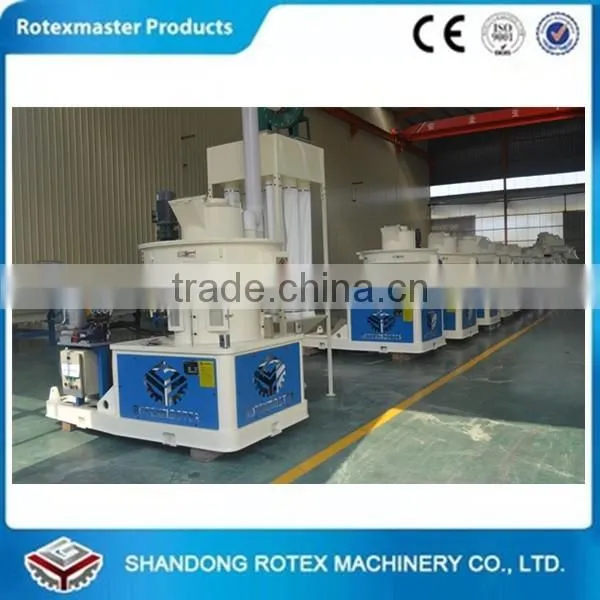

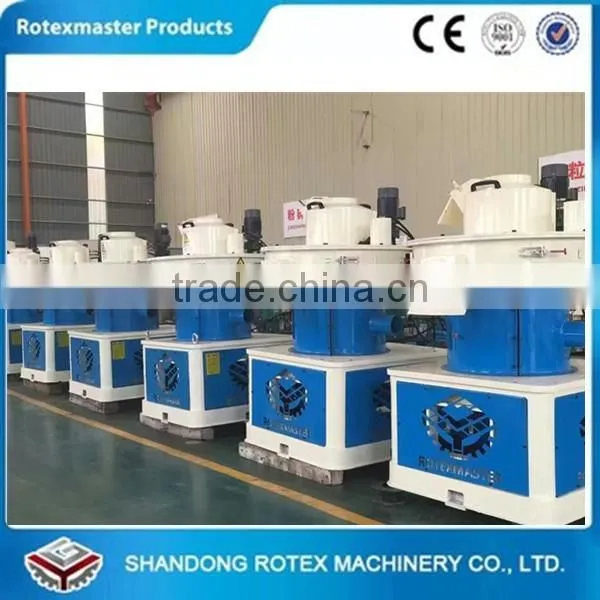

This vertical ring type wood pellet machine is used in the wood pellet production line for the biomass-energy fuels plant, power plant, wood pellet plant etc. and its advantage is obvious , compared with traditional horizontal ring die wood pellet mill machine , no matter in wood pellets quality or wood pellet capacity . so our vertical ring die wood pellet machine type wood pellet mill machine is the ideal wood pellet making equipments for wood pellet manufacturer .
our main Vertical fing die wood pellet machine is YGKJ560, YGKJ680,YGKJ850

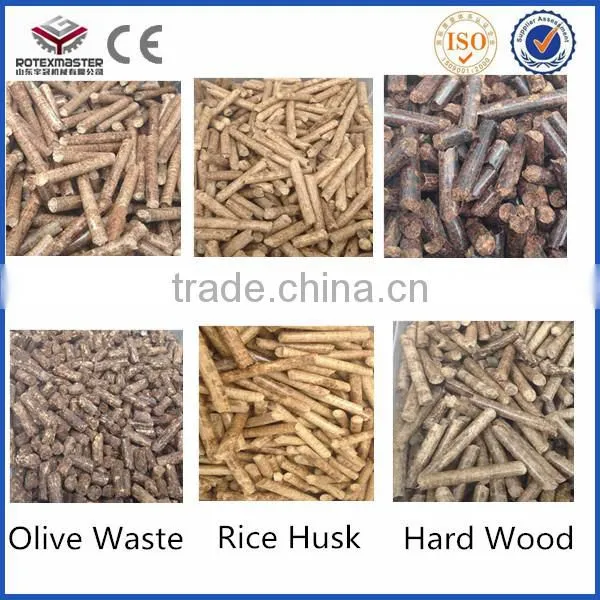

material is wide : not only wood log , or wood chips, sawdust, also can from wood residue from furniture proeduction , floor , photo frame production , and rice husk, coconut shell, olive waste , efb , straw is good material to make wood pellet
the wood pellet machine's color can be specially made
Parameter of wood pellet mill
Model |
Power KW |
Diameter mm |
Output t/h |
Dimension mm |
Weight t |
YGKJ560 |
90+1.5+0.37+1.5+0.55 |
4-12 |
1-1.5 |
2600*1300*2300 |
5.8 |
YGKJ680 |
160+1.5+0.37+1.5+0.55 |
4-12 |
1.5-2.5 |
3300*1500*2300 |
8.5 |
YGKJ850 |
220+3+0.55+2.2+0.55 |
4-12 |
2.5-3.5 |
3800*1830*3080 |
15 |

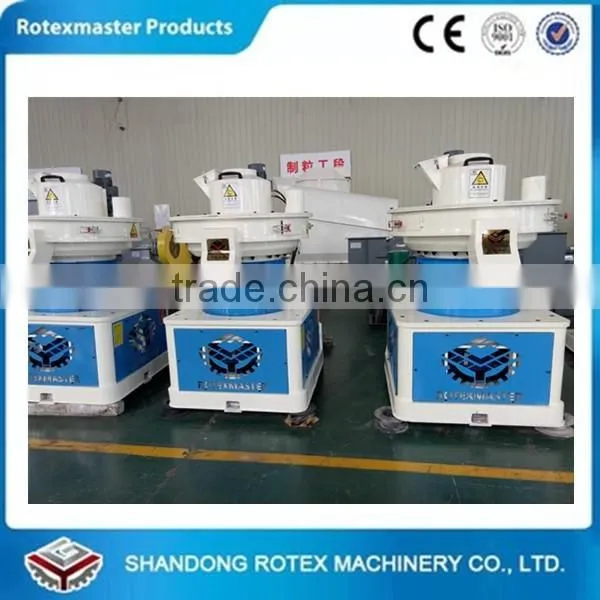

Rotexmaster wood pellet machines
we are original , imitated by other supplier
the Rotexmaster wood pellet machine has these features
there are so many suppliers , every one claim their wood pellet machine is good ,
how to justify good quality wood pellet machine and why choose our pellet machine, please refer to the followings :
1.Unique design adopt the essence of horizontal ring die and flat die wood pellet machine
(1) our vertical ring die type feeding is naturally with force, sawdust in the pressing room can be evenly pressed .Never ouccur materail block without wrong operation and the bearings in the main shaft is wear-resistant,avoid the bearing break because of over press. and wide use. even hard wood is easy for our machine because of enough press force
(2)capacity is 1-1.5t/h, with power 90kw, not 110 kw, and capacity also is decied by raw material , if raw material is corn straw , grass , it can reach 1.8-2t/h , if it is grinded rice husk , capacity also can reach 1.8t/h ,if is our usual wood , capacity is 1.2 or 1.3t/h ,if u use stainless steel, it can reach 1.5t/h .

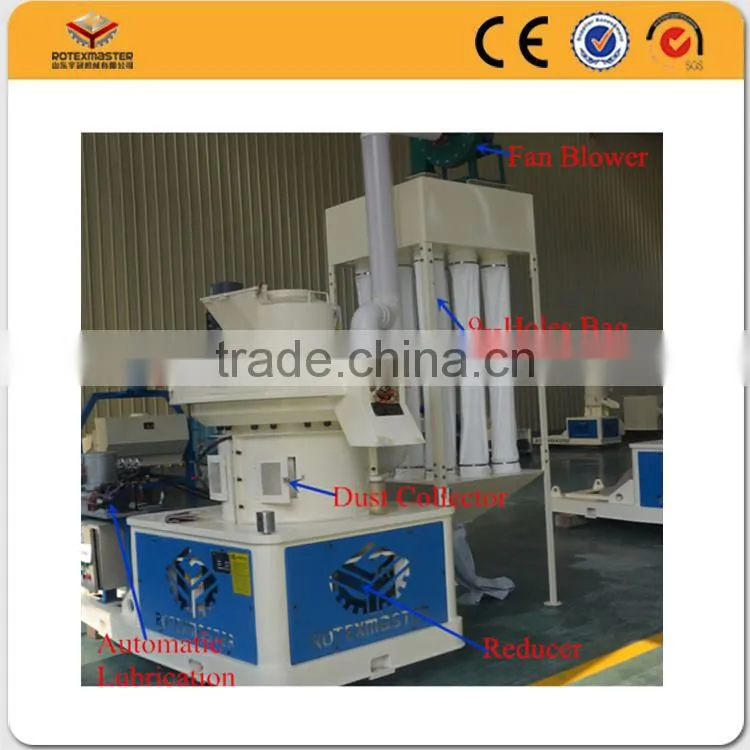

2..more design details .
(1).the cooling system, as u know , the finished wood pellets has a 80-90 high temperature , and when thre is high temperature heat in pressing room , we adopt fan bolwer cooling system to draw out these heat , so when the wood pellet go out , its surface is smooth wihtout water
(2).The oil pump, 20-24 hrs working ,lubricate the bearing per half an hr automatically. Ensure machines works continuously, also protect bearings efficiently , longer their service life
(3).Bag dust collector, dusting collecting room, dedusting function, keep working environment cleaner.
(4).reducer transmission, stable and enough power for pellet machine running. as regard to reducer transmission , compared with gear transmission , which is better, our reducer is from guomao , it is a international stake company, the reducer has 3-times reduce, from 1490r/min to 75r/min, ensure the transmission accurancy ,and the motor is 4 -grade motor, save electricity consumption compare with 6 --grade motor
the pressure between roller and die is enough to press the hard wood materail. improve formation, 98.6% and the pellet density can reach EU standard , is 1.1-1.3kg/m^3, bulk density is 650-750kg/m^3

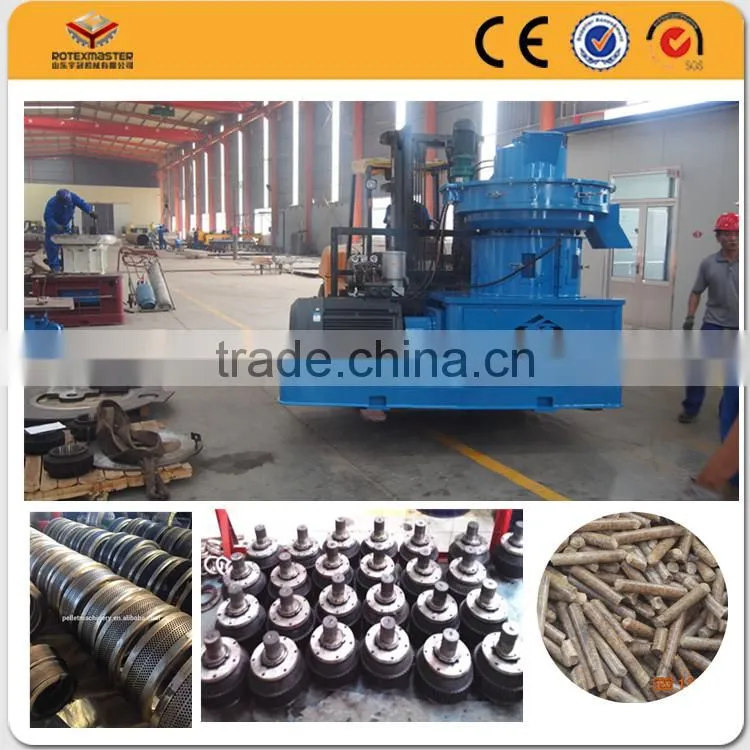

(5). the main parts die .roller , the die and roller are stainless steel or alloy steel, after heat treatment, more wear resistant ,
our stainless steel die service life is 1000-1500hrs , some supplier exaggerate 3000-4000hrs, and our die material is specially ordered from 100% zhengchang (famous die brand in china )then heat treatment, process to smooth .
we have 2 rollers. if 4 rollers can improve capacity ,what affect capacity ?
(power , die smooth and press ration design ,press room area, gap between die and roller, so 4 rollers will not improve capacity so much, in contrast, it add your ewear part cost.
(6)strong structure , as our wood pellet machine body steel is bought from Jigang ,Laigang, famous factory in China, eg. Vertical ring die wood pellet machine 5.8t. working no rotate , safety.
(7 )our motors are Siemens Beide (siemens branch in china )motor ;and the reducer Guomao(stake international company ).
(8)the bearings in our wood pellet making machine with factory price is Haerbin standard (No 1 in china for 30 years)
if u want to SKF, we can equip for u
(9)the electric parts is Delixi
3. the skilled workers and experienced R&D engineers, the advanced facilities are quality guarantee, ensure high accurancy so that our machines of high efficiency and low wearing.
special after sale service team is your gurantee.
4. on time and fast delivery time. our delivery time is 25-30 days .as the local voltage may be different from china :380v,50hz, 3 phase. we have cooperation with Siemens( Beide) , they will has a longer delivery time for motor compared with 380v, 50hz, 3phase . and our delivery time is made according to our manufacturing tasks , in addtion ,the die's whole process (order from zhengchang, process, heat treat , process again ) need time, it is impossible to delivery machine in 15 days, if u want a good quality machine .

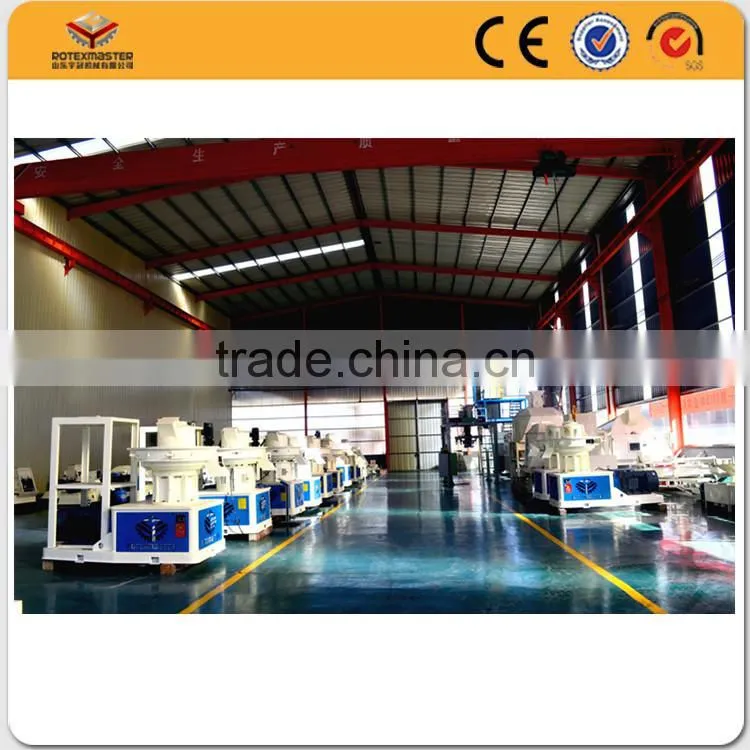

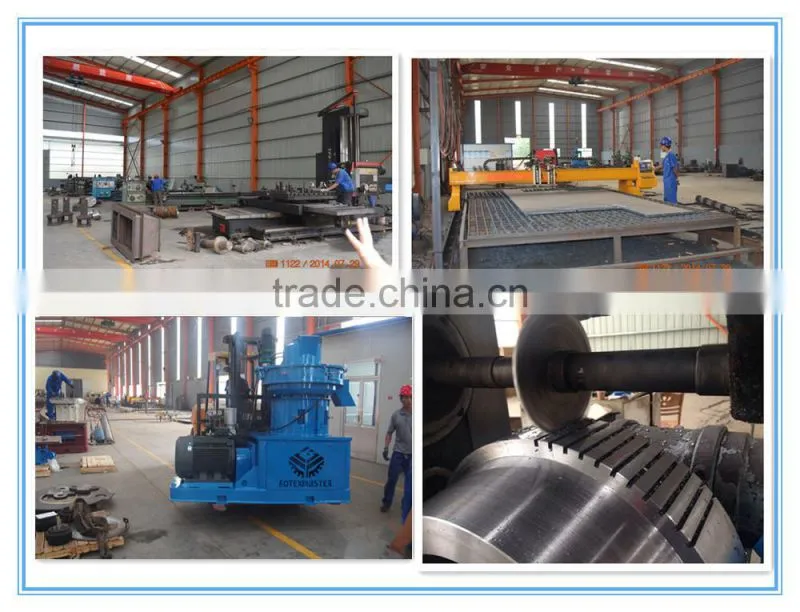

we are Shandong Rotex Machinery , one of the top and fast developing manufacturers in China
CE ISO Patent , reliable quality , with better price and service
1.wood pellet machine and related machines, maily including wood crusher , wood chipper , hammer mill etc
2.animal feed pellet machine and related machinery ,including the feed grinder , mixer
3.fertilizer machine
1. professional guide
2. engineers available to service machinery onverseas
3. warranty 1 year , except for wear parts
fessional after sale servive team , solve your problems
Q1: what is the raw material to make wood pellet , if any requirements for the raw material?
A1: raw material ca be wood waste , shells, tree branch , straw, stalk, bamboo, etc including fiber .
the raw material is no limitation , but the direct material to make wood pellet is wood powder ()not more than
8m), and mositure is 12%-20%,
so if your material is not wood powder and moisture is more than 20%,u need other machines, such as wood crusher
,wood hammer mill and dryer etc
Q2: if your wood pellet machine can make EN plus standard pellet ?
A2:yes, our veertical ring die wood pellet machine can make density 1.3kg/m^3 wood pellet , mositure is 8% , ash
<1%(decided by raw material)
Q3: will u install the wood pellet line overseas ?
A3: yes, we have 6 installation teams, they have experience in installation in overseas
Q4:How can I visit your company ?
A4: our company is near Jinan International Airport and Jinan Train Station , we will pick u up when u arrive in
Jinan city
