Brief introduction of animal feed processing plant pellet machine

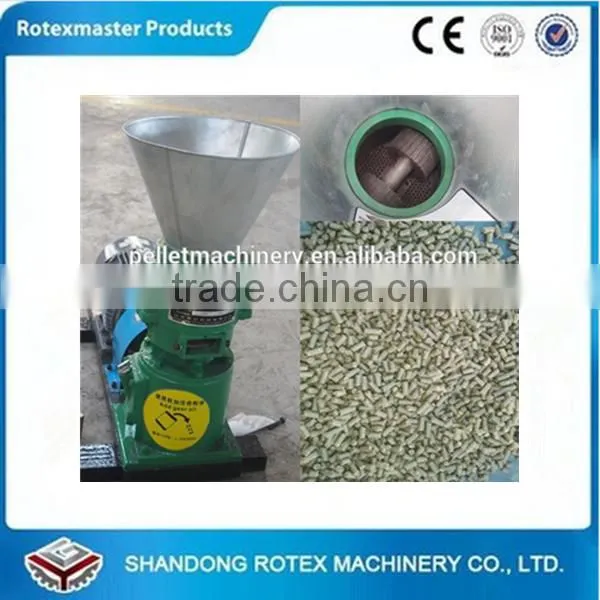

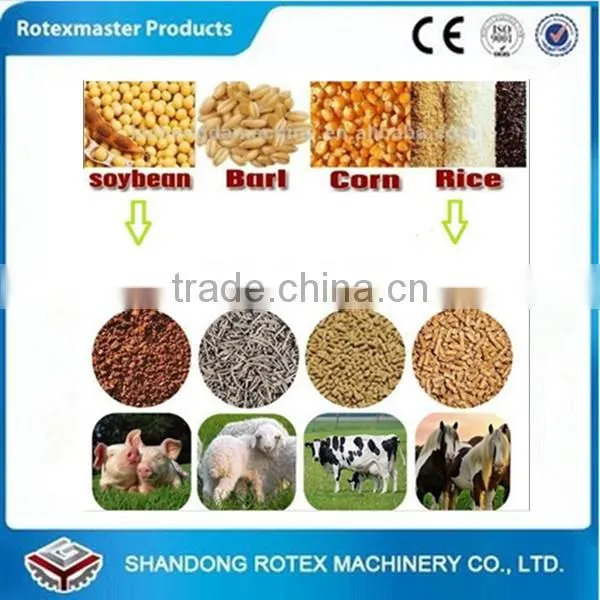

Flat die feed pellet machine is specially designed for processing feed pellet such as chicken, duck, fish, pig, horse, cattle, sheep, dear and ostrich etc.
Application fields of animal feed processing plant pellet machine
It is widely used for home, small or medium farm.
Advantages of animal feed processing plant pellet machine
1: it can be powered by both diesel engine and E-motor
2: it adopts Basin angle tooth transmission.
3: no water be added, dry pellet can be kept for 6 months.
4: harmful germs are killed by the high temperature when pelleting
5: various size die diameter to fit for different growth period of poultry.
The technical parameters of YGKJ series animal feed processing plant pellet machine
Model |
Power |
Pellet size |
output |
Outer dimension |
Weight |
YSKJ120 |
2.2-3 |
Ø2-Ø6 |
80-100 |
600*450*900 |
50 |
YSKJ150 |
4 |
Ø2-Ø6 |
100-300 |
750*450*870 |
100 |
YSKJ200 |
5.5-7.5 |
Ø2.5-Ø8 |
300-500 |
1150*530*750 |
150 |
YSKJ250 |
11-15 |
Ø2.5-Ø8 |
400-700 |
1250*600*850 |
200 |
The technical parameters of YMKJ series animal feed peocessing plant pellet machine
Model |
Power |
Pellet size |
output |
Outer dimension |
Weight |
YMKJ250 |
18.5 |
Ø2.5-Ø8 |
400-700 |
1250*600*850 |
400 |
YMKJ-300 |
22-30 |
Ø2.5-Ø20 |
300-400 |
1300*600*900 |
580 |
YMKJ-350 |
30-37 |
Ø2.5-Ø20 |
400-500 |
1650*800*1350 |
800 |
YMKJ-400 |
45 |
Ø2.5-Ø20 |
500-600 |
1700*800*1450 |
1000 |
YMKJ-450 |
45-55 |
Ø2.5-Ø20 |
600-800 |
1700*800*1450 |
1300 |
YMKJ-550 |
75 |
Ø2.5-Ø20 |
1000-1500 |
2350*1000*2050 |
2200 |
YMKJ-800 |
90 |
Ø2.5-Ø20 |
1500-2000 |
3200*1235*2700 |
3800 |

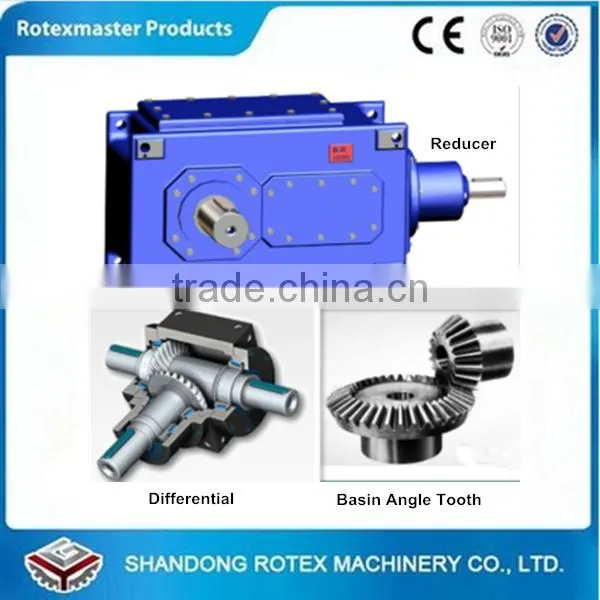

The speed transmission of animal feed processing plant pellet machine
YSKJ series adopt differential and basin angle tooth transmission
YMKJ series use reducer transmission

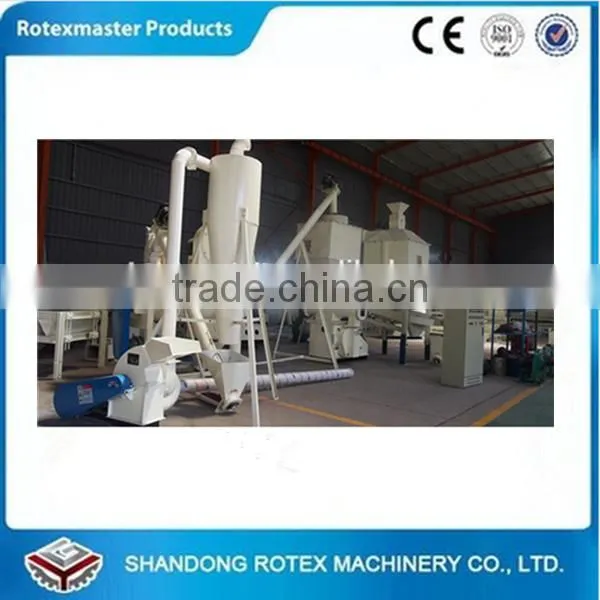

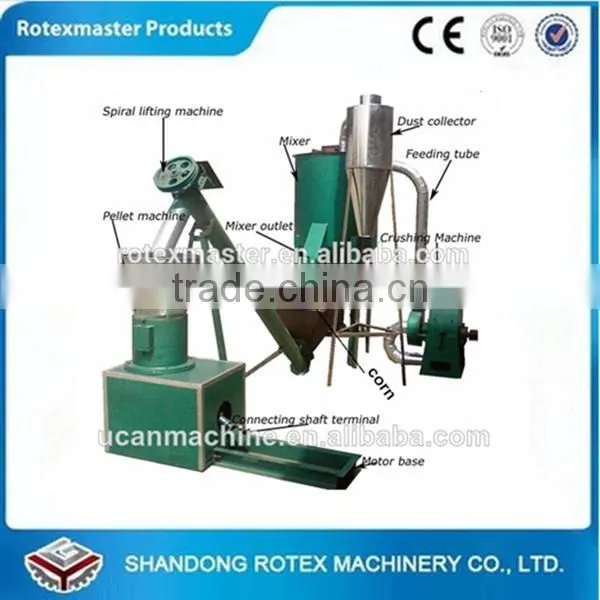

The production line of animal feed processing plant pellet machine
FAQ of animal feed processing pellet machine
1. What capacity do you want for an hour?
2. What are the raw materials do you want to make pellets?
3. What kind of animal do you feed for?
Different animal suitable for different pellet diameter,
such as for chicken, pig, 2-4mm diameter
for fish, 1.5-3mm diameter
for rabbit, 2-5mm diameter
4. What is the diameter do you want for the finished pellets?
5. What is the grass proportion?
grass powder proportion can not larger than 50%.
6. what is the material moisture?
raw humidity keep 15%-20%
7. What is the industrial voltage there?
China is 380V 50HZ 3PHASE. Pls help to confirm whether they are same.
8. Do you want a single machine or complete production line?
Company information
Shandong Rotex mechinary co., ltd, an professional manufacturer in boimass fuel machinary for 8 years, with main products: wood pellet machine, feed pellet machine, drum wood chipper and hammer mill, rotary dryer, cooling equipment and other auxiliary equipments.
Our team
Our Service:
Pre-purchase service: design suitable plan for you according your material shape, size and moisture content. with less cost but biggest efficiency.
During-purchase service: control quality, delivery intime
After-purchase service: if you ask, technicians will be sent to your place to guide installation and degug and train your operator.
Certificates
Our global customers

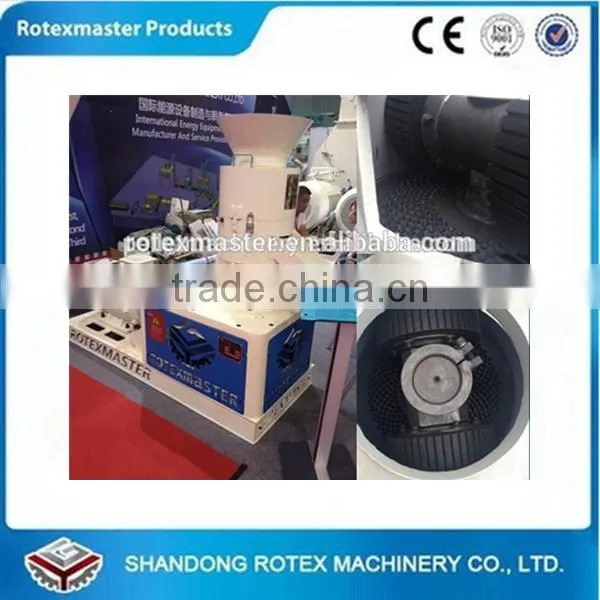

Exhibition
If you have any interest, please sent enquiry to me for better help i will offer you.
