[ROTEX MASTER] Factory Supply Pellet Making Pelletizer Machine for Chicken Cattle Rabbit Feed With Gear Driven

YHKJ350 pellet making pelletizer machine for chicken cattle rabbit feed

Ring Die Poultry/Livestock Feed Pellet Machine Brief Specification:

(1) The ring die feed pellet machine is widely used in large, medium and small-scale anmial feed pellet production plant.

(2) Crushed powder feed with moisture about 15%-20% can be granulated,so the feed pellet is easier to store.

(3) The ring die feed pellet machine simple structure,wide adaptability, small footprint, low noise.

(4)The ring die feed pellet machine can very good to keep all kinds of  trace elements in raw materials, good palatability, animal feed intake, conducive to digestion and absorption.

(5) The ring die feed pellet machine processing of the material and the appearance is neat, smooth surface, density is big, easy to store and transport.

Professional Ring Die Feed Pellet Mill Machine Main Model:

Ring Die Poultry/Livestock Feed Pellet Machine Use Steam Conditioner,Have Follow Advantege:

1. Steam conditioner make aging treatment on powder feed material.

The ability of most animal digestion of starch is very low, but easy digestion of cooked starch, conditioning device to make the feed material under the action of heat and hot water, starch gelatinization degree increased significantly, but also promote the material thermal denaturation of protein, denaturation of protein by enzymatic hydrolysis easily, thus improves the digestion of pellet feed utilization rate.
2. Steam conditioner for sterilization processing powder feed material.

Most harmful pathogenic bacteria such as e. coli and salmonella bacteria, not heat-resisting, the conditioning device for material under a certain temperature conditioning can kill the bacteria, guaranteed to feed hygiene standards, through the conditioning device for material sterilization method compared with drug prevention, has the advantage of low cost, no pollution, no drug residues and side effects, etc.
3. Steam conditioning equipment can significantly improve the pellet feed water resistance.

In the process of quenched and tempered by through the role of the heat and water vapor, viscosity of the material components manufacture gelatinized starch, modified protein can give full play to the adhesive for bonding around other components effectively, in pressure die roll extrusion With the particles and particle together more closely, to make it more dense granule feedstuff, appearance is bright and clean, not in the process of breeding Vulnerable to water erosion and increase the stability of the water.
4. Steam conditioning equipment can improve the feed pellet granulating efficiency, increase production capacity,save the energy consumption of the granulating, improve the use life time of pelletizer ring die and roller.

By steam conditioning,feed material softening, more flexible,on the inner wall of the ring die,die and roller appearance of extrusion process, the friction force is reduced,Avoided in the granulating process a large amount of mechanical energy into heat energy, and slows down the ring die and roller wear and tear.

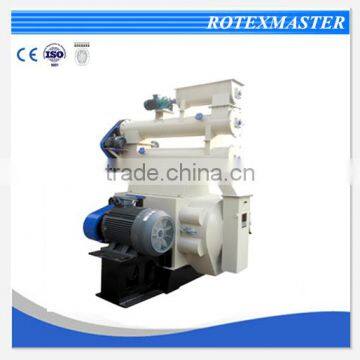

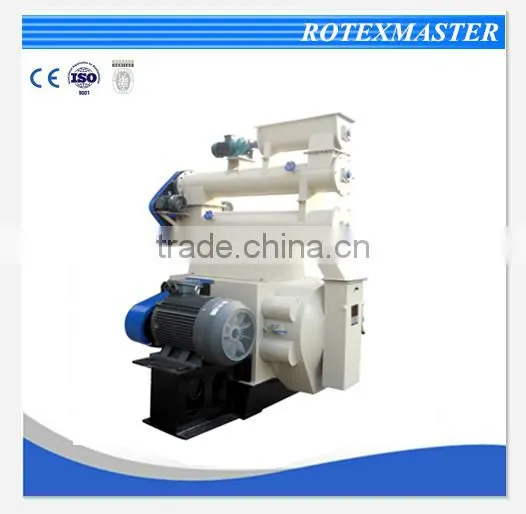

Ring Die Animal Feed Pellet Machine Pictures Display:

Ring Die Feed Pellet Mill Production Line With Feed Conveyor and Conditioner Device:

Full Automatic YHKJ320 Ring Die Feed Pellet Production Line Production Process:

Feed Pre-cleaner → Hammer Mill → Feed Mixer → Ring Die Feed Pellet Mill →Steam Boiler System→Pellet

Cooler → Rotary Screener → Pellet Crumbler → Automatic Packing System,etc. >>>(Click Picture See Details)

Full Automatic YHKJ250 Ring Die Feed Pellet Production Line Production Process:

Hammer Mill → Feed Mixer → Ring Die Feed Pellet Mill →Pellet Cooler →Screener

>>>(Click Picture See Details)

Feed Pellet Raw Material Can Be Grain Or Straw:

1) cereals:soybean,  maize,corn,  grain,sorghum,corn flour , wheat flour ,

    crop stalks (corn stalk, sorghum stalk, cotton, rape stalk, peanut seedling, sunflower stalk), c

    haff, grasses, shrubs,

2) Coarse fiber: wheat bran, corn stalk, soybean meal,grass meal,rice husk, grass, groundnut shell,

     cottonseed hull

3) Additives: molasses, vegetable oil, Amino acid, bone meal, vitamin

Single Pellet Machine Wooden Box Package,Production Line Load By Container:
