Wood Sawdust Straw Pellet Processing Line For Biomass Fuel

Wood Sawdust Straw Pellet Processing  Line For Biomass Fuel

Skype: machine16_2    Mobile: +86-13165142200

1. Wood Pellet Machine is our main product which has adopted the essence of pellet mill in
oversea market.

2. Wood Pellet Machine has filled the country blank in vertical feeding for ring die pellet mill
and reached the international advanced level.

3. Wood Pellet Machine is mainly applicable for difficult molding materials with low adhesion
rate,for example rice husk, sunflower husk, peanut shell and fruit shell; branch, stem, bark
and other wood waste; a variety of crop stalks; rubber, cement, ash and other chemical materials.

4. Wood Pellet making Machinery can be used in feed mill, wood processing plants,fuel plants,fertilizer plants, chemical plants etc.
Since it requires less investment and yield quicker result and that no risk,Vertial Ring-die Wood Pellet Machine for sale is an ideal dense compression molding equipment.
5.Stem Leaf Trimming Husk Skin Shell Fiber Coir Meat Powder Chip Kernel Seed Flakes Meal Pellet Briquette Fines Rind Peel residue Hull Dust Shavings Scrap Bulk waste Straw Cob Peel Kernel Fiber Forage Dust Rind Flake Powder oil, Feed stocks Wheat straw Waste rice straw Corn cobs Municipal solid waste Wood waste Corn cobs Wood waste Wood chips Sweet sorghum Citrus peels Energy crops Cane Chinese tallow Copra Hemp Maize Miscan thus Oil palm Rapeseed Sorghum bicolor Soybean Stover Sugarcane Sunflower Cash_crops jute coffee cocoa sugar cane bananas oranges cotton corn wheat soybean, a mix of clover, corn, barley, bran (skin of wheat), oats, soya bran/flour (skin of soya), and traces of vitamines, minerals, marble powder and phosphoric calcium.

Features >>>

1.vertical die ,feeding vertically;No arching of raw materials ,easy for heating dissipation
2.wood pellet machine adopts double-layer dies ,up and down dual-use ,high capacity ,saving energy
3.die fixed,rollers rotating ,materials centrifugal ,evenly distributed around
4.independent lubrication;high pressure filtration ,clean and unlocked.
5.wood pellet machine adopts independent and frequency changeable cutting device ,ensure formation rate of pellets.

Pelletizing is the process of making waste materials into solid fuel. The objects are used for burning purposes. Wood pellet can be made from any type of agro-forestry waste: groundnut shell, sugarcane bio-gases, caster shells/stalk, saw dust, coffee husk, paddy straw, sunflower stalk, cotton stalks, tobacco waste mustard stalk, jute waste, bamboo dust, tea waste, wheat straw, palm husk, soybeans husk, coir pitch barks/straws, rice husks, forestry wastes, wood chips and many other agro wastes.

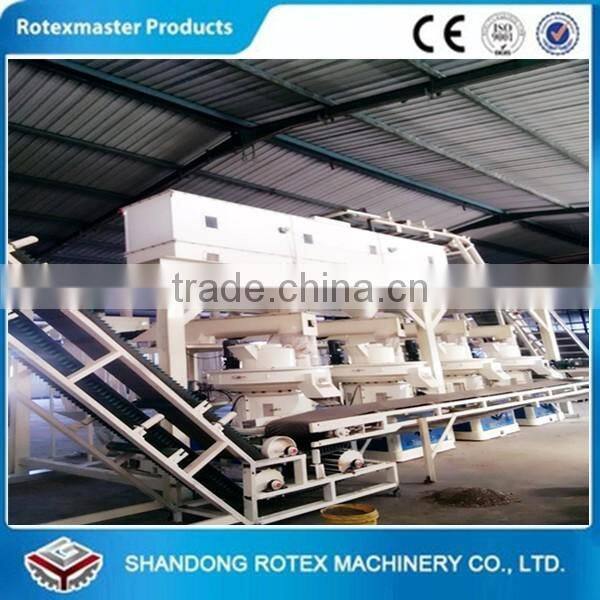

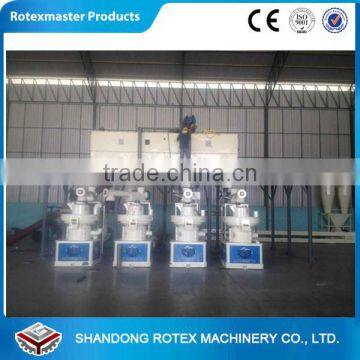

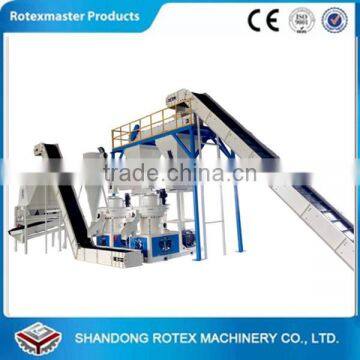

Production line >>>

1. Crushing Process:

Depending on the different input material, we fit out the suitable Crushing machines. If the raw material is the Straw Baler, we developed the series hammer mill. If the raw material is big logs with diameter less 300mm or big timber cutter, our wood chipper is your best choices, the chips is 1-3cm, than you can use a hammer mill to be sawdust. the size of sawdust should be smaller than the size of finished pellet diameter .

2. Drying Process:

The best moisture content to pelletizing is about 12-15%. we select dryer according to your raw material, if your raw material is small, light and easy to dry, we will recommend you our air-flow dryer; and if your raw material is big, not light and hard to dry, we will select our rotary dryer for you. about the hot air stove, you can burn fuel, such as wood, sawdust and so on.

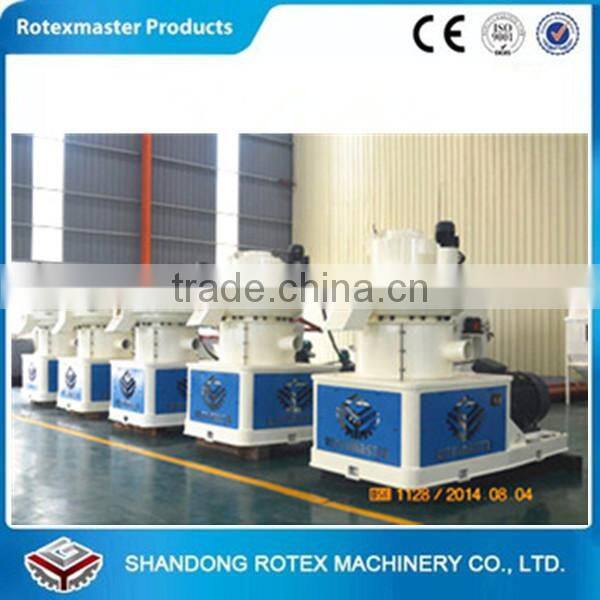

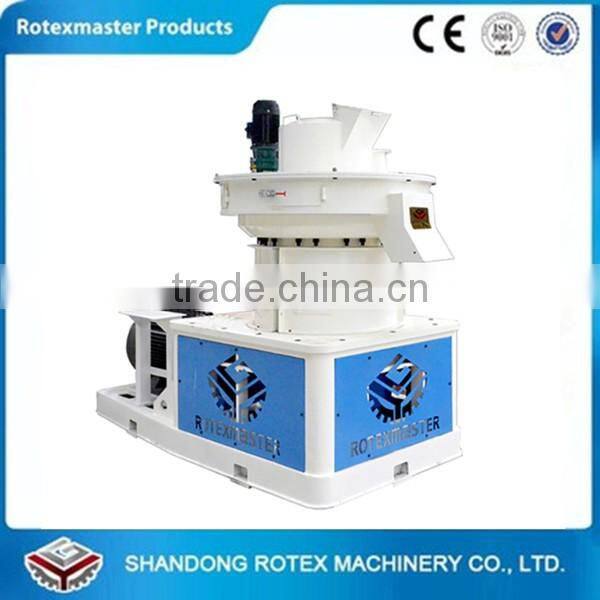

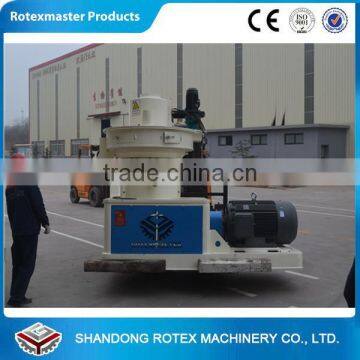

3. Pelletizing Process:

YXGJ series wood pellet machine is our patent product which has adopted the essence of pellet machine in oversea market. The heart parts"double layer die" has unique structural assembly and "rollers"are made of high wearable alloy materials, and they are with low energy, high efficiency, long life and so on. XGJ series new type pellet machine has filled the country blank in vertical feeding for ring die pellet mill and reached the international advanced level.

4. Cooling Process:

After the pelletizing process, the temperature of the wood pellet is about 60-80 degree, and the moisture content of the wood pellet is about 15%, so we need use Cooler to reduce about 3-4% moisture, such this the wood pellet is easy to store.


5. Packing Process:

After cooling, the wood pellet will not directly enter into the fuel process, avoiding the wood pellet affected with damp. The packing process is necessary. we have two kinds of packing machine, one kind is heat sealer, the other one is automatic seam, according to your requirement.

Packaging : Seaworthy package  It 's on base of the  actual situation .

Shipping :  Maritime and rail transport .

Delivery time : 25-35 work days

1.Before-sale services: We guide customers to choose the best applicable device type and provide the advanced, energy-saving and practical technological process.

2.sale services: products must be inspected strictly before sell,customers would be invited to simulate and test the machine , and present advice.
3.After-sale service:our company will send professional engineers to guide installation,debugging and training operators until customers are fully satisfied.

 Shandong Rotex Machinery Co., Ltd is an enterprise combined of science and technology, which is specialized an manufacturing and installation training and international trade. Especially in the energy shortage today, starting from customers' interests, standing in the perspective of customers, to provide our customer the best service, we should like to use our professional knowledge and design the most suitable chart flow and produce the best much better products.

We are doing biomass fuel machinery, fodder farming machinery, and supporting the auxiliary equipment of dryer, cooler, dust removal equipment and other machinery products, the main products: wood pellet machine, feed pellet machine, drum wood chipper and hammer mill, rotary dryer, cooling equipment, conveyors equipment and other auxiliary equipments.
