Help Center600-800Kg/h Palm Shell/fruit Wood/crop Stalk/bamboo Pellet Mill With CE, ISO, SGS
Related Products
-
5t/h Palm Shell/crop Stalk/fruit Wood/bamboo/oliva Pellet Pressing Machine for SaleUS$ 24,500 - 27,500MOQ: 1 Set -
Innovative Patented 2..5t/h Wood Pellet Forming Machine/sawdust Pellet BriquettingUS$ 24,500 - 27,500MOQ: 1 Set
-
Innovative Patents 600-800Kg/h Wood/sawdust Pelletizing/briquetting Machine With Automatic Lubrication SystemUS$ 24,500 - 27,500MOQ: 1 Set
-
1 Ton per hr Complete Used Wood Pellet Production Line PriceUS$ 25,000 - 28,600MOQ: 1 Set
-
Rotexmaster High Quality Alfalfa Cube Machine for Biomass Pellet Making Machinery PriceUS$ 25,000 - 28,600MOQ: 1 Set
Brief introduction of boimass pellet making machine
Vertical ring die pellet machine is a new biomass fuel production machine, which absorbed the strong points of horizontal ring die and flat die pellet machine.
Application field of boimass pellet making machine
It is used in crush sawdust and bran from eucalyptus, pine, birth, poplar, fruit and agricultural straw and bamboo.
The advantages of boimass pellet making machine
1: ring die, vertical feeding, no arching and no block, easy cooling.
2: die is static, rollers rotate, material are evenly distributed in pelleting room because of centrifugal force.
3: double- layer dies, high efficiency, cost and energy saving.
4: automatic lubricate, air cooling and dust removal, no stop during 24 hours in 1 day.
5: frequency conversion discharge device, high formation rate of pellet ( more than 99%).
Picture of boimass pellet making machine
Technical parameters of Vertical ring-die pellet mill
Model |
Power(Kw) |
Pellet diameter (mm) |
Output capacity (t/h) |
Weight (t) |
External Dimension (mm) |
YGKJ560 |
90+1.5+0.37+1.5+0.55 |
Ø4-Ø12 |
1.0-1.5 |
5.8 |
2600*1300*2300 |
YGKJ680 |
160+2.2+0.37+1.5+0.55 |
Ø4-Ø12 |
1.5-2.5 |
8.5 |
3300*1500*2300 |
YGKJ850 |
220+3+0.37+2.2+0.55 |
Ø4-Ø12 |
2.5-3.5 |
15 |
3800*1830*3080 |
YGKJ1050 |
315+5.5+0.37+1.5+0.55 |
Ø4-Ø12 |
4.0-5.0 |
25 |
4200*2200*3600 |
The detail highlights of vertical ring-die pellet mill
Ring-die and roller of boimass pellet making machine
Motor and reducer of boimass pellet making machine
Automatic lubrication system of boimass pellet making machine
The auxiliary parts of boimass pellet making machine

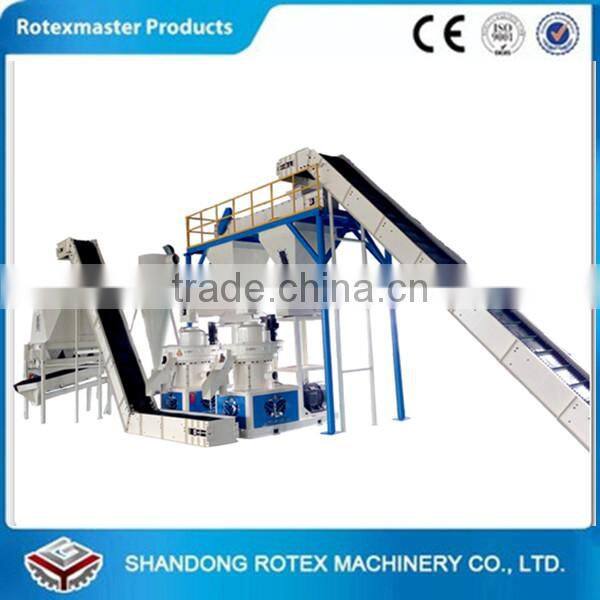

The production line of boimass pellet making machine
FAQ of boimass pellet making machine
1. what is the shape, size and moisture content of your material?
2: how many output capacity per hour/month/year?
note: if it is timber, the wood chipper will need.
if it is wood branch, twigs, or plates, the hammer mill will need
if the moisture content is over 15%, the drier will need. the suitable content is 10% -15% (moisture) for pellet mill.
so please tell me all above information, the most suitable model or whole production line on basis of resonable offer will be privoded immediately.
3: what is your warranty and lifespan of wearing spare parts?
12 months since you receiving our machine.
Wearing spare parts:
Die: two materials: alloy steel: 800-1000 hours
Stainless steel: 1000-1200 hours.
Roller: one material: alloy steel: 500-800 hours
Our Service:
Pre-purchase service: design suitable plan for you according your material shape, size and moisture content. with less cost but biggest efficiency.
During-purchase service: control quality, delivery intime
After-purchase service: if you ask,to your place to guide installation and degug and train your operator.
CERTIFICATES of boimass pellet aking machine
Company information:
Shandong Rotex mechinary co., ltd, an professional manufacturer in boimass fuel machinary for 8 years, with main products: boimass pellet making chine, wood pellet machine, feed pellet machine, drum wood chipper and hammer mill, rotary dryer, cooling equipment and other auxiliary equipments.
EXHIBITIONS of boimass pellet making machine
Contact information:
If you have any interest, pls send enquiry to me for better help for you.
