Coconut Shell Briquette Machine With AC Motor

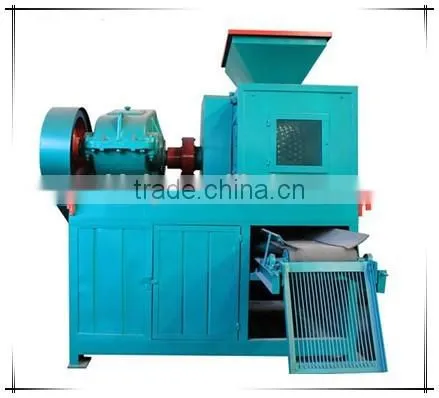

Coconut Shell Briquette Machine With AC Motor photo-1
Coconut Shell Briquette Machine With AC Motor photo-2
Coconut Shell Briquette Machine With AC Motor photo-3

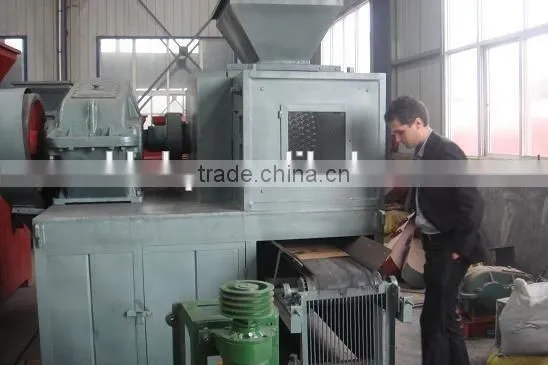

Coconut Shell Briquette Machine With AC Motor photo-4

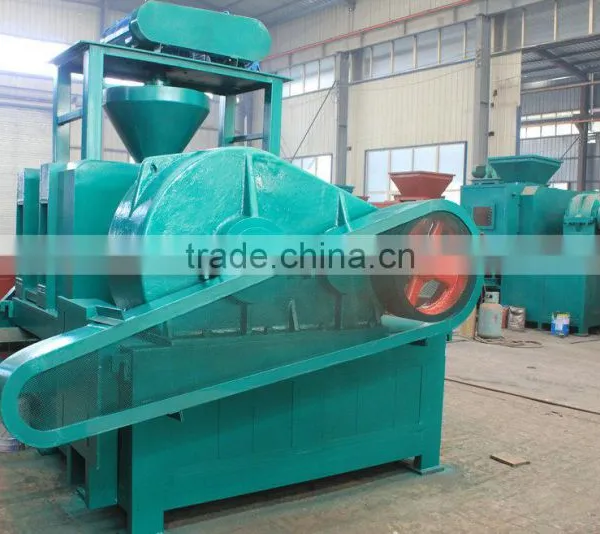

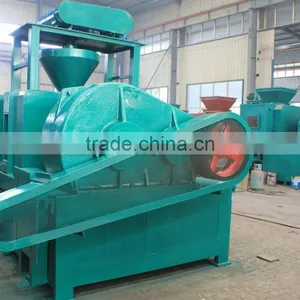

Coconut Shell Briquette Machine With AC Motor photo-5

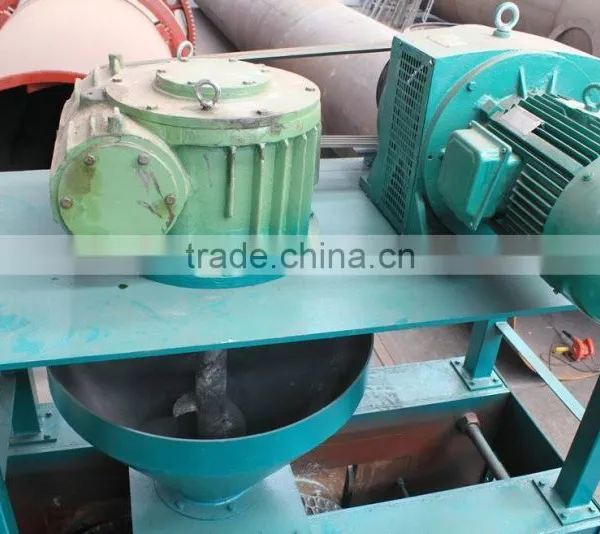

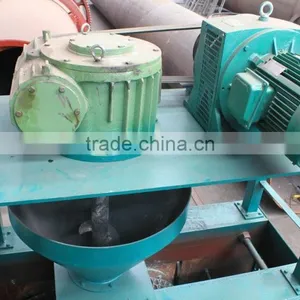

Coconut Shell Briquette Machine With AC Motor photo-6
US$ 3,000 - 10,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Henan, China
Brand Name:
zhengke
Payment & Shipping
Payment Methods:
Port of Shipment:
TianJin / QingDao / ShangHai
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Place of Origin Henan, China
Brand Name zhengke
Model Number ZKCB
After-sales Service Provided Engineers available to service machinery overseas
Product Description

Coconut shell briquette machine with AC motor

This coconut shell briquette machine are made by grinding Biomass and sawdust into a homogeneous pulp and forming this into a briquette under very high pressure. High pressure & pressing releases one of the natural components of wood - lignin which has the property of becoming liquid at high pressure (temperature) and, as it subsequently cools, it binds the wood together in its new form briquettes. After the processing of drying, compressing under the high pressure and temperature, the eco briquette making machine is characterized by high density, small in size, better combustion, capable as the substitute for the superior coal or firewood.


Component

The coconut shell briquette machine has spare parts, such as propeller, heating rings, moulding tube, and wear-resistant cover etc.

• The propeller is the core equipment to make briquette;
• The heating rings controls the optimal temperature to make briquette;
• The moulding tube is to control the final product shape and diameters.


Final Products

1.Final shape: hexagon, pentagon, round, square, hexagon with edge, pentagon with edge.
2.Final size:20cm, 30cm, 40cm adjustable
3.Final diameter:50mm, 60mm, 70mm,80mm adjustable
4.The feature of the final product : Specific gravity: 1300—1900kg/m Calorific value: 4500—5000kcal/kg

Technical Parameter
Model
Feed Inlet Size
Power (kw)
Capacity  (kg/h)
ZKCB110
<=5mm
11
100-150
ZKCB150
<=5mm
15
150-200
ZKCB185
<=5mm
18.5
200-300
ZKCB220
<=5mm
22
300-400
Working Principle

The motor transfers the power to the transmission through triangle belt, then the output shaft on the transmission transfers the power to the propeller shaft, finally the propeller on the propeller shaft pushes the coal powder into the mould and out, then the ideal high pressure coal rod is generated. This process is very simple, and it's easy to operate.

Production Line
Our Company

About us

Zhengzhou Kehua Industrial equipment Co.,Ltd is a trustworthy and specialist designer and manufacture of series rotary dryer equipment and briquetting machine.

Following the concept of "Service marketing", our company will advance as usual and fully utilize various advantages in resource, talent and R&D so as to offer quality service to customers with perfect products, quality.

Cooperator

Our products have been widely sold in over 20 provinces and regions in China and are exported to Malaysia, Thailand, Philippines, India, Northern Ireland of United Kingdom, United States, Australia, Indonesia, Israel, Egypt, Oman, Moldova, Kazakhstan, South Africa etc. Our products are popular in the field and are well accepted by new and existing customers.

Certificates
