Charcoal Powder Briquette Production Line/charcoal Coal Briquette Machine
Charcoal powder briquette production line/charcoal coal briquette machine
Brief Introduction

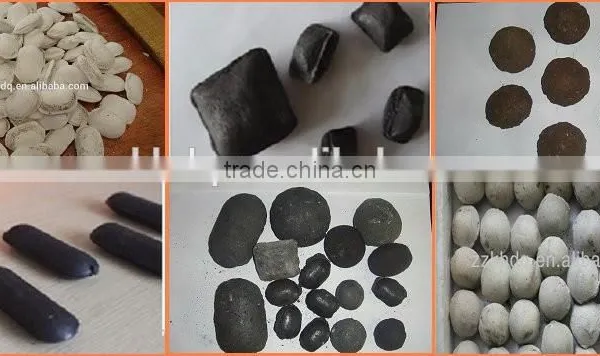

charcoal powder briquette production line/charcoal coal briquette machine widely used in coal industry and metallurgy industry. It can press various powder materaisl into briquettes, and the shape can be design to round ball shape, oval shape, oblateness shape, elongated shape, square shape etc.

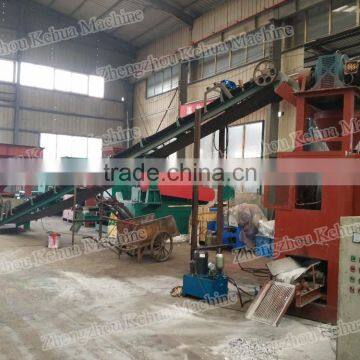

Raw materials - Dosing Machine-Mixing Machine(Using with Binder)-Ration Silo-Briquette Machine-Rotary Dryer-Brqiuettes(Final products)
A: If your raw material is big block, you should choose a crusher.
B: Generally, it is better to add some binder/adhesive into the raw material.
C: about conveyor, you can buy from us, also can make by yourself. We would like to supply the information of conveyor for you.
Detailed introduction
- Vertical Crusher
This series of combination crusher is promoted on the basis of the same kind of crusher. It adopts the most advanced technology at home and aboard, and optimizes the main technical data. As a new type crusher for fine crushing and coarse milling. It is widely used in briquette, casting, refractory materials, building materials, chemical, metallurgy etc. Industries.

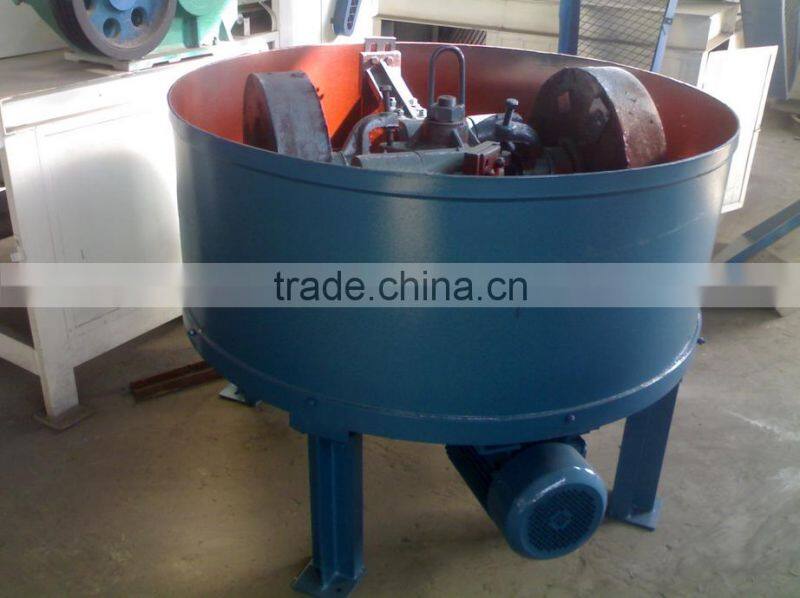

- Wheel Mill
Wheel Mill is crushing & blending materials equipment which mainly made up of grinding rollers & grinding plate. Widely used for mixing & blending coal, mineral powder, iron powder, oxidation iron, with the good effect on mixing & blending.
- Ration Silo
We have different type ration silo, which can be used for transferring the raw materials fed outside to the next process equipment uniformly according to the specific volume and speed. Meanwhile, It plays a role of passivation in briquetting producing line, which improve the briquetting effect.

Ration Silo Double shaft Mixer
- Double Shaft Mixer
Double shaft mixer is used for mixing materials continuously & uniformly. During mixing the materials can be uniformly mixed with binder, after mixer; the blended materials can be continuously sent to the conveyor, transmit to the next equipment. Double shaft mixer is used for coal, coal slurry, fly ash, sludge, mineral powder, clay, oxidation iron.
Model | Power (kw) | Capacity(t/h) | Dimension(L*W*H) (mm) |
ZKM2500 | 11 | 5-10 | 4200×1600×650 |
ZKM3000 | 15 | 10-20 | 5200×1600×650 |
ZKM4000 | 18.5 | 15-30 | 5750×1700×870 |
ZKM5000 | 22 | 20-50 | 6750×1700×870 |
- Briquette Machine
Briquette machine can press various of materials into different briquette. The briquettes can be designed to oval shape, square shape, oblateness shape, elongated shape, round ball shape etc. There are different type of briquette machine can meet your demands.

Mechanics Briquette Machine Hydraulic dry powder briquette machine
- Rotary Dryer
Rotary dryer mainly consists of drum barrel, roll ring, wheel gear, lifting board, chain, reduction gears, and motor etc parts. It is matched with conveyor, dust remover and draught fan etc equipments. It has features of reasonable structure, excellent fabrication, high production, low consumption, economical & environmental etc.
Company Introduction
- About Us
Zhengzhou kehua industrial equipment co., ltd, which is a professional manufacture of complete set of briquetting equipment, series briquetting machine/briquetting press, briquetting drying machine, rotary dryer, vertical dryer, mesh belt dryer, chain plate dryer and other machines.
- Our Service
1. Design reasonable proposal of briquetting line according to your detail requirements (material type, density moisture content, size, capacity) at the most competitive price. We can suggest the dry briquetting process based on your materials a performance and your special demand.
2. Specialized drawings are designed for you.
3. Inform detail shipping information for you in time.
4. When installation, give detail instruction. Clear operation manual.
5. Excellent after sales service. Reply your confusion in time.
- Our Certification
In recent years, our company gradually develops and strengthens, and we took the leading position to obtain ISO9001 international quality system management certification in2002. It also has established a perfect enterprise product quality inspection system, in order that ensure that the product conforms to the quality standard.
If you are interested in our product, please contact me at any time.
Address:Heluo Road, Gongyi, Zhengzhou City, Henan Provice, China
Tel:86-0371-69576958
