Specifications
10 ton per hour wood chipper:Factory price,
High output capacity,
The raw material is log.
Diesel or electrical engine.
1710 bamboo pellet mill CE is detailed as follows:

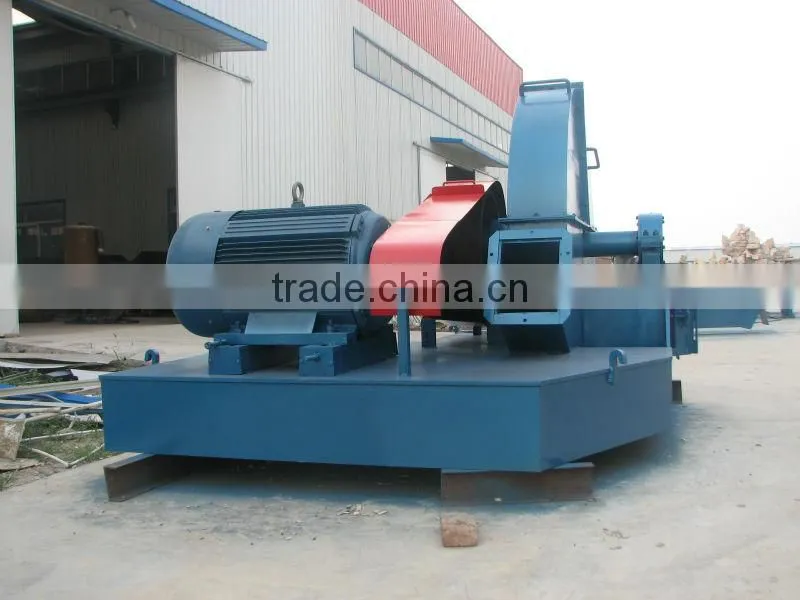

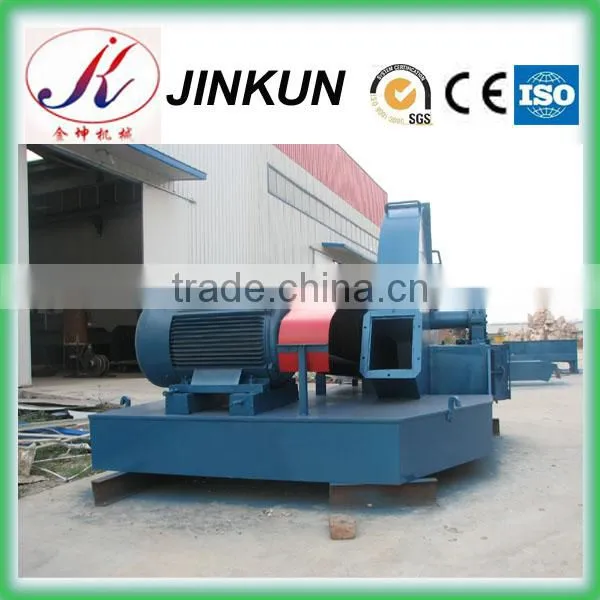

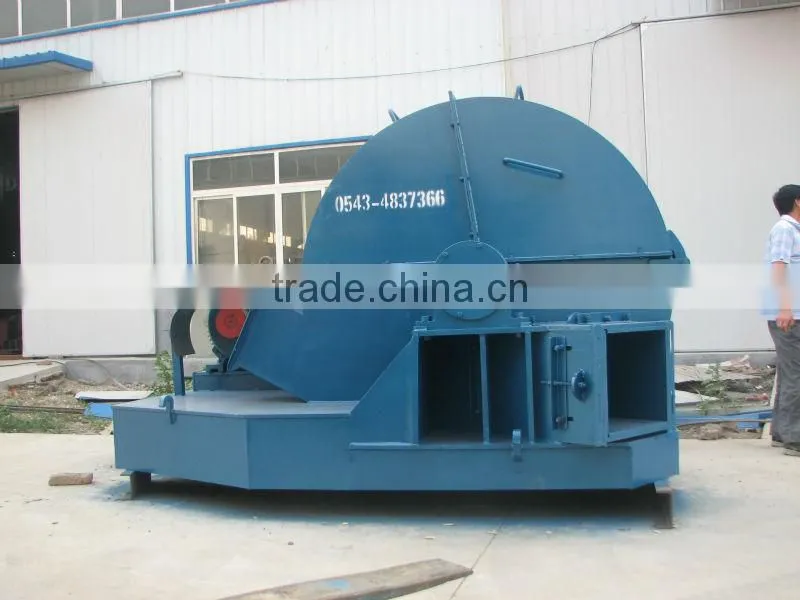

Disc wood chipper machine:
About disc wood chipper machinery from Jinkun machinery production CO.Ltd:
The disc chipper is the special wood chipper in producing the high quality wood;
It is widely used in preparation process of papermaking,particleboard,MDF and other industrial production and single chip production base.The main raw material for cutting is log.
This series disc chipper uses a low voltage or high voltage motor,feed divided into horizontal and inclined two ways,and material discharge port on the material and the material in two ways.
Type |
BX116A |
BX158 |
BX1710 |
BX1112 |
Knife diameter |
630mm |
800mm |
1050mm |
1220mm |
Cutter speed |
800 RPM |
650RPM |
980RPM |
740RPM |
Blad qty |
3 film |
4 film |
6 film |
6 film |
Feeding mode |
level |
level |
Tilt/level |
level |
Feeding size |
130*150mm |
210*140mm |
227*210mm |
400*275mm |
Chip length |
15-25mm |
12-35mm |
12-35mm |
20-35mm |
Output |
2-5t/h |
3-5 t/h |
8-10t/h |
10-15t/h |
Main motor power |
22kw |
30kw |
55kw |
90kw |
Cutting logs max diameter |
100mm |
160mm |
180mm |
200mm |
Discharge mode |
Up or blow |
Up or blow |
Up or blow |
Up or blow |
Weight |
2000kg |
2400kg |
2800kg |
4585kg |
Dimension |
2340*1200*1845mm |
2600*1730*3125mm |
2550*1600*1650mm |
3000*1570*1614mm |
Wood chips is cutted by disc wood chipper:
