Help CenterLarge Advanced Electric Wood Log Cutting Machine/wood Splitting Machine
Related Products
-
Large Wood Splitting Machine,hot ProductionNegotiableMOQ: 1 Set -
Fodder Chopper TypeUS$ 3,188 - 4,500MOQ: 1 Set
-
2017 Activities Horizontal Splitter MachineUS$ 3,100 - 5,588MOQ: 1 Set
-
Manufacturer Supply Wood Splitting Machine.US$ 3,380 - 4,100MOQ: 1 Set
-
CE Certificate Wood Carving Machine for SaleUS$ 3,380 - 4,100MOQ: 1 Set
1.Specialized in study and manufacture of woodworking machinery
2.ISO,CE,SGS certification
3.Can be customized

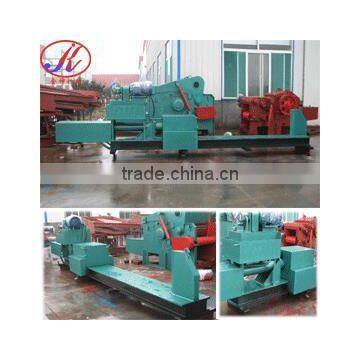

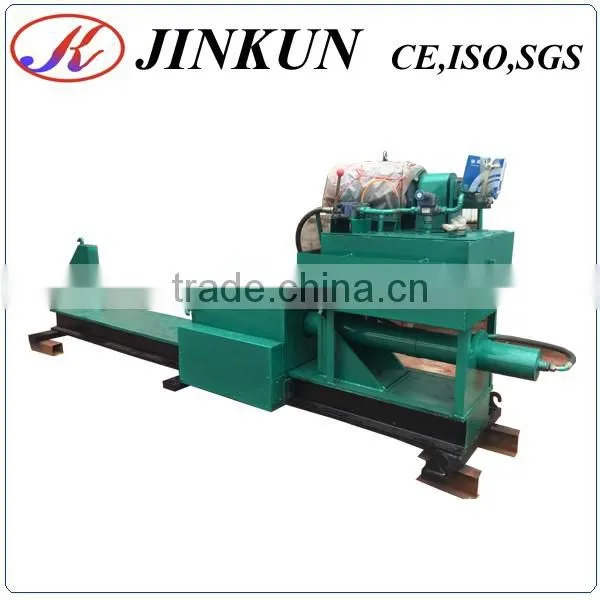

Electric wood log cutting machine/wood splitting machine is detailed as follows:
Introduction of wood log cutting machine/wood splitting machine:

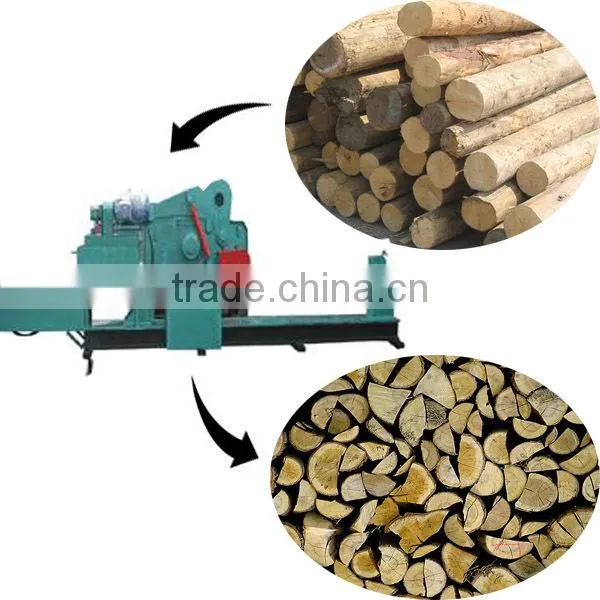

1.-The machine is used to split the big size wood, log, and kinds of stump.
2.-It is suitable for the plating, paper-making, chipper making factory.
3.-It is the ideal equipment of the wood working machine, is the new series of the splitting machine.
4.-With rational structure, sturdy and durable, high capacity, easy to operate, safe
| Type | JK1200 | JK2500 |
| Electrical power(KW) | 15 | 15 |
| High pressure gear pump(ml/r) | 63 | 63 |
| Pressure(Mpa) | 20 | 20 |
| Cylinder inner-diameter(mm) | 150 | 160 |
| Piston rod diameter(mm) | 90 | 100 |
| Stroke(mm) | 1200 | 2500 |
| Forward Velocity(mm/s) | 80 | 80 |
| Fall back speed(mm/s) | 120 | 120 |
| Maxi thrust(T) | 35 | 35 |
| Weight(T) | 2.2 | 3 |
| Size(mm) | 3800*950*460 | 6500*950*1500 |
The types of wood log cutting machine/wood splitting machine:

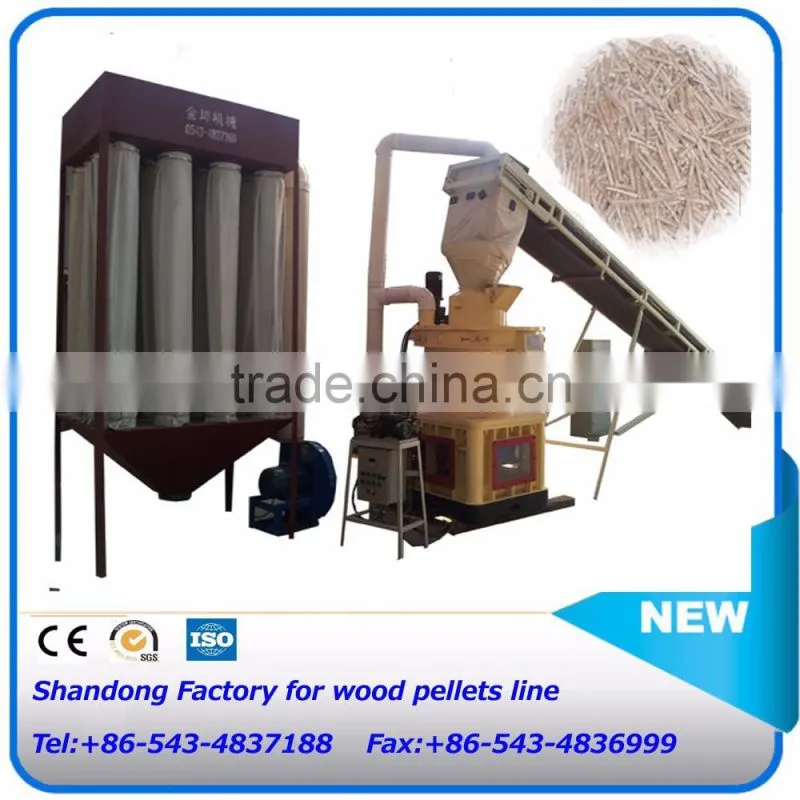

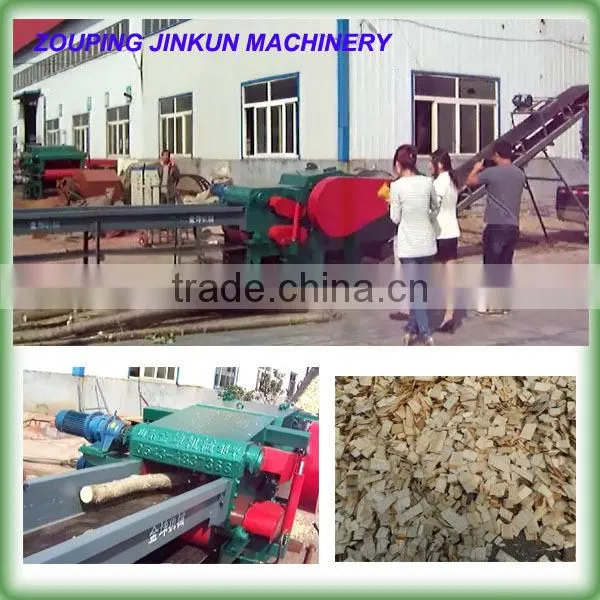

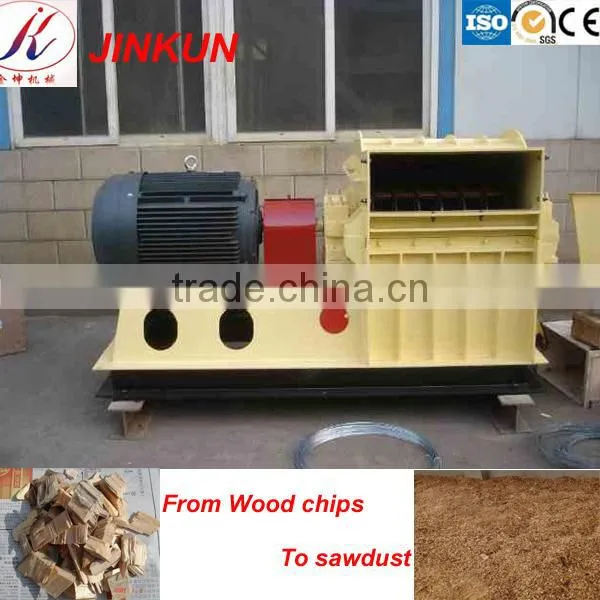

Other machines in Jinkun Machinery:
After-sale Service:
| Service is available to each customer.The after-sale service provided engineers available to service machinery overseas. |
| One-year warranty is provided. (The detailed reference will be written into the final contract.) |
| Professional staff for installation and training if needed. |
| Spare parts are supplying on time or doing some inventory if promising certain sales volume. |
| Faster delivery, we will support our sole agent to do the stock if good sales, then more convenient and helpful. |
About Zouping Jinkun Machinery Production CO.LTD:
Zouping Jinkun machinery is established in the year 1999,with occupies a total area of about 122000 square meters and gross building area of 17000 square meters.It has more than 220 employees and over 80 of are mechanical creation design and engineering technical personnels.
We have been certified by CE ISO9001 and ISO14001.Our products sell well in more than 20 provinces in China.At the same time,our products enjoy good reputation in over 10 countries and areas in Africa,South America,Eastern Europe,Southeast Asia.
If you need, pls conact us.Jinkun machinery is looking forwards to getting your equirey.
