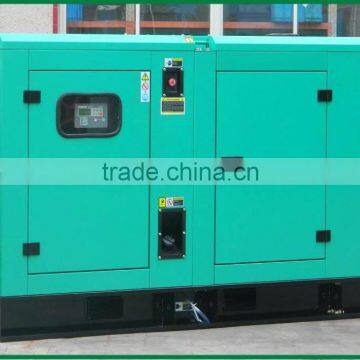

ISO9001 certificate diesel generator set
1, Main Technical Data :
Diesel Generator Model |
HN-50GF |
|
Engine Specifications |
Engine Brand |
RICARDO |
modle |
N4105ZD |
|
Rated Power |
56kw |
|
Rated Current |
90 A |
|
Cylinders |
4 |
|
Bore (mm) |
105 |
|
Stroke (mm) |
125 |
|
Rated Speed (rpm) |
1500 |
|
Start Method |
24V DC starter |
|
Speed Governing |
Mechanical governor |
|
Cooling Method |
closed water cooling |
|
Diesel Consumption |
210g/kw.h |
|
Rated Power |
50 KW |
|
Rated Frequency (HZ) |
50 |
|
Rated Voltage (V) |
240V |
|
Power Factor |
0.8 (Lag) |
|
Connection Type |
3P4W |
|
Excitation Method |
Brushless |
|
Voltage regulation |
AVR |
|
Protection |
IP23 |
|
Class |
H |
|
Dimension(L*W*H)(mm) |
1900*750*1280 |
|
NET.WEIGHT(kg) |
900 |
|
Warranty |
one years or 1500 running hours. |
|
Standard configuration |
1. Diesel engine |
|
2. Alternator | ||
3. Steel common base | ||
4. Standard control panel | ||
5. Radiator 40°C max,fans are driven by belt, with safety guard | ||
6. Anti Vibration Suspension Absorber | ||
7. Dry type air filter, fuel filter, oil filter | ||
8. Mould case circuit breaker | ||
9. 12/24V DC start motor, batteries rack and cable | ||
10. 12/24V charge alternator | ||
11. Ripple flex exhaust pipe, exhaust siphon, flange, and muffler | ||
12. Random documents,standard sapre parts,standard tool kits | ||
Optional configuration |
1. Engine protection module (low battery voltage, high water/oil temperature, over speed,low fuel level etc) |
|
2,The Advantages:
3,About our factory:
4,Product details:
5, Production line:
6, Our Products:
7, FAQ:
8,Contact us:
