1.Specialized in study and manufacture of producing pellet making machine
2.ISO,CE,SGS certification
3.Can be customized

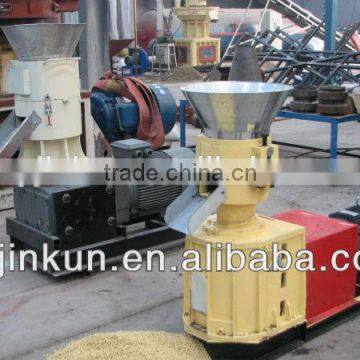

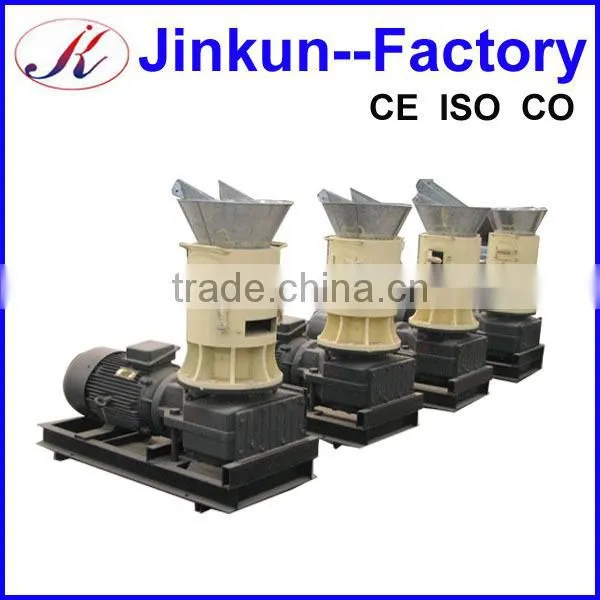

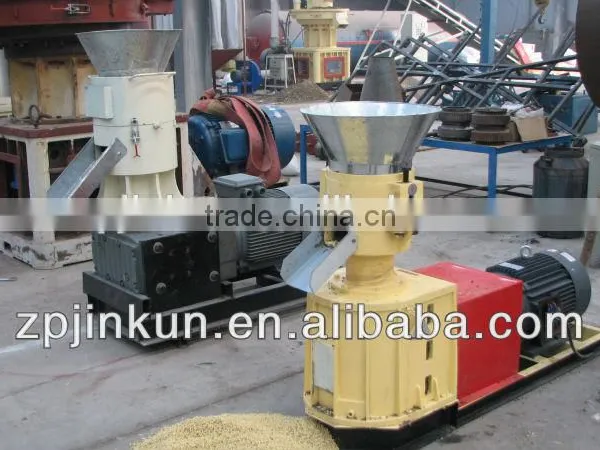

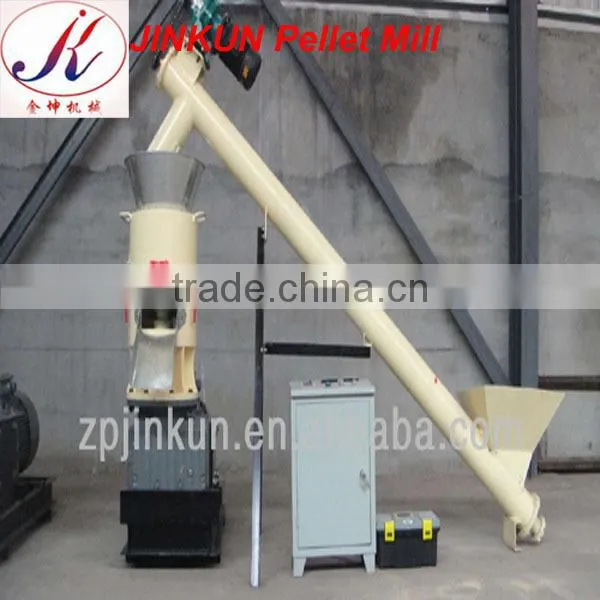

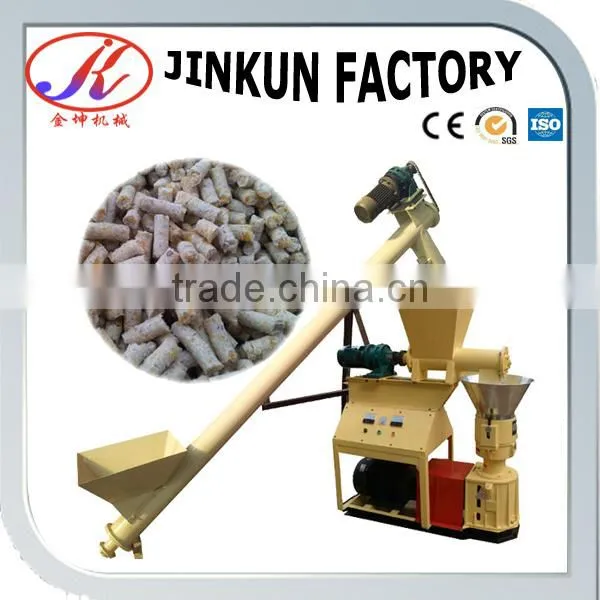

Part1--The introduction of JKFD series forage pellet making machine/small scale pellet mill for forage:
The JKFD series small pellet mill is one of our mainly products, it is also be called at flat die pellet mill, and the small machine operate easily, and suitable for home use.It can be used for making fuel pellet, fertilizer pellet, and animal feed pellet. The output volume is high, energy consumption is low and the operation is convenient.
For pellet making, the size of input materials should smaller than the diameter of the pellets
you want to get. The best moisture content of raw materials is 15%-20%, the moisture of
finished pellets is about 11% -13%.
The JKFD series pellet machines can be both with motor and diesel engine can satisfy the
different customers requirements.
Part2--Features of forage pellet making machine/small scale pellet mill for forage:

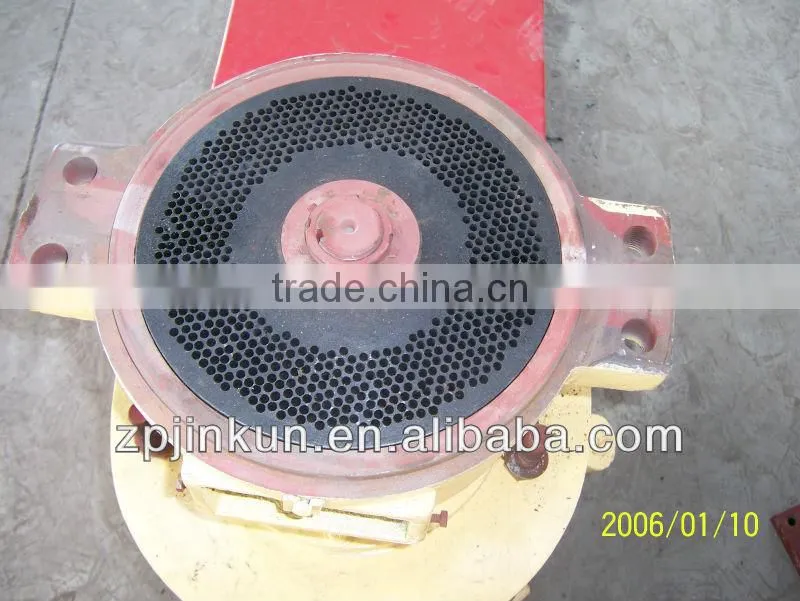

1.-The "taper shape" rollers make their ends rounding linear speed consistent with flat die,so it avoids dislocated friction which maybe created between rollers and die.In this way,it can reduce friction and save much energy consumption,lengthen die and rollers lifetime.
2.-Adjust the pressure through central screw,auxiliary pressurized by three axle ends;the die gap is varied,which is available for different materials,ensure the pressure efficiency.
3.-Large rollers with wide groove,bear the more pressure and abrasion.
4.-The rollers are more evenly distributed,stable operation;increase the pressure areas and improve the production efficienly.
5.-The forage pellet making machine/small scale pellet mill for forage adopt the high pressure filter lubrication system.

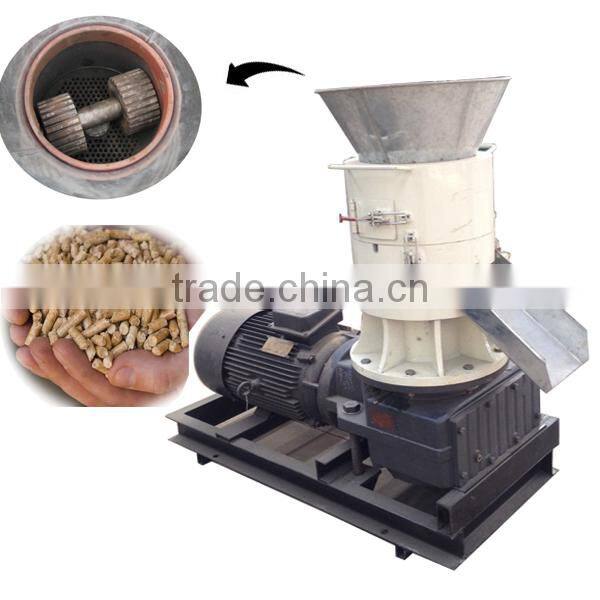

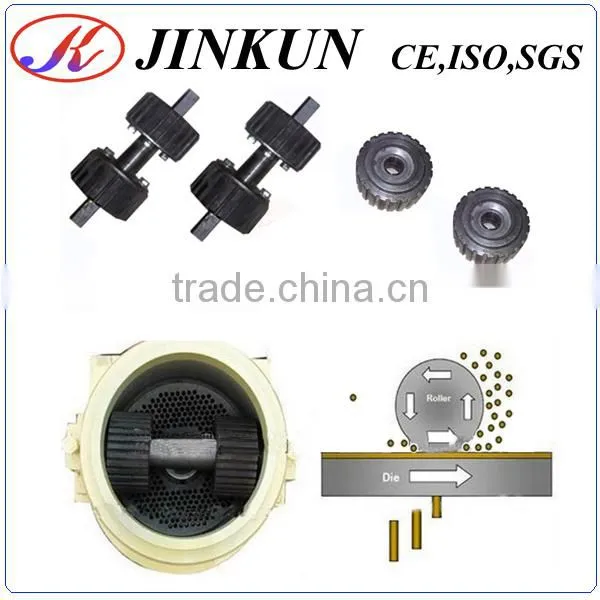

Part3--The detailed picture of working process:
Part4--Specifications of forage pellet making machine/small scale pellet mill for forage:
Type |
Output (KG/H) |
Power (KW) |
Processing Size (mm) |
Flat-die of pellet (mm) |
Weight (KG) |
Overall Size (mm) |
JKFD350 |
300-500 |
30 | 6-8 | 350 |
800 |
1500*850*1400 |
JKFD400 |
500-600 |
37 | 6-8 | 400 | 950 | 1550*850*1650 |
JKFD450 |
600-700 |
45 |
6-8 |
450 | 1080 |
1600*850*1650 |
JKFD550 |
700-900 |
55 |
6-8 |
550 | 1600 |
1700*900*1750 |

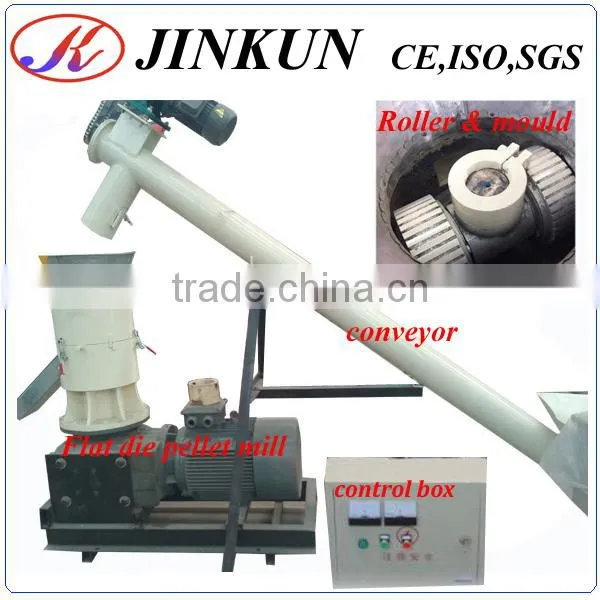

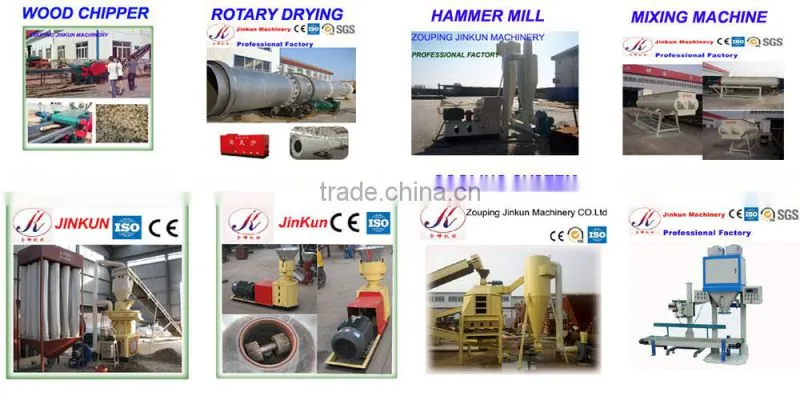

Part5--Assistant machinery for JKFD series forage pellet making machine/small scale pellet mill for forage:
Part6--Other pellet mill of Jinkun:

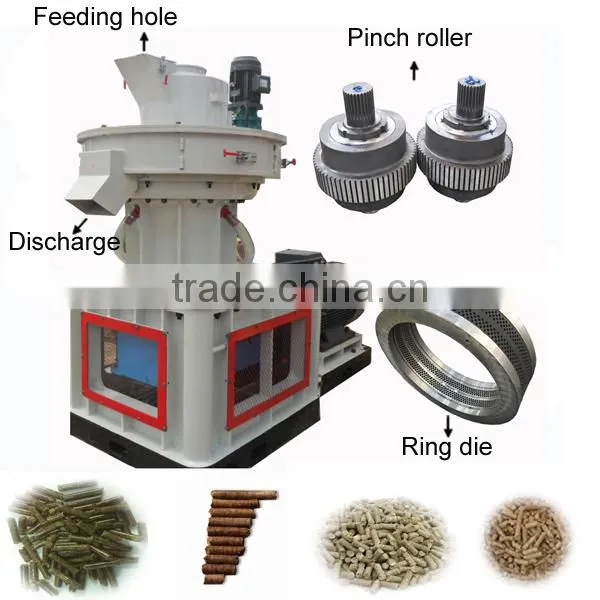

Ring die pellet mill
Part7--Raw materials and sample of pellets:

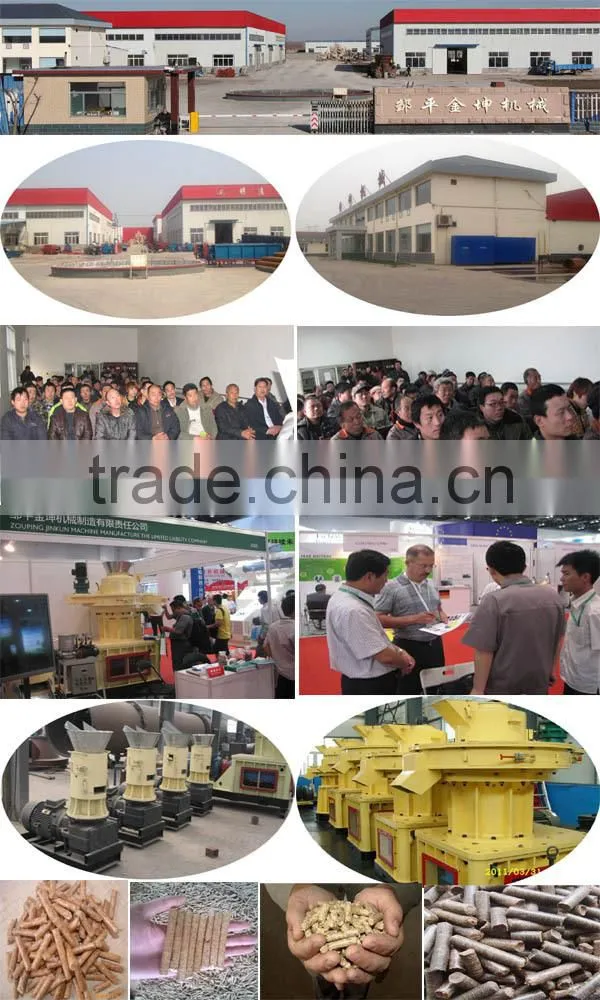

Part8--About Zouping Jinkun Machinery Production CO.LTD:
Zouping Jinkun machinery is established in the year 1999,with occupies a total area of about 122000 square meters and gross building area of 17000 square meters.It has more than 220 employees and over 80 of are mechanical creation design and engineering technical personnels.
We have been certified by CE ISO9001 and ISO14001.Our products sell well in more than 20 provinces in China.At the same time,our products enjoy good reputation in over 10 countries and areas in Africa,South America,Eastern Europe,Southeast Asia.
Part9--About Jinkun Machinery:
If you need, pls conact us.Jinkun machinery is looking forwards to getting your equirey.
My name card:
