Jinkun 2017supply Wood Powder Sawdust Crush Machine

Jinkun 2017supply Wood Powder Sawdust Crush Machine photo-1
Jinkun 2017supply Wood Powder Sawdust Crush Machine photo-2
Jinkun 2017supply Wood Powder Sawdust Crush Machine photo-3
Jinkun 2017supply Wood Powder Sawdust Crush Machine photo-4
Jinkun 2017supply Wood Powder Sawdust Crush Machine photo-5
Jinkun 2017supply Wood Powder Sawdust Crush Machine photo-6
US$ 12,288 - 21,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Shandong, China
Brand Name:
Jinkun wood chipper machine
Payment & Shipping
Payment Methods:
Port of Shipment:
any port in china
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Place of Origin Shandong, China
Brand Name Jinkun wood chipper machine
Model Number JK218 wood chipper
After-sales Service Provided Engineers available to service machinery overseas

1.Specialized in study and manufacture of woodworking machinery

2.ISO,SGS,CE certification

3.Can be customized

Wood powder sawdust crush machine is detailed as follows:

Jinkun 2017supply wood powder sawdust crush machine

Specification of wood powder sawdust crush machine:
Type:JK215JK216JK218JK2113
Feed port size(mm)160*400230*500300*680500*700
Quantity of model knife(pcs)2 or 32 or 33 or 4 or 53 or 4 or 5
Rotary speed of roller(rpm)590590650500
Wood chips length(mm)20-3520-3520-3520-35
Output capacity(T/H)5-88-1210-2025-35
Max diameter of logs(mm)160200300450
The main motor power(KW)4555110220
Weight(KG)29904070720014500
Size:L*W*H(mm)1540*1240*10201980*1950*12502300*2150*15003850*2448*2050
Diameter of roller(mm)5006008001300
Technical information of wood powder sawdust crush machine:
Drum chipper is the production of wood products and special equipments,this product is widely used in particle board plants,medium and high density fiberboard plant stubble plant stubble plants,biomass power plant,wood chips and other industrial and manufacturing plant manufacturers preparation in section before the device of choice.

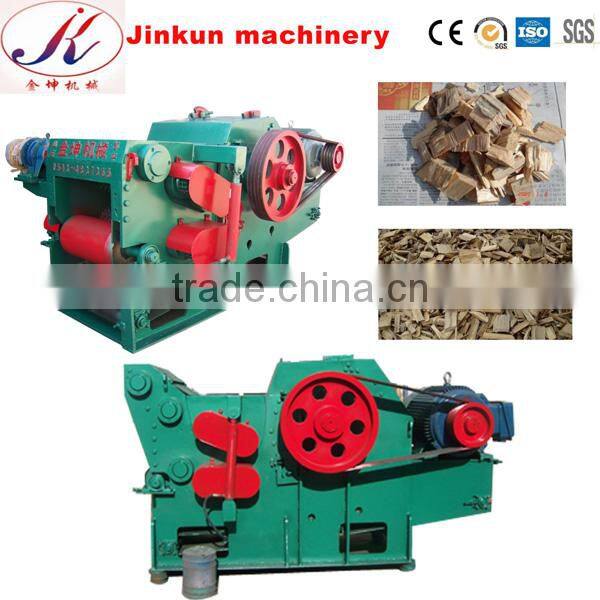

JK218 wood chipper machine is one of the drum wood chipping machinery.
Feature of wood powder sawdust crush machine:
The product structure is advanced,cutting film material of high quality,wide adaptability of raw materials,operation and maintenance.
Jinkun 2017supply wood powder sawdust crush machineJinkun 2017supply wood powder sawdust crush machineJinkun 2017supply wood powder sawdust crush machine
Application of wood powder sawdust crush machine:
small diameter wood,
timber harvesting,
processing residues (such as branches,twigs,slab,tree root,core logs,waste board etc.) ,
the non-wood raw material(such as sugar cane,reed,bamboo etc.).

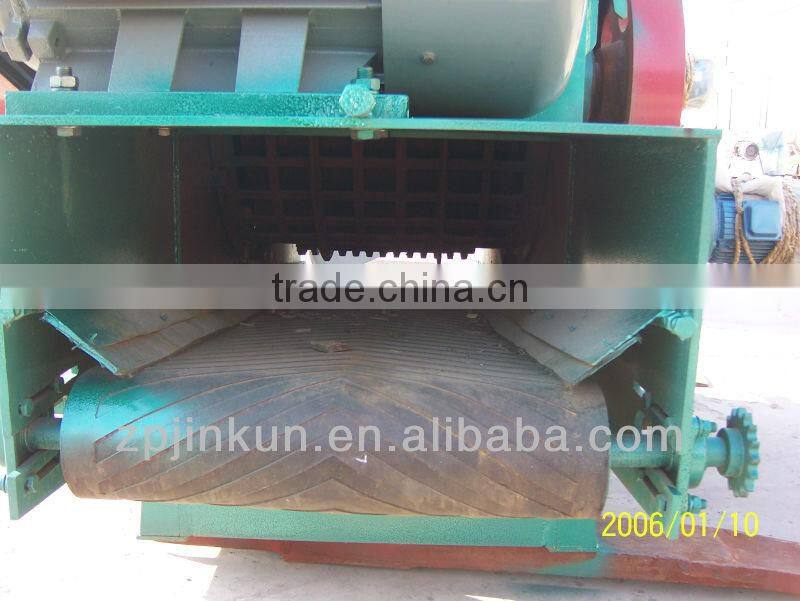

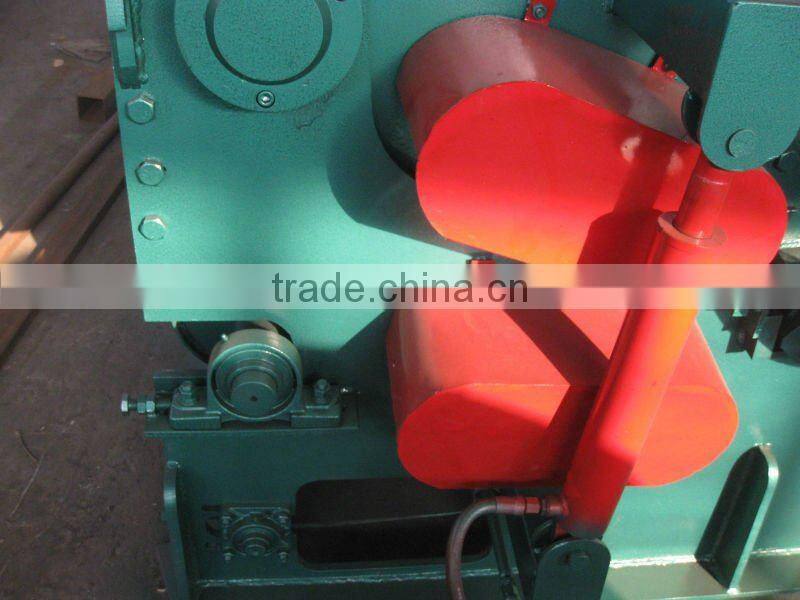

The detailed picture of wood powder sawdust crush machine:

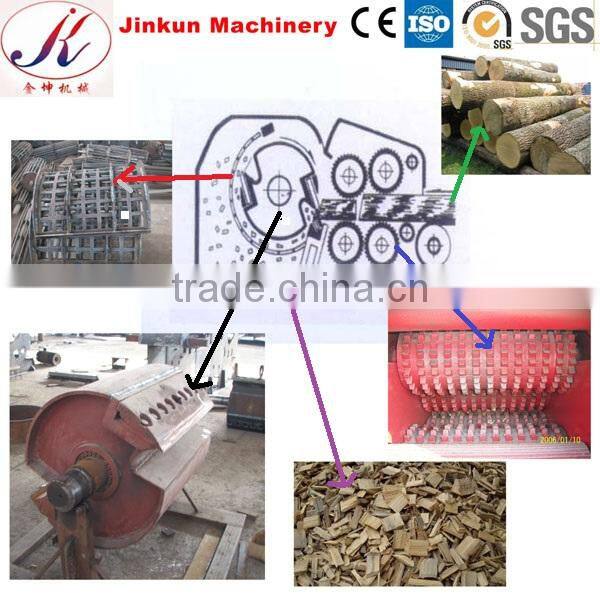

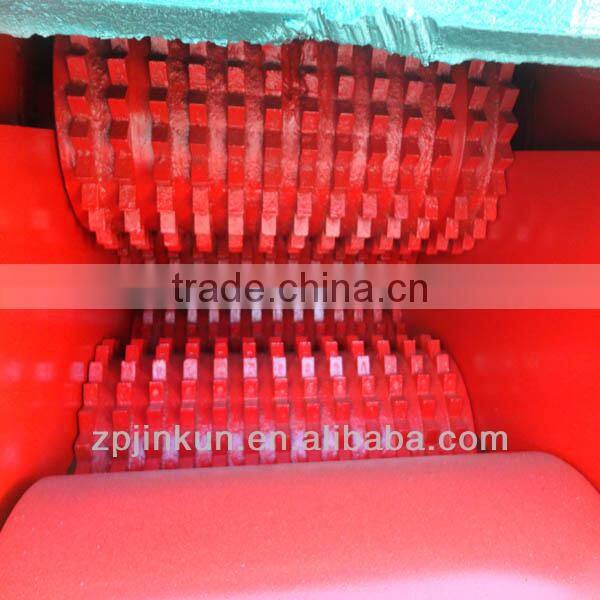

Machine from the body,the knife roller,the upper and lower feed rollers,the conveyor belt,hydraulic system components.

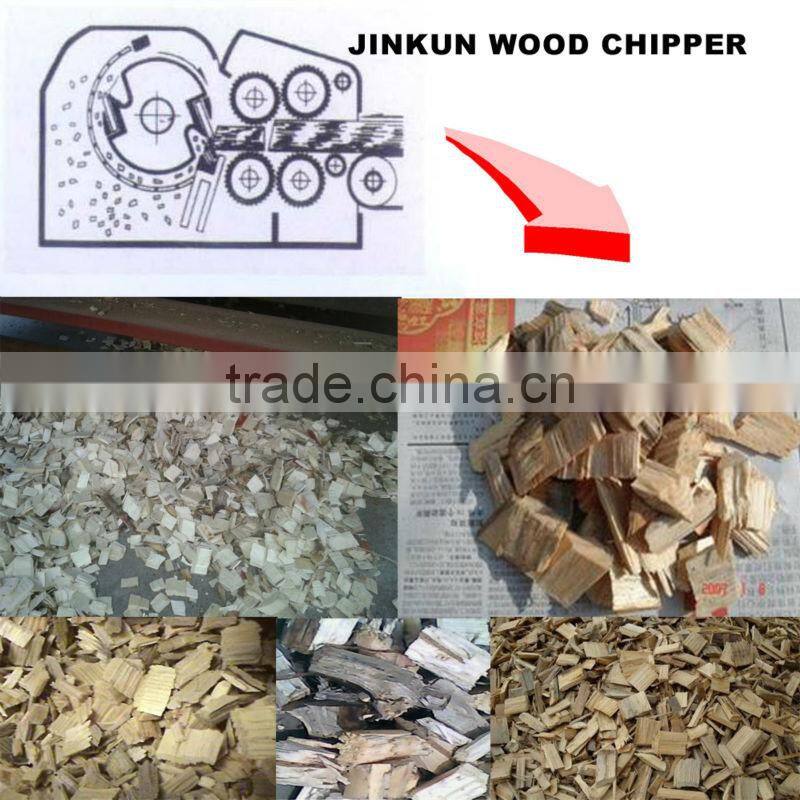

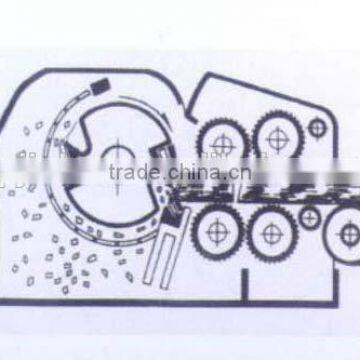

Structure of wood powder sawdust crush machine:

Wood powder sawdust crush machine production line:

Jinkun 2017supply wood powder sawdust crush machine

After-sale Service:

Service is available to each customer.The  after-sale service provided engineers available to service machinery overseas.
One-year warranty is provided. (The detailed reference will be written into the final contract.)
Professional staff for installation and training if needed.
Spare parts are supplying on time or doing some inventory if promising certain sales volume.
Faster delivery, we will support our sole agent to do the stock if good sales, then more convenient and helpful.



About Zouping Jinkun Machinery Production CO.LTD:

        Zouping Jinkun machinery is established in the year 1999,with occupies a total area of about 122000 square meters and gross building area of 17000 square meters.It has more than 220 employees and over 80 of are mechanical creation design and engineering technical personnels.

We have been certified by CE ISO9001 and ISO14001.Our products sell well in more than 20 provinces in China.At the same time,our products enjoy good reputation in over 10 countries and areas in Africa,South America,Eastern Europe,Southeast Asia.

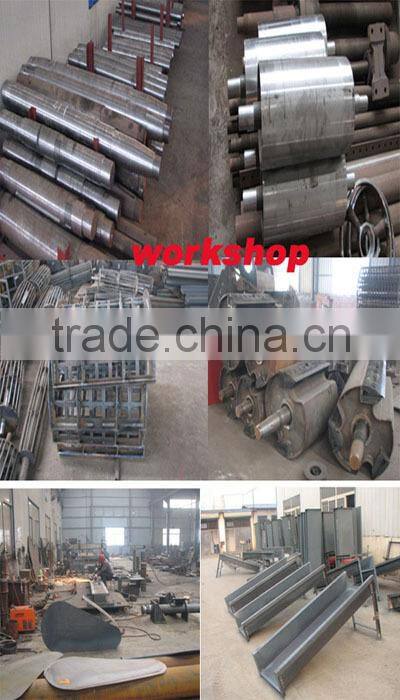

 About Jinkun Machinery:
Jinkun 2017supply wood powder sawdust crush machine
If you need,pls conact us.Jinkun machinery is looking forwards to getting your equirey.
