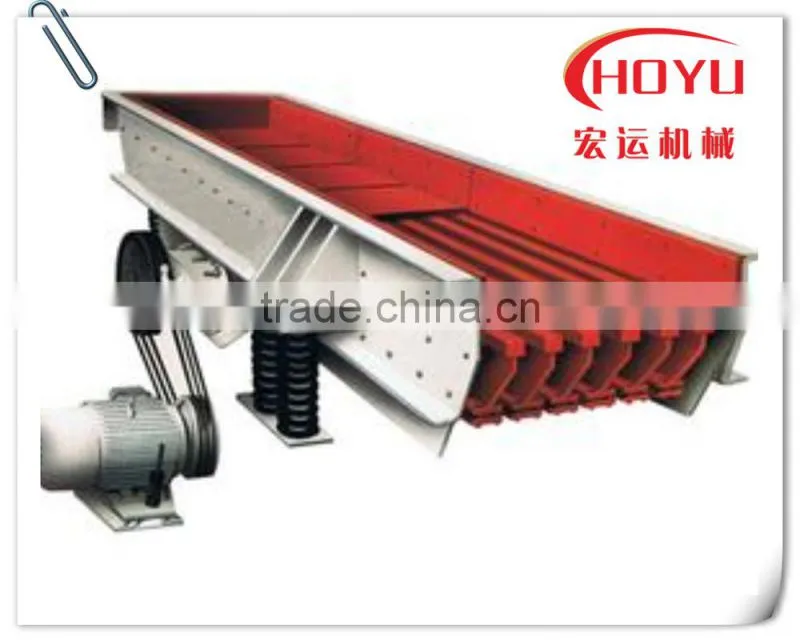

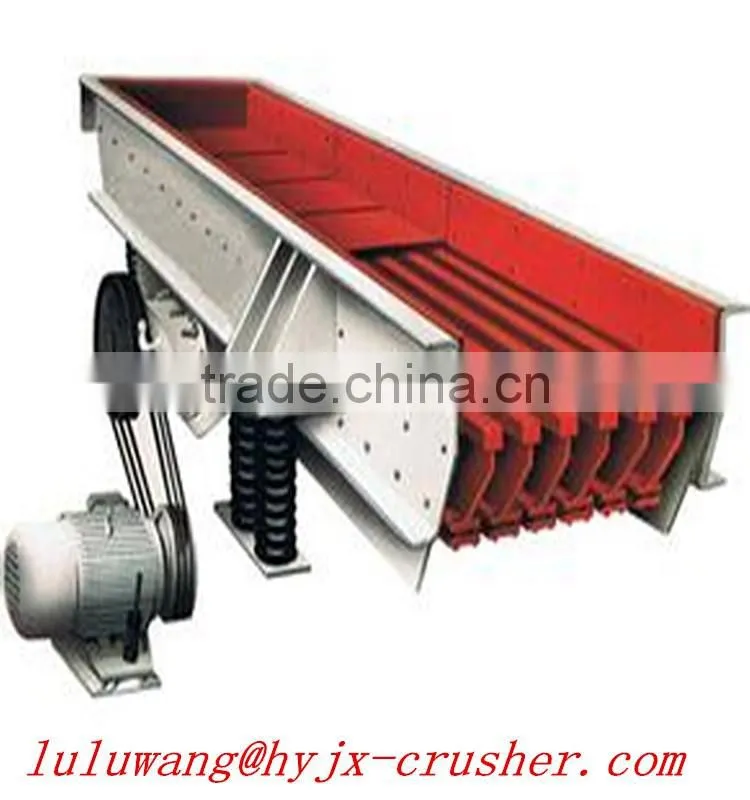

2016industrial machinery vibrating feeder mining machine/vibrating feeder
- 20 Set / Sets per Month
- Qingdao Tianjin etc.
- T/T L/C D/P D/A Credit Card PayPal
- Mining machine vibrating feeder crush stones parts
- vibrating feeder for chinese electric motors with diesel case
- Mining processing equipments, motor vibrating feeder price in Turkey
- China hot selling products vibrating feeder price, sand making processing machinery
- Vibrating feeder price, sand processing machines, mobile feeder for sale
- Oscillating feeder, vibrating sand feeder, sand processing machines
Product Details
Place of Origin: | Henan, China | Brand Name: | hongyun | Model Number: | GZD-1300*4900, GZD-1300*4900 |
Condition: | New | After-sales Service Provided: | Engineers available to service machinery overseas |
Packaging Details
Standard in container, small parts are packaged in wooden cases.
Product Description
Vibrating feeder is widely used in sand making, mineral processing, ore milling, coal milling, metallurgical engineering, chemical engineering, etc.
Vibrating feeder makes use of the centrifugal force which produced by its vibrator to make the screen box and vibrator do center movement obtrusively and continuously so that to achieve the effect of vibrating feeding .
ibrating feeder carries irregular shape or granular materials from the bunker to the required processing equipment and controls the flux of materials and transporting speed to make the whole feeding process equably and continuously.
1. Using the vibrator with eccentric block, to improve the vibration amplitude of the equipment and to make the conveying fast and smooth. At the same time, the larger vibration amplitude can do screening of materials to reach the effect of one machine dual use.
2. Choosing frequency control of motor to adjust the vibrating frequency to change the flow and speed of vibrating feeding, easier operation.
3. Special design about grid can prevent the phenomenon of clogging. Because of unfixed space among grids, the grids can be adjusted based on materials’ size to reach the best effect of conveying.
4. Vibrating feeder price is made of high wear-resisting metal material. It can improve the wear tolerance of components in the process of usage. Unique throwing conveying principle reduces the materials’ wear to components to reach the effect of double anti abrasion.
5. During the use of the equipment, it can do screening work aiming at small material and screening out the smaller material first. It is not only reduces the small materials’ wear strength to device, but also improve the efficiency of its matched equipments.
6. Vibrating feeder price ’s start frequency is relatively high. It can be used in a short time, don’t need preheating, easy to operate, safe and reliable.
7. Widely usage, stable operation, easy installation, easy maintenance, high efficiency, less power consumption and good adjusting performance. It is the auxiliary device with high comprehensive use value.
Model | Power(kw) | Dimension(mm) | Weight (kg) | Capability (t/h) | Funnel size (mm) | Max feed size (mm) |
GZD-960*3800 | 11 | 3850*1950*1630 | 3980 | 120-210 | 960*3800 | 500 |
GZD-1100*4200 | 15 | 4400*2050*1660 | 4170 | 200-430 | 1100*4200 | 580 |
GZD-1100*4900 | 15 | 5200*2050*1700 | 4520 | 280-500 | 1100*4900 | 580 |
GZD-1300*4900 | 22 | 5200*2350*1750 | 5200 | 450-600 | 1300*4900 | 650 |
Hongyun machinery factory professionally specialize in researching and developing all kinds of vibrating feeders, the models are various. Our company owns strong tcehnical power and perfect services. welcome to contact us.
