Specifications

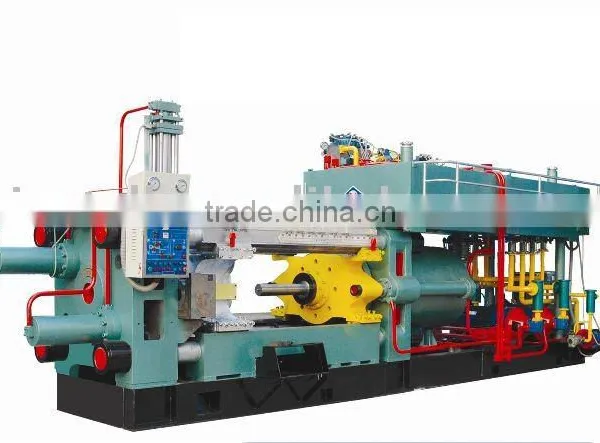

The extrusion press is equipped with variable piston pump which can automatically control the output of pumpGA-1000 aluminium extrusion press
extrusion force:10000KN,
Returing Force:400KN,
extrusion stroke:1000mm;
extrusion speed:0-40mm/s.
parameter |
unit |
The model of single-acting extruder |
||||||
880T |
1000T |
1300T |
1600T |
1800T |
2000T |
|||
system pressure |
MN |
21 |
21 |
21 |
21 |
21 |
21 |
|
Plunger diameter |
mm |
φ 720 |
φ 760 |
φ 860 |
φ 960 |
φ1020 |
φ1060 |
|
quick cylinder |
mm |
φ140 × φ100 |
φ160 × φ120 |
φ180 × φ120 |
φ200 × φ150 |
φ220 × φ160 |
φ240 × φ160 |
|
tighten cylinder |
mm |
φ180 × φ90 |
φ200 × φ100 |
φ220 × φ120 |
φ250 × φ150 |
φ250 × φ150 |
φ250 × φ150 |
|
cutting cylinder |
mm |
φ140 × φ100 |
φ150 × φ100 |
φ160 × φ120 |
φ180 × φ150 |
φ180 × φ160 |
φ200 × φ160 |
|
inner bore dimension |
diameter |
mm |
φ110 ~ φ135 |
φ120 ~ φ150 |
φ130 ~ φ180 |
φ150 ~ φ200 |
φ180 ~ φ220 |
φ180 ~ φ240 |
length |
600 |
600 |
650 |
750 |
780 |
800 |
||
extruding speed (Max.) |
mm/s |
13.1 |
15 |
14.3 |
15.2 |
15.3 |
14.1 |
|
Outlet port dimension |
mm |
φ150
|
φ160×180 |
φ200 ×230 |
φ230 ×260 |
φ280 ×320 |
φ300 ×350 |
|
gross power |
Kw |
110 |
130 |
150 |
205 |
225 |
270 |
|
