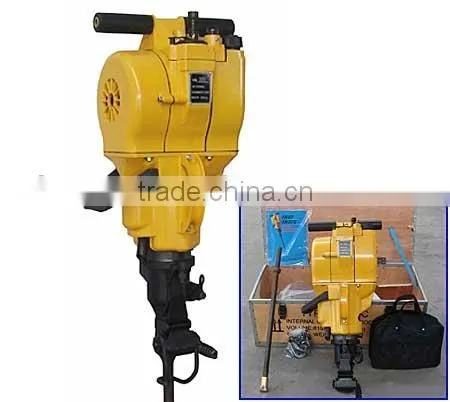

Gasoline Rock Drill, CE Approval, Industry Quality.Gasoline Rock Drill
Model: CGB3001
Technical Specifications:
1.Weight of the main machine: 27kg
2.Overall dimension: 746×315× 229mm
3.Type of engine: single cylinder,air cooled two strokes
4.Cylinder Diameter ×Stroke of piston:5 8 × 70mm
5. Rotating speed of engine: ≥2450r/min
6.Displacement of engine piston: 185cm3
7.Type of carburetor: hand needle valve, no floating type
8.Ignition system: Controllable silicon contactless system
9. Drilling speed:(mean value of five holes) ≥ 250mm /min
10. Max. drilling depth: ≥ 6m
11.Fuel consumption: 0.12 L/m
12.Tank capacity:≥ 1.14L
13. Mixing ratio of gasoline and lubrication oil (in volumes):12:1
14. End of drill rod dimensions: hexagonal2 2 × 108mm
15. Rotating speed of drill rod:≥200r/min
16. Clearance of Spark plug :0.5 -0.7mm
Packing:
Wooden Case with accessories, (Including one piece 600mm*34mm Drill)
Approval: CE
