Multi-Function Woodworking Machine

Specifications

Multi-Function Woodworking Machine, Panel Saw /Moulder /Mortising /Surface Planer /Thicknessing Planer Combined Machine, CE

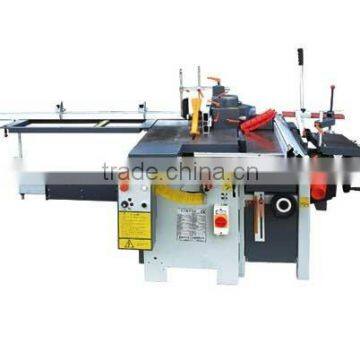

Multi-Function Woodworking Machine
Model: BWW3001
Motor Power: 2.2Kw, 3motors
1). Panel Saw
Main saw speed: 4375rpm
Main saw diameter: 300mm
Spindle diameter of main saw: 30mm
Scoring saw speed: 7000rpm
Scoring saw diameter: 100mm
Spindle diameter of scoring saw: 22mm

2). Moulder
Spindle diameter: 30mm
Max.tool diameter: 160mm
Cutter block length: 105mm
Cutter block vertical stroke: 115mm
Rotation speed: 4300/6000rpm

3). Mortising
Working table: 250×500mm
Longitudinal stroke: 200mm
Cross stroke: 100mm
Vertical stroke: 90mm
Tool coupling diameter: 16mm

4). Surface Planer
Working table: 300×1500mm
Planer shaft diameter: 70mm
Planer shaft rotation speed: 5700rpm
Knives: 3pcs
Work piece min.length: 15mm
Infeed table max.adjustment: 4mm

5). Thicknessing Planer
Working table: 300×600mm
Work piece min. length: 200mm
Max. removal thickness: 5.5mm
Infeed speed: 7m/min
Piece passage :220mm
Min. piece passage: 4mm

Packing: Wooden Case, 1Pc/Case, GW/NW: 620/560Kg,Case Size: 162 * 122 * 104cm
Approval: CE
