Specifications

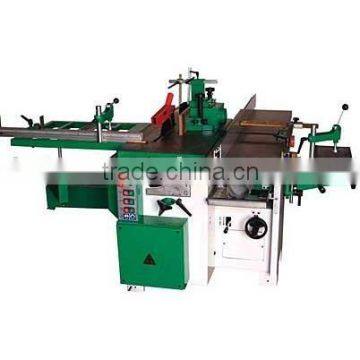

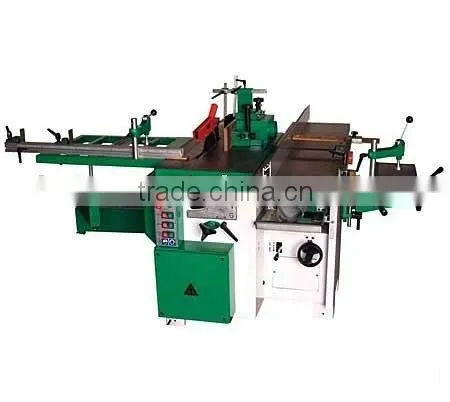

combined woodworking machine, CE approval, Panel Saw/ Moulder/ Scorer/ Surface Planer/ Thickness Planer FunctionsMulti-Function Woodworking Machine
Model: BWW3003
Motor Power: 2.2Kw, 3motors
1). Panel Saw
Arbor speed: 3500rpm
Arbor diameter: 250mm or 305mm
Arbor Speed: 30mm
Max. Cutting Height: 90mm (at 90 degree)
Tilting Cutting Height: 65mm (at 45 degree)
Max. Cross cutting Width: 1250mm
2). Moulder
Arbor diameter: 30mm
Arbor Useful height: 85mm
Arbor Speed: 1750r/min or 3500r/min or 6700r/min
Use moulder hood:
Cutter Rotating Max. Diameter: 180mm
Use shaping hood:
Cutter rotating Max. Diameter: 140mm
3). Scorer
Blade Diameter: Φ90×3×Φ20mm
Rotating Speed: 7000r/min
4). Surface planer
Arbor Diameter: 72mm
Arbor Speed: 5400r/min
Max. Width: 300mm
Max. Removal: 3mm
5). Thickness planer
Range of thickness: 6-240mm
Max. removal: 3mm
Feeding Speed: 7.5m/min
6). Drilling
Drilling Diameter (Fixed form): 16mm
Or (Self-centering): 3-16mm
Max. drilling depth: 80mm
Packing: Wooden Case, 1Pc/Case, GW/NW: 490/410Kg, Case Size: 160 * 110 * 105cm
Approval: CE
