Specifications
Detailed Product Description1.pallet wrapping machine
2.CE
3.PLC control ,Automatic feeding
4.customized design
Thank you for visiting us ,it;s so luck to meet you
--------------------------------------------------------------------------------------------------------------------

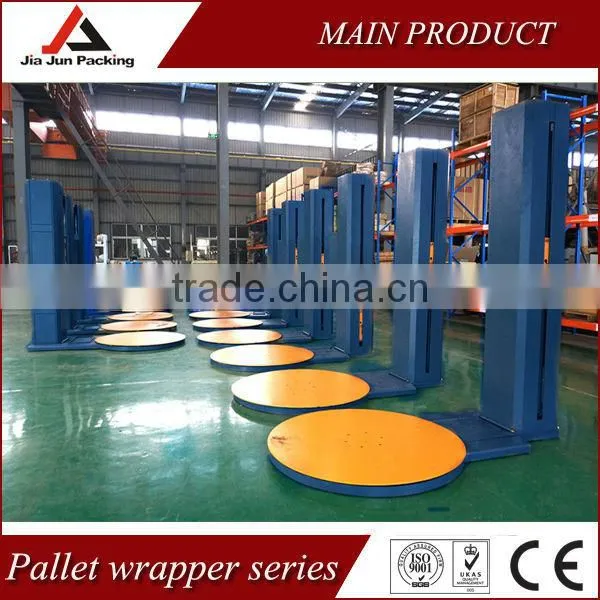

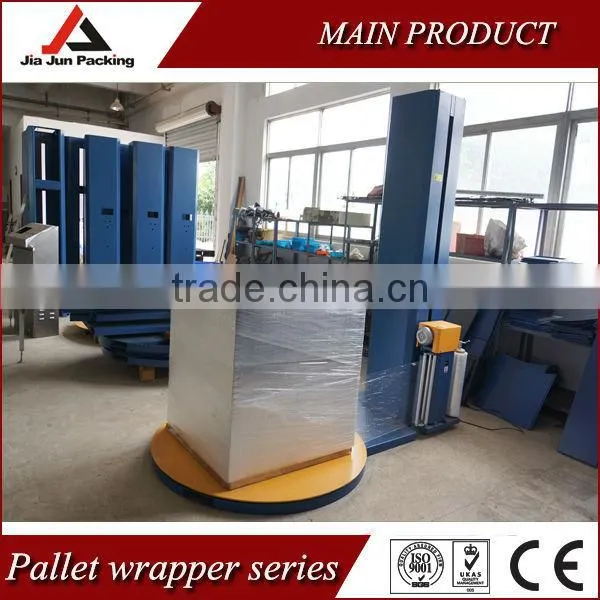

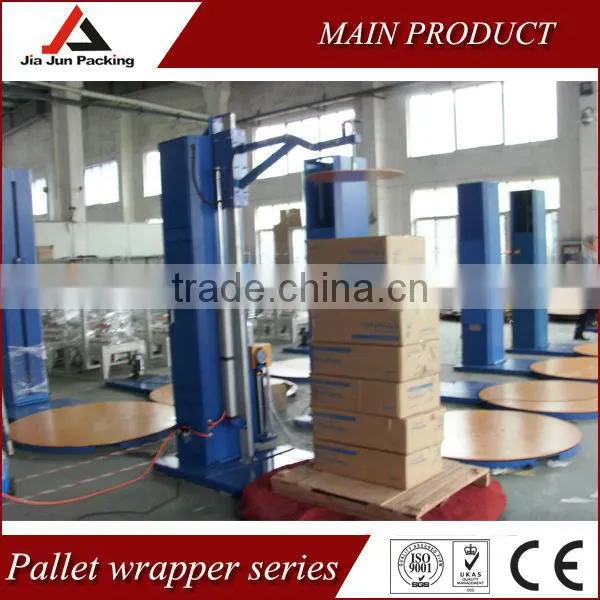

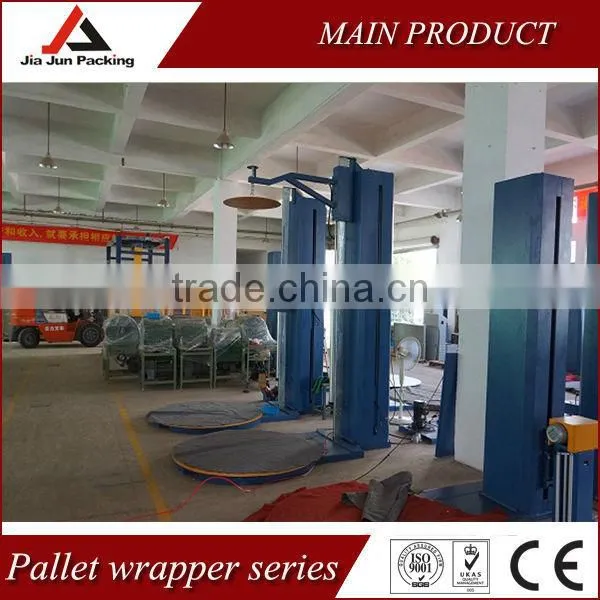

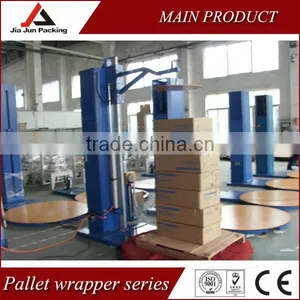

About our pallet wrapping machine :
1.Our machine use LLDPE stretch film as the main packing material to wrap the bulk cargos stacked on the pallet
2.Film provides extra support during transportation and storage to protect them from dust, moisture or damage
3.The stretch wrapping machine has been widely used in industries such as glassware, tools, electric & electronic, paper,
pottery, food & beverage, et
--------------------------------------------------------------------------------------
stretch wrapping machine specification:
model |
SM-1517R |
max packing hight |
2000mm(can be customized) |
max packing area |
1300x1300mm |
max packing weight |
2000KG |
turntable size |
1500mm(can be customized) |
turntable speed |
0-13r/min |
Working speed |
30-40loads per hour |
power supply |
110V/220V/380V |
control type |
PLC |
consumables |
LLDPE |
film width |
500mm |
ramp |
optional |
measuring hight |
photoelectric sensor |
turntable start mode |
frequency conversion slow start |
machine size |
2600x1500x2400mm |
weight |
480KG |
delivery time |
15 working day |
warranty |
one year(free charge spare parts ) |
maintenance service |
engineer help to slove any problem |
--------------------------------------------------------------------------------------
Stretch wrapping machine detail
1.Stretch wrapping machine control pannel one button start wrapping
speed/pre-stretch rate /lift speed easy adjusted on the pannel
2. SIEMENS frequency converter and famous brand electric parts
3.Pre-stretch device ,pre-stretch film rate:250% save the film very much
4.install the stretch wrapping machine
5.packing and delivery stretch wrapping machine
Pallet wrapping machine features:
1. High efficiency and low electricity-consumption, convenient in operation.
2. The wrapping type and times can be designed on customers’ requirements.
3. photoelectric sensor test pallet height automatic
4. Auto reset of turn table
5. Pre-stretch ratio: 25~250% (adjustable).
6. SM-2517R with top press.
7. Programmable control and frequency converter is available.
8.PLC control ,manual optional. Wrap cycle (top, bottom, reinforcement) adjustment.
Variable lift speed/ film tension control. Film up/down controls.
9.pallet stretch wraping machine soft start and soft stop. 10.Suitable for heavy pallet
--------------------------------------------------------------------------------------

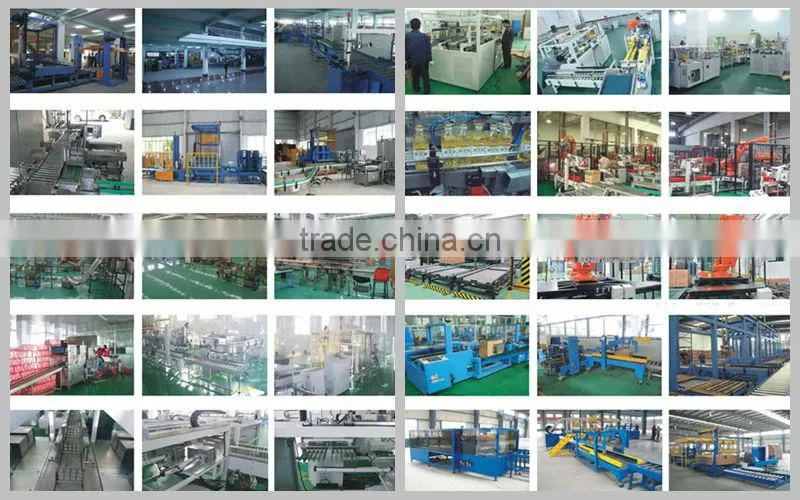

8.Our company:
Looking forwar to your feedback
