Good Quality Automatic Carton Erector With Siemens Control System

Good Quality Automatic Carton Erector With Siemens Control System thumbnail-1
Good Quality Automatic Carton Erector With Siemens Control System thumbnail-2
Good Quality Automatic Carton Erector With Siemens Control System thumbnail-3
Good Quality Automatic Carton Erector With Siemens Control System thumbnail-4
Good Quality Automatic Carton Erector With Siemens Control System thumbnail-5
Good Quality Automatic Carton Erector With Siemens Control System thumbnail-6
Good Quality Automatic Carton Erector With Siemens Control System photo-1
Good Quality Automatic Carton Erector With Siemens Control System photo-2
Good Quality Automatic Carton Erector With Siemens Control System photo-3
Good Quality Automatic Carton Erector With Siemens Control System photo-4
Good Quality Automatic Carton Erector With Siemens Control System photo-5
Good Quality Automatic Carton Erector With Siemens Control System photo-6
US$ 5,799 - 6,500 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Automatic Grade:
Automatic
Usage:
Other Forming Machine
Contact Supplier Request Quote Chat Now
Suzhou Jiajun Packing Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Automatic Grade Automatic
Usage Other Forming Machine
Place of Origin Jiangsu, China
Brand Name Jiajun
Model Number WJ-02
Voltage 110V/220V/50/60HZ
Power(W) 0.4KW
Dimension(L*W*H) 2.2x1.5x2.1m
Weight 500KG
Certification CE
Warranty 2 years
After-sales Service Provided Engineers available to service machinery overseas
Product Description

Product Introduction

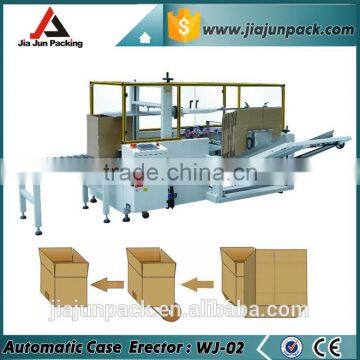

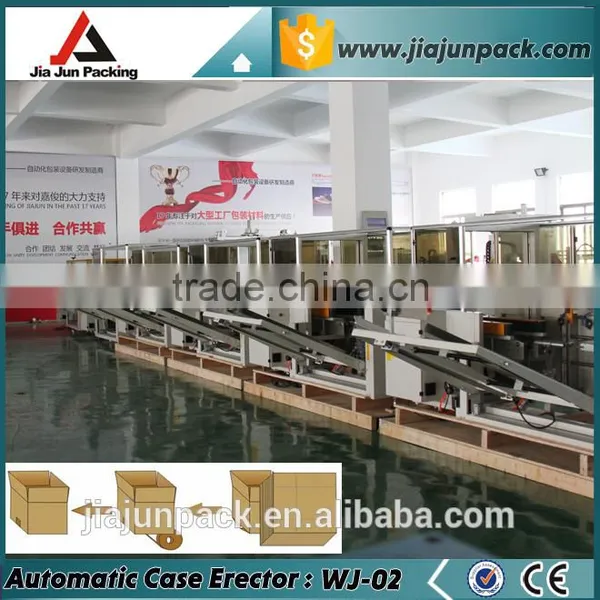

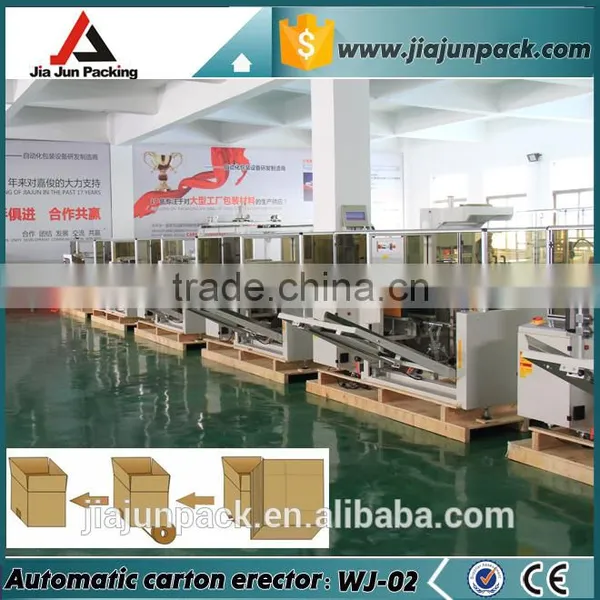

Automatic carton erector can complete the process of carton erecting, vertical forming, bottom flaps folding and bottom tape sealing automatically according to programs.

SPECIFICATIONS FOR AUTOMATIC CARTON ERECTOR
Model
WJ-02
Maximum working speed
10-12 ctn/min
Carton Length
200-450mm
Carton Width
150-400mm
Carton Height
120-350mm
Output height
600mm
Motor
0.4KW
Put Tape
Manual
Tape specification
48/60/75mm(alternative)
frame Color
White
Tape cutter
High speed steel
Pneumatic
5kg/cm3
Storage quantity
100 carton
Control Type
PLC
Lack carton Alarm system
Have
Operation panel
Touch screen
Machine Weight
350KG
Machine Size
L:2000mm W:1950mm H:1440mm
Language
According to customer requirments
Voltage
220V/110V/50HZ 1 P
HS Code
84224000

Main Features

High efficiency, high speed, easy size changeover, stable and safe in operation, reliable in performance, etc.
1 Vertical storage, cartons can be added at any time without stopping the machine;
2 Suitable for forming and sealing cartons of the same size.
3Manually adjust to change the carton sizes(finishing in 2-3minutes);
4Advanced photoelectricity induction control system
5Rationally designed, the forming, folding and sealing process are accomplished simultaneously;
6 Cutter Safety system to prevent hands form stabbed by the cutter,Heavy duty built, both steel and stainless steel types

Certifications
Detailed Images

Touch Screen

Brand: Siemens

Original: Germany

Control panel is Simens touch screen,Germany brand,more stable and low failure rate.

Electrical parts

Siemens PLC,Schneider switch and Omron relay,all electrical parts are top brands,you don't worry about the quanlity.

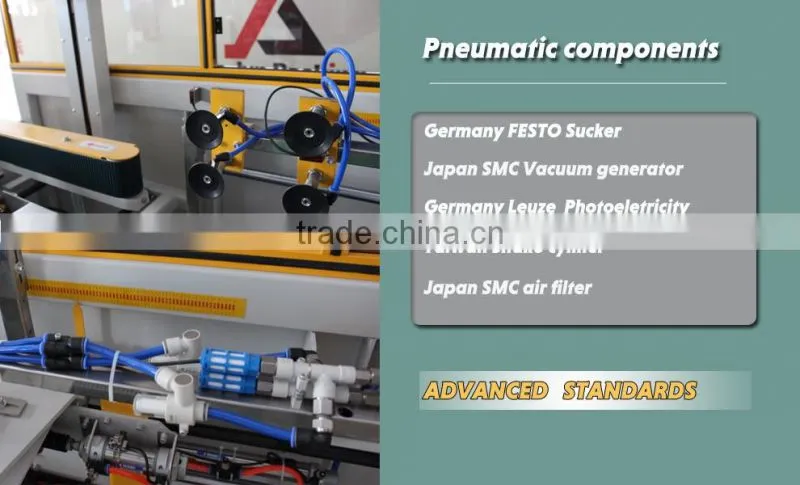

Machine Parts

Germany FESTO Sucker

Japan SMC Vacuum generator

Germany Leuze photoelectricity

Taiwan Shako cylinder

Japan SMC air filter.

Machine core.

On the basis of the introduction of foreign technology to design more stable equipment sealing machine, let the tape completely flat on the carton sealing position. High strength carbon steel have been assembled, more durable than traditional machine core institutions, more efficient!

Cutting Blade.

Blade material is high speed steel,Warning color blade protection cover for your safety operation.

Our Service

We have exhibitions in many countries ,we want to find a partner who is professional in packing machine ,we let our partner provide service for the end user. If you are end user ,we can support you to install machine by video, and if you are distributor ,we can support you to learn the machine ,and let you serve your customer much better .More details please contact us !

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery
Packaging
Size
2 (L) * 1.2 (W) * 1.6 (D)
Weight
350kg



Packaging Details
1 set machine packed in one wooden box.
Total volume:3.84 cbm
Size:2x1.2x1.6m
Gross weight:350KG
FAQ

How to adjust the machine's table height?

You can adjust table height by the machine foot,the table height is 600-750mm.

How to adjust the machine to fit diffrent size boxes?

There are some handles on the machine,you can adjust it by these handles.

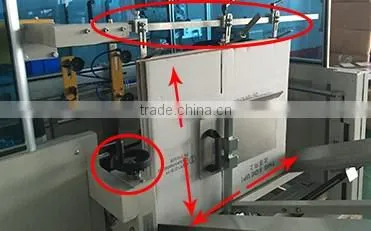

How to adjust for storage boxes?

You can adjust these parts like the picture shows,width and height.
