Tea Bag with Inner Bag, Thread, Tag and Outer Bag produce by Automatic Tea Bag Packing Machine
- 60 Set / Sets per Month
- Shanghai Guangzhou Ningbo
- T/T L/C D/P D/A Credit Card PayPal
-
Maquillageplastic sealing heat shrink packaging machine Seal and shrink the film packaging machine
-
Express deliverybox packing and paste sheet packing machine Box sealing and paste single package all-in-one machine
-
Maquillagemembrane packing machine
-
Bookseal the heat-shrink packaging machine Seal and shrink the film packaging machine
-
Automatic Screw Counting Packing Machine
-
Maquillagemembrane packing machine Gift packageseal and cut the packaging machine
Product Details
| Condition: | New | Function: | Filling, Sealing, Slitting | Application: | Food, Other, Food, Tea, Tea |
| Packaging Type: | Bags, Film, Pouch | Packaging Material: | Paper, Plastic | Automatic Grade: | Automatic |
| Driven Type: | Other, Electric+Pnuematic | Voltage: | 220V/50HZ | Power: | 3.7KW |
| Place of Origin: | Hubei, China | Brand Name: | HaiTaiPack | Model Number: | HT-C169L |
| Dimension(L*W*H): | L1050*W700*H1300MM | Certification: | CE+SGS+GMP | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

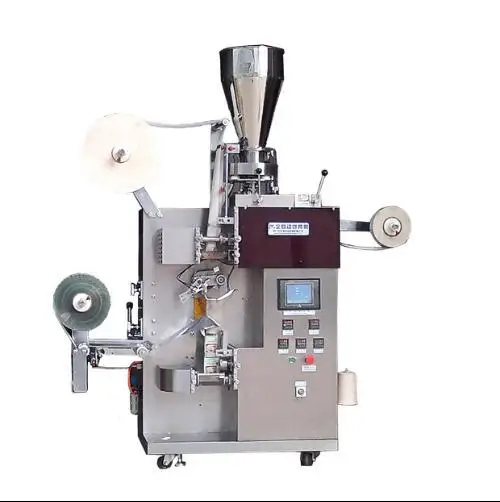

Tea Bag with Inner Bag, Thread, Tag and Outer Bag produce by Automatic Tea Bag Packing Machine
Product Application
1. HT-C169L Automatic Vertical Tea Bag Packing Machine For Inner Bag, Thread, Tag, Outer Bag Adopt particular hanging type filter, 3 sides sealing, direct hangs on the edge of the cup. Better tea brewing taste and beautiful bag shape make it very popular at abroad market.
2. The machine can automatically complete bag making, measuring, filling, sealing, cutting, counting, printing batch number.
3. Use sophisticated control system to adjust machine movements, compact structure and human computer interface design lead to convenient operation, easy adjustment and maintenance.
4. Inner bag uses servo motor to make positioning bag length accurate and stable. Outer bag adopts photoelectric sensor orientation and stepping membrane so that bag length more accurate and artistic.
5. Inner bag is non-woven filter bag with hanging ears, which is convenient and healthy. Sealing adopts advanced ultrasonic sealing, making great sealing effect and beautiful pocket.
Main Features
2. The computer controller has the advantages into setting the length of the bag, the out put alarm and the speed and quantity with buttons;
3. It can equip with date code printer for 1-3 lines according to customers' requirements.
Machine Parts
Name: PLC
Brand: DELTA
Original: China
▲ Program Capacity: 16K steps data register: 10 k words.
▲ Processing speed of PLC is higher than same level products, LD: 0.54μs, MOV: 3.4μs.
▲ In view of the large process capacity, provide efficient processing capacity, 1K steps can be finished within 1 ms.
▲ Provide up to 100 KHZ pulse control, can match various motion control instructions (such as shelter, to standard and immediately change frequency, etc.) applied to various kinds of multi-axis motion control accurately.
▲ Up to 4 layer PLC password protection, to protect the intellectual property rights of the user
Main Features
Name: Frequency Coverter
Brand: Panasonic
Original: Japan
▲ Using vector to control output high torque at low speed
▲ Using A large operation panel, improve the operability
▲ Operation panel is removable type
▲ Standard serial interface RS485
▲ Built-in output short circuit protection circuit
▲ Equipped with high speed current limiting function
▲ High construction and maintenance
Machine Parts
Name: Touch Screen
Brand: WeinView
Original: China Taiwan
▲ 7" 800 x480 TFT LCD Screen
▲ No fan cooling system
▲ Built-in storage memory and calendar
▲ Protection grade IP65 panel
▲ LED backlight
▲ Com2 RS485 support MPI 187.5 K
Main Features
Name: Temperature Controller
Brand: Omron
Original: Japan
▲ Visibility is good (character height: 21.7 mm).
▲ Deep from the front panel: only 60 mm.
▲ Fewer parameters, simple setting.
▲ Sampling time reduced to 250 ms.
1. Receiving 30% down payment, we arrange the production of the specific machine.
2. Production cycle is about 25 work days.
3. After the production finished, we notify customer to pay the 70% commodity price and then we deliver the goods.
4. Transit time to port of loading is about 15 days.
5. FOB and T/T are adopted
1. Provide 1 year complete warrantee and free replacement parts for HT-C169L Automatic Vertical Tea Bag Packing Machine For Inner Bag, Thread, Tag, Outer Bag;
2. Lifetime maintenance services;
3. Free project planning and design services;
4. Free training equipment operators and maintenance personnel;
5. Free debugging of equipment until everything is functional;
6. Free management of equipments' long distance shipping;
7. Free training of equipment maintenance and operating personally;
8. Free new production techniques and formulas.
