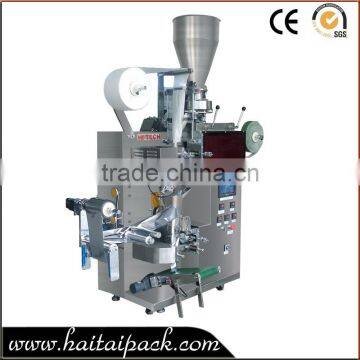

Tea Bag Packing Machine With Label Tea Bag Packaging With Thread

Tea Bag Packing Machine With Label Tea Bag Packaging With Thread

Product Application

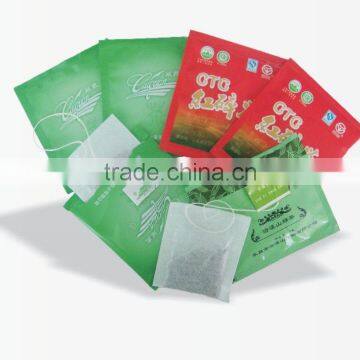

1. Tea Bag Packing Machine With Label Tea Bag Packaging With Thread adopt particular hanging type filter, 3 sides sealing, direct hangs on the edge of the cup. Better tea brewing taste and beautiful bag shape make it very popular at abroad market.
2. The machine can automatically complete bag making, measuring, filling, sealing, cutting, counting, printing batch number.
3. Use sophisticated control system to adjust machine movements, compact structure and human computer interface design lead to convenient operation, easy adjustment and maintenance.
4. Inner bag uses servo motor to make positioning bag length accurate and stable. Outer bag adopts photoelectric sensor orientation and stepping membrane so that bag length more accurate and artistic.
5. Inner bag is non-woven filter bag with hanging ears, which is convenient and healthy. Sealing adopts advanced ultrasonic sealing, making great sealing effect and beautiful pocket.

Main Features

Machine Parts

Name: PLC

Brand: DELTA

Original: China

▲ Program Capacity: 16K steps data register: 10 k words.
▲ Processing speed of PLC is higher than same level products, LD: 0.54μs, MOV: 3.4μs.
▲ In view of the large process capacity, provide efficient processing capacity, 1K steps can be finished within 1 ms.
▲ Provide up to 100 KHZ pulse control, can match various motion control instructions (such as shelter, to standard and immediately change frequency, etc.) applied to various kinds of multi-axis motion control accurately.
▲ Up to 4 layer PLC password protection, to protect the intellectual property rights of the user

Main Features

Name: Frequency Coverter
Brand: Panasonic
Original: Japan
▲ Using vector to control output high torque at low speed
▲ Using A large operation panel, improve the operability
▲ Operation panel is removable type
▲ Standard serial interface RS485
▲ Built-in output short circuit protection circuit
▲ Equipped with high speed current limiting function
▲ High construction and maintenance

Machine Parts

Name: Touch Screen
Brand: WeinView
Original: China Taiwan
▲ 7" 800 x480 TFT LCD Screen
▲ No fan cooling system
▲ Built-in storage memory and calendar
▲ Protection grade IP65 panel
▲ LED backlight
▲ Com2 RS485 support MPI 187.5 K

Main Features

Name: Temperature Controller
Brand: Omron
Original: Japan
▲ Visibility is good (character height: 21.7 mm).
▲ Deep from the front panel: only 60 mm.
▲ Fewer parameters, simple setting.
▲ Sampling time reduced to 250 ms.
