Automatic Vertical Type Double Rollers High Speed Small Bag Seasoning Powder Packing Machine

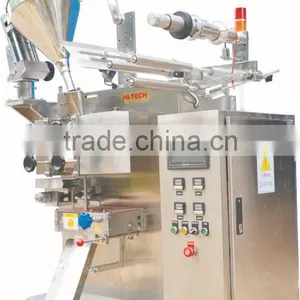

Automatic Vertical Type Double Rollers High Speed Small Bag Seasoning Powder Packing Machine thumbnail-1
Automatic Vertical Type Double Rollers High Speed Small Bag Seasoning Powder Packing Machine thumbnail-2
Automatic Vertical Type Double Rollers High Speed Small Bag Seasoning Powder Packing Machine thumbnail-3
Automatic Vertical Type Double Rollers High Speed Small Bag Seasoning Powder Packing Machine thumbnail-4

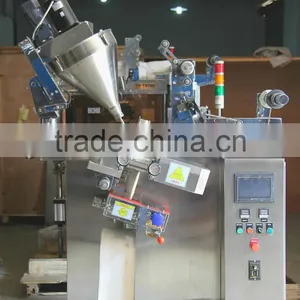

Automatic Vertical Type Double Rollers High Speed Small Bag Seasoning Powder Packing Machine thumbnail-5

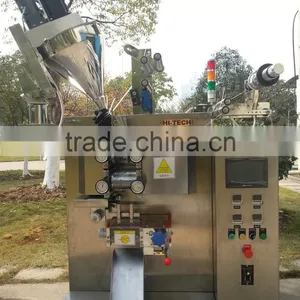

Automatic Vertical Type Double Rollers High Speed Small Bag Seasoning Powder Packing Machine thumbnail-6
Automatic Vertical Type Double Rollers High Speed Small Bag Seasoning Powder Packing Machine photo-1

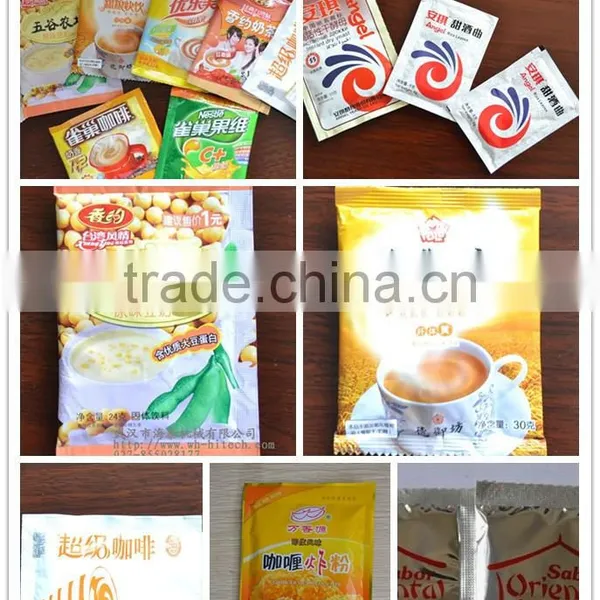

Automatic Vertical Type Double Rollers High Speed Small Bag Seasoning Powder Packing Machine photo-2
Automatic Vertical Type Double Rollers High Speed Small Bag Seasoning Powder Packing Machine photo-3
Automatic Vertical Type Double Rollers High Speed Small Bag Seasoning Powder Packing Machine photo-4

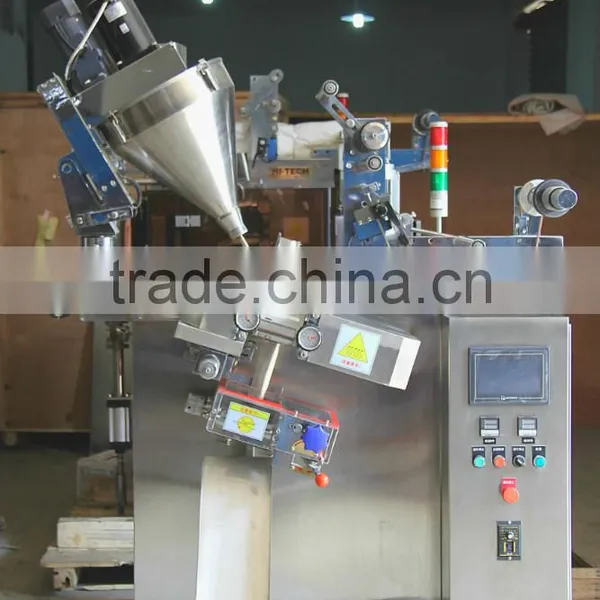

Automatic Vertical Type Double Rollers High Speed Small Bag Seasoning Powder Packing Machine photo-5

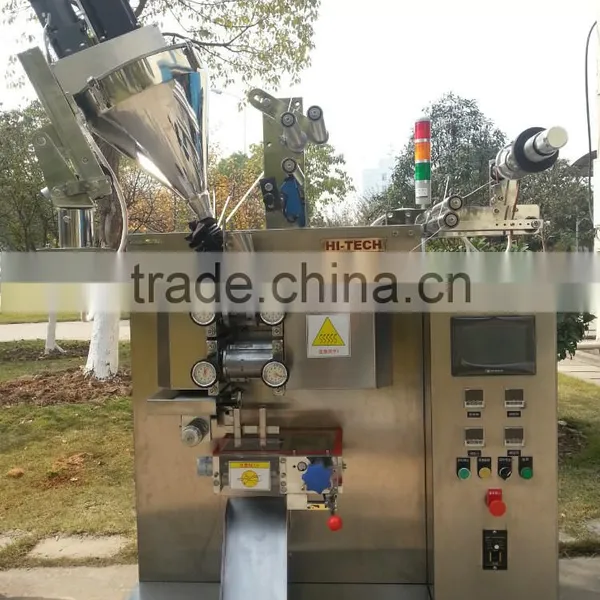

Automatic Vertical Type Double Rollers High Speed Small Bag Seasoning Powder Packing Machine photo-6
US$ 9,000 - 15,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Function:
Embossing, Filling, Gluing, Sealing, Slitting
Application:
Beverage, Chemical, Commodity, Food, Medical
Contact Supplier Request Quote Chat Now
Wuhan Hai Tai Wei Chuang Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Function Embossing, Filling, Gluing, Sealing, Slitting
Application Beverage, Chemical, Commodity, Food, Medical
Packaging Type Bags, Film, Pouch
Packaging Material Paper, Plastic
Automatic Grade Automatic
Driven Type Electric
Voltage 380V
Power 4 KW/AC
Place of Origin Hubei, China
Brand Name Hi-Tech
Model Number HT-K219F-20L
Dimension(L*W*H) L1400mm*W900mm*H1670mm
Certification CE
After-sales Service Provided Engineers available to service machinery overseas



Product Overviews



HT-K219F-20L  automatic vertical type double rollers high speed small bag seasoning powder packing machine with double roller is designed for implementation of the powder materials automatic packaging. This machine adopts advanced industrial computer control system, through the “man-machine dialogue” can be convenient and accurate implement bag size increase or cut short and the adjustment of the packing speed. The English operation interface can help worker simple and clear to finish most function settings.



The machine has a set of longitudinal sealing hot roller, a set of transverse sealing hot roller. The seals adopt roller method, seal pattern is complete and continuous checkerboard pattern, packing materials injected into packing bags quantitative by feed screw. And equipped with ease open bags cutting device, implementation of bag making, filling, sealing, photoelectric automatic calibration, cutting, counting and other else automatic packing processes.





Characteristic

1, High speed and high precision.

2, man-machine dialogue operation interface.

3, setting of bags length can simple and reliable adjustments in a wide-area.

4, photoelectric automatic calibration within three bags.

5, double variable frequency drive, stable and reliable running.

6, roller suppoted by high temperature bearing, perfect sealing, free maintenance, low noise.



Application scope

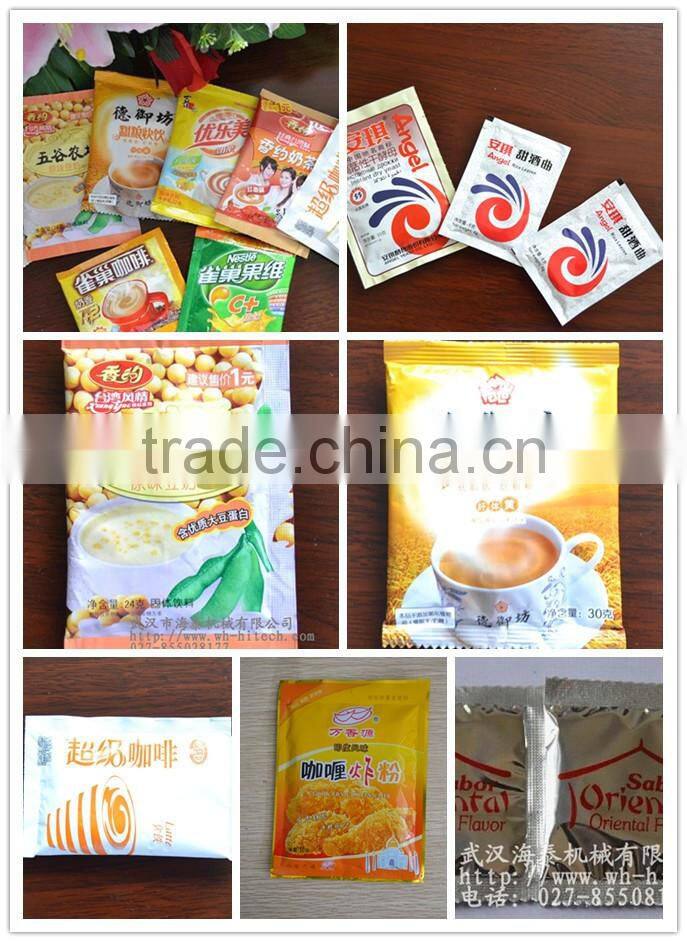

Coffee, Sugar, infusion of drugs, desiccant, spices, seeds, pesticides, and other granular material. .

 automatic vertical type double rollers high speed small bag seasoning powder packing machine





Technical parameters

Bag Size

Length: 50-210mm

Width: 30-200mm

Packing Speed

20-120 Bags/min

Capacity Range

1-200g

Bag Materials

PET/PE,PET/AV/PE, NY/AL/PE,NY/PE, etc

Mechanical Power

4KW/AC 380V

Mechanical Dimensions

L1400mm*W900mm*H1670mm

Sealing Method

Three or four edges sealing

Net Weight

 400Kg

Optional Device

Product conveying belt, Automatic feeding system,

Liquid level display device, Mixing system,

Third section electric control system, Code machine/Printing machine,

Voltage regulator, Air compressor, Back suction device

automatic vertical type double rollers high speed small bag seasoning powder packing machine

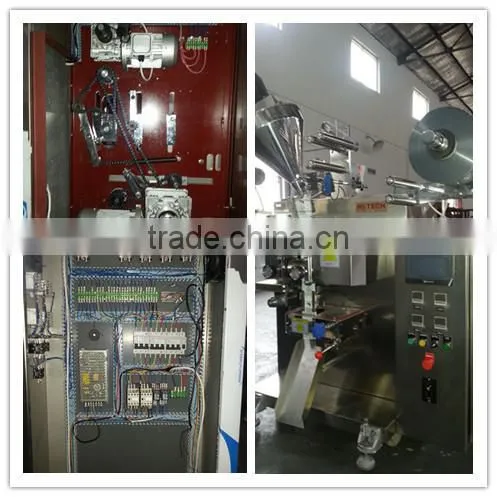

Electrical control system

Longitudinal sealing inverter:

0.75KW Panasonic inverter

Transverse sealing incerter:

1.5KW Panasonic inverter

Touch screen:

WeinView touch screen

PLC Module:

Delta PLC

Temperature Controller:

Omron

AC contactor:

DELIXI

Relays:

Omron

Color logo recognition sensor:

BALEFU

Angle encoder:

Seiko

Circuit protector:

DELIXI

Main Motor:

YUQIU

Type 80 vertical gear reducer:

YUQIU

Type 50 horizontal gear reducer:

YUQIU

Solid state relays:

Tianhao

















































Partners

automatic vertical type double rollers high speed small bag seasoning powder packing machine





Processing

automatic vertical type double rollers high speed small bag seasoning powder packing machine





After Sales Service

·Find our products through  or https://img13.fr-trading.com

· One year warranty for the whole machine

· Free equipment installation and debugging

·After one year, we can help you to maintain the machine and the accessories are provided omle one the cost price

·Every 3 years, we can help to overhaul the machine freely (labor)

·We can provide internship service and help you train the operator and machunic

·Free production technology and process configuration
