The machine has a set of longitudinal sealing hot roller, a set of transverse sealing hot roller,
a set of transverse sealing cold roller. The seals adopt roller method, the longitudinal seals pattern

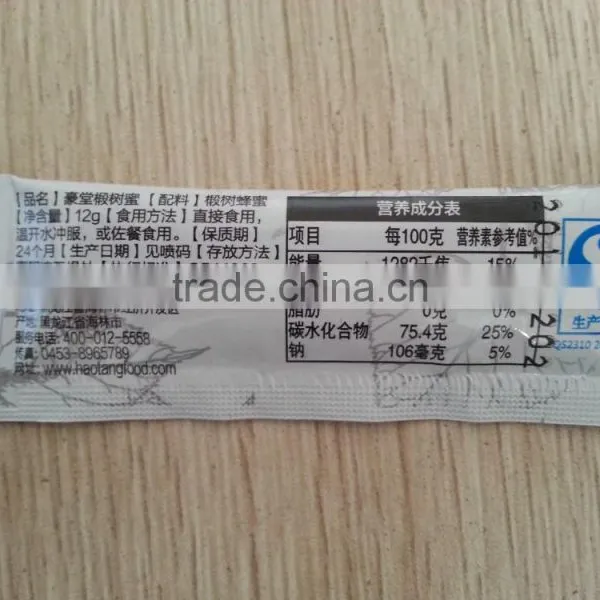

use checkerboard pattern with leakproof line, transverse seals pattern use checkerboard pattern
with leakproof line or flat seal with leakproof line, according to different material, the packing
materials adopt different metering device to inject into bags.Cut off methods can use each of
flat knife, serrated knife, point marking knife as requirement.And equipped with ease open bags
cutting device.
HT-Y319F series mechanical breakthrough adopts localizable high performance double frequency
conversion PLC control system, through "man-machine dialogue", make the adjustments for
replacing products become simple, accurate and stable, English interface making the setting
operations simple, intuitive, and reliable.
Characteristic
1, High speed and high precision.
2, man-machine dialogue operation interface.
3, setting of bags length can simple and reliable adjustments in a wide-area.
4, photoelectric automatic calibration within three bags.
5, double variable frequency drive, stable and reliable running.
6, roller suppoted by high temperature bearing, perfect sealing, free maintenance, low noise.
Application scope

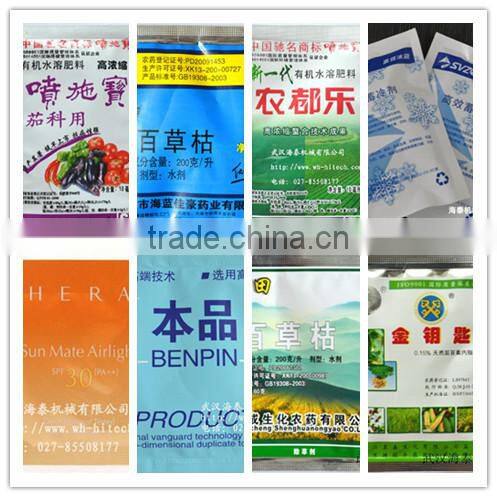

Pesticides, Sauce, Edible oil and other liquid materials.
Technical parameters
Bag Size |
Length: 50-210mm |
Width: 30-150mm |
Packing Speed |
20-120 Bags/min |
|
Capacity Range |
1-100ml |
|
Bag Materials |
PET/PE,PET/AV/PE, NY/AL/PE,NY/PE, etc |
|
Mechanical Power |
3.8KW/AC 380V |
|
Mechanical Dimensions |
L1400mm*W1000mm*H1800mm |
|
Sealing Method |
Three or four edges sealing |
|
Net Weight |
500Kg |
|
Optional Device |
Product conveying belt, Automatic feeding system, Liquid level display device, Mixing system, Third section electric control system, Code machine/Printing machine, Voltage regulator, Air compressor, Back suction device |
|
Electrical control system
Longitudinal sealing inverter: |
0.75KW Panasonic inverter |
Transverse sealing incerter: |
1.5KW Panasonic inverter |
Touch screen: |
WeinView touch screen |
PLC Module: |
Delta PLC |
Temperature Controller: |
Omron |
AC contactor: |
DELIXI |
Relays: |
Omron |
Color logo recognition sensor: |
BALEFU |
Angle encoder: |
Seiko |
Circuit protector: |
DELIXI |
Main Motor: |
YUQIU |
Type 80 vertical gear reducer: |
YUQIU |
Type 50 horizontal gear reducer: |
YUQIU |
Solid state relays: |
Tianhao |
Partners
Processing
After Sales Service
·Find our products through or https://img13.fr-trading.com
· One year warranty for the whole machine
· Free equipment installation and debugging
·After one year, we can help you to maintain the machine and the accessories are provided omle one the cost price
·Every 3 years, we can help to overhaul the machine freely (labor)
·We can provide internship service and help you train the operator and machunic
·Free production technology and process configuration
