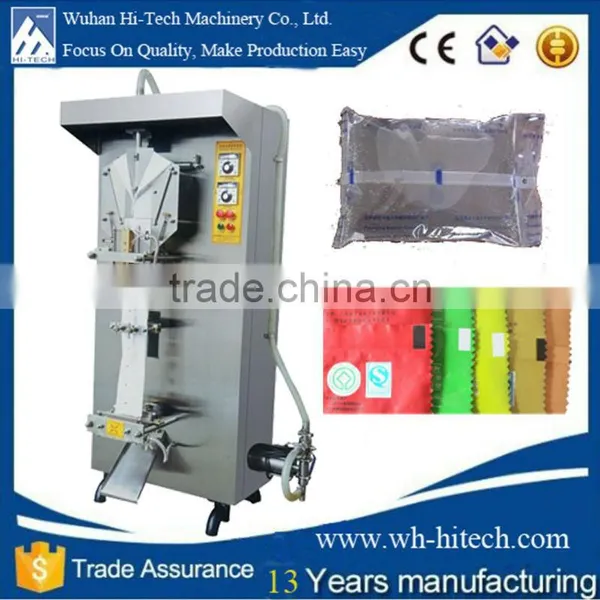

automatic spouted pouch liquid packing machine
- 100 Set / Sets per Month
- SHANGHAI GUANGZHOU
- T/T L/C D/P D/A Credit Card PayPal
- Vegetablesmultifunctional packaging equipment
- Combined packaging equipment Dressmulti-functional packaging machine
- Cloud warehousemultifunction packaging machine Dressmultifunctional packaging equipment
- Sweetpackaging integrated equipment Express deliverycombined packaging equipment
- Cloud warehousemultifunction packaging machine Gift packagemultifunctional packaging equipment
- Wet tissuepackaging integrated machinery E-commercecombined packaging equipment
Product Details
Condition: | New | Function: | Filling, Labeling, Sealing, Slitting | Application: | Chemical, Commodity, Food, Medical |
Packaging Type: | Bags, Film, Foil, Pouch | Packaging Material: | Plastic, Other, Plastic, Foil | Automatic Grade: | Automatic |
Driven Type: | Electric | Voltage: | 220/380V | Power: | 2Kw |
Place of Origin: | Hubei, China | Brand Name: | HI-TECH | Model Number: | HT-XY-100 |
Dimension(L*W*H): | L1400mm*W1000mm*H1800mm | Certification: | CE | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
This machine is widely used for various kinds of liquid packing. such as: milk, soya-milk, peanut milk, juice, drinks, ice bag drinks, soysauce, vinegar, yellow rice wine, and etc. Use single-layer PE film or two-layer or three-layer co-extrusion film as packing materials.
1. High speed, high precision, can reach 2000 bags/ hour for 99% precision.
2. Bag length set pattern wide-area adjustable, adjustment is simple and reliable.
3. Widely volume capacity, from 50-1000ml as per as production required.
4. Simple to operation and maintain.
Bag Size | L:50-320mm W:30-240mm |
Packing Speed | 20-35 bags/min |
Weight Range | 50-1000ml |
Bag Material | PET/PEPET/AV/PE,NY/PE,ETC. |
Power | 1.2KW, 380/220V |
Mechanical Dimensions | 1050mm(L)X700mm(W)X1900mm(H) |
Sealing Form | Back Seal |
Net Weight | 450KG |
In our machine, there are lots of electronic parts, some of them come from chinese best manufacturers and some from japan, german. They have different function to make the whole machine running well, we making a simple list to show these parts.
Name | Unit | Qty. | Note |
The host standard configuration | |||
Main motor | Set | 1 | 0.37KW |
Temperature controller | Set | 1 |
|
Heat Seal Device | Set | 1 | 0.9KW |
Non-stick cloth | Set | 1 |
|
Main road controller and accessories | Set | 1 |
|
Ultraviolet germicidal lamp | Set | 1 |
|
| Set | 1 |
|

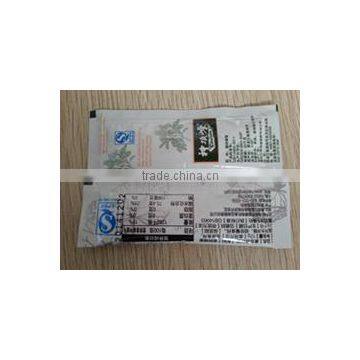

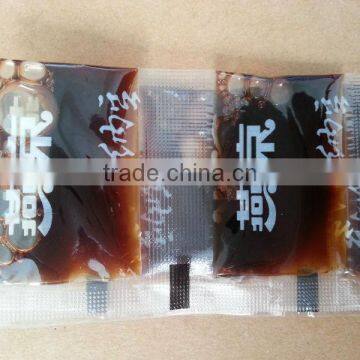

Our machine can be applied to following scope & products, include Food, Medicine, Pesticide or some other related liquid materials (As shown)
We have a group of Seasoned workers, their average age is 40 years old, and the chief engineer is Chinese first batch of personnel that engaged in design and manufacture of packaging machinery industry, our company also spends resources for the cultivation of young engineers. With them, we can promise you the high quality and best after-sale service. All our processing flows comply with related standards to ensure our products qualified leave factory, there are some pictures show the processing.
We use plywood case as the normal packaging case, if client or nation standard requires, we can offer fumigating wooden case too. Shipping by sea is the normal type and urgent by air.
·Find our products through or http://hi-techmachinery.en.china.cn
· One year warranty for the whole machine
· Free equipment installation and debugging
·After one year, we can help you to maintain the machine and the accessories are provided omle one the cost price
·Every 3 years, we can help to overhaul the machine freely (labor)
·We can provide internship service and help you train the operator and machunic
·Free production technology and process configuration
Wuhan Hai Tai Wei Chuang Technology Co., Ltd. located in the Daijiashan Science&Technology Park of Wuhan city Since 2002. We have 13 years of production experience.Our company is one of the most professional vertical type small bag packing machine enterprises that integrate research and development,manufacturing of single packing machine & packing line. We has been devoting to the develop of domestic and international markets. It has dozens of distributors and after service outlets spreading around China, providing good pre-sales and after-sales services for the customers.
Looking forward to establishing good business relationship with you on mutual benefit!
Always welcome!
We have a group of Seasoned workers, their average age is 40 years old, and the chief engineer is Chinese first batch of personnel that engaged in design and manufacture of packaging machinery industry, our company also spends resources for the cultivation of young engineers. With them, we can promise you the high quality and best after-sale service.
The salemen in our company are excellent too, we often join Alibaba, Baidu, chamber of commerce and oher related organization's training and activity, our company also give us a lot of training about machine's knowledge, our goal is to be the team that can solve clients' questions at the first time.
Partners
In china, our company has a lot of partners, and cooperating with each other, we offer solution to partners as per their requirements, and they give us market popularity, each takes what he needs.
We also have some foreign partners in Australia, Russia, Brazil, East-south asia and etc.. Now we spend a lot of resources, want to develop more foreign partners, become a trustworthy outstanding supplier, get more market recognition.
The following picture shows our main partners logo.
Thank you for your patient reading, if you are interested in our product, please contact me with following ways:
Tel: +86 27 85508177 - 811
Mob: +86 17786511657 / 15007142680
Fax: +86 27 85508277
Wechat: hjjk12456
WhatsAPP: +86 1500714280
Viber: +86 15007142680
QQ: 403145583
Hope a long term friendship with you guys!!
