Product Details
Condition | New | Function | Embossing, Filling, Gluing, Sealing, Slitting | |
Application | Beverage, Chemical, Commodity, Food, Medical | Packaging Type | Bags, Film, Pouch | |
Packaging Material | Paper, Plastic | Automatic Grade | Automatic | |
Driven Type | Electric | Voltage | 380V | |
Power | 4 KW/AC | Place of Origin | Hubei, China | |
Brand Name | Hi-Tech | Model Number | HT-K219F-P | |
Dimension(L*W*H) | L1400mm*W1000mm*H1800mm | Certification | CE | |
After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

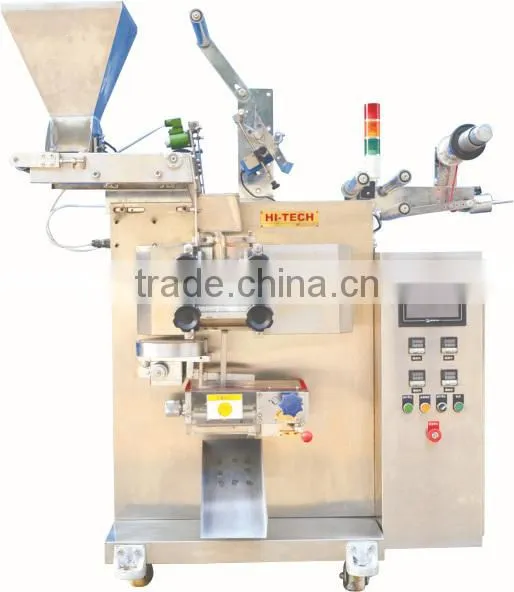

HT - K219F - P vertical triple rollers small bag packing machine for seed is a new feeding model machine with exclusive design and development and has patented technical that made by Wuhan Hi-tech machinery Co., Ltd.,for the first time using the numerical control to adjust feeding measurement and accuracy, can realize online adjustment between 1-50g range, make the product packaging specifications frequently change is not complicated any more.The machine through the touch LCD screen, can easily and accurately complete adjustments for bag size, packing capacity, packing speed and automatic calibration function.Adjusting the bag length and number online, change specifications operation is simple, without other parts replacement, no material wear, no pollution materials.
Characteristic
1, High speed and high precision.
2, man-machine dialogue operation interface.
3, setting of bags length can simple and reliable adjustments in a wide-area.
4, photoelectric automatic calibration within three bags.
5, double variable frequency drive, stable and reliable running.
6, roller suppoted by high temperature bearing, perfect sealing, free maintenance, low noise.
Application scope
Coffee, Sugar, infusion of drugs, desiccant, spices, seeds, pesticides, and other granular material. .
Technical parameters
Bag Size | Length: 50-210mm | Width: 30-110mm |
Packing Speed | 20-120 Bags/min | |
Capacity Range | 1-50g | |
Bag Materials | PET/PE,PET/AV/PE, NY/AL/PE,NY/PE, etc | |
Mechanical Power | 4KW/AC 380V | |
Mechanical Dimensions | L1400mm*W900mm*H1670mm | |
Sealing Method | Three or four edges sealing | |
Net Weight | 400Kg | |

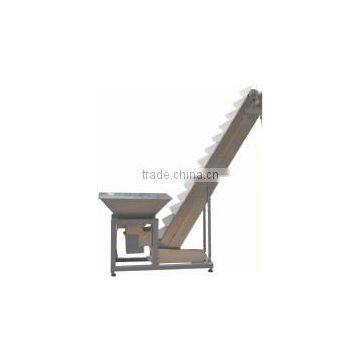

Optional Device | Product conveying belt, Automatic feeding system, Liquid level display device, Mixing system, Third section electric control system, Code machine/Printing machine, Voltage regulator, Air compressor, Back suction device |
Electrical control system
Longitudinal sealing inverter: | 0.75KW Panasonic inverter |
Transverse sealing incerter: | 1.5KW Panasonic inverter |
Touch screen: | WeinView touch screen |
PLC Module: | Delta PLC |
Temperature Controller: | Omron |
AC contactor: | DELIXI |
Relays: | Omron |
Color logo recognition sensor: | BALEFU |
Angle encoder: | Seiko |
Circuit protector: | DELIXI |
Main Motor: | YUQIU |
Type 80 vertical gear reducer: | YUQIU |
Type 50 horizontal gear reducer: | YUQIU |
Solid state relays: | Tianhao |
Partners
Processing
After Sales Service
·Find our products through or http://hi-techmachinery.en.china.cn
· One year warranty for the whole machine
· Free equipment installation and debugging
·After one year, we can help you to maintain the machine and the accessories are provided omle one the cost price
·Every 3 years, we can help to overhaul the machine freely (labor)
·We can provide internship service and help you train the operator and machunic
·Free production technology and process configuration
