10ml Eye Drop Filling Capping Machine and Labeling Machine
- SHANGHAI GUANGZHOU QUANZHOU NINGBO
- T/T L/C D/P D/A Money Gram Credit Card PayPal
You May Like
-
High Quality Dry Powder Filling Machine Small Powder Filling Machine
-
Chinese Wholesale Manual Tube Filling Sealing Machine for Mascara/Hair Conditioner/Cream Paste
-
HI-TECH Big Does Semi-Automatic Cans/Bags Silage Packing Machine
-
on Spot After Sales Service Sugar Filling and Packing Machine
-
High Quality Pesticide Powder Filling Machine
-
Best Service Carbon Powder Bottle Filling Equipment
Product Details
| Condition | New | Application | Apparel, Beverage, Chemical, Food, Medical | |
| Packaging Type | Barrel, Bottles, Cans | Packaging Material | Glass, Metal, Plastic | |
| Automatic Grade | Automatic | Driven Type | Electric | |
| Voltage | 220V/380V | Power | 3KW | |
| Place of Origin | Hubei, China | Brand Name | HI-TECH | |
| Model Number | HT-Y2 | Dimension(L*W*H) | 2200X2100X2200MM | |
| Weight | 500kg | Certification | CE ISO | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

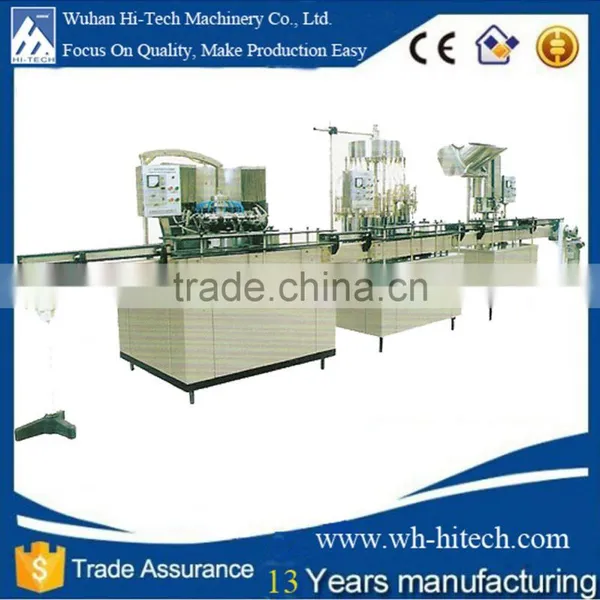

10ml Eye Drop Filling Capping Machine and Labeling Machine
Usage:
This machine is mainly suitable for automatic filling, stoppering and screw capping of electronic cigarette liquid, e-liquid , eye drops, nail polish, eye shadow, essential oil, with filling volume less then 50 ml.
Machine features:
1.This machine adopts constant torque screw caps, equipped with automatic sliding device, to prevent the cap damage.
2.Peristaltic pump filling, measuring precision, convenient manipulation.
3.Filling system has function of suck back, avoid liquid leak through.
4.Color touch screen display, PLC control system, no bottle no filling, no adding plug, no capping.
5.Adding plug device can choose fixed mold or mechanical vacuum mold.
6.Machine body is made by 304 stainless steel, easy to dismantle and clean, full compliance with GMP requirements.
Model | HT-Y2 | HT-Y4 |
Capacity | 15-40 bottles/min | 30-80 bottles/min |
Filling volume | 10-50ml | 10-50ml |
Filling head | 2 | 4 |
Pass rate | ≥ 98% | ≥ 98% |
Power supply | 1ph 220V, 50/60Hz | 1ph 220V, 50/60Hz |
Power | 2.5 KW | 2.8 KW |
Overall dimension | 1900 × 1800 ×1600mm | 2200 × 2100 × 1600mm |
Net weight | 500kg | 650kg |
In our machine, there are lots of electronic parts, some of them come from chinese best manufacturers and some from japan, german. They have different function to make the whole machine running well, we making a simple list to show these parts.
Longitudinal sealing inverter: | 0.75KW Panasonic inverter |
Transverse sealing incerter: | 1.5KW Panasonic inverter |
Touch screen: | WeinView touch screen |
PLC Module: | Delta PLC |
Temperature Controller: | Omron |
AC contactor: | DELIXI |
Relays: | Omron |
Color logo recognition sensor: | BALEFU |
Angle encoder: | Seiko |
Circuit protector: | DELIXI |
Main Motor: | YUQIU |
Type 80 vertical gear reducer: | YUQIU |
Type 50 horizontal gear reducer: | YUQIU |
Solid state relays: | Tianhao |

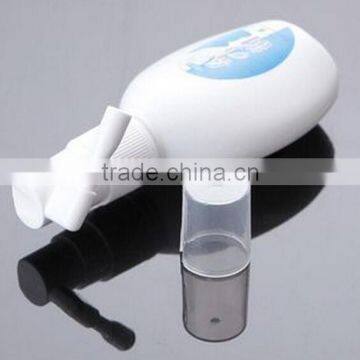

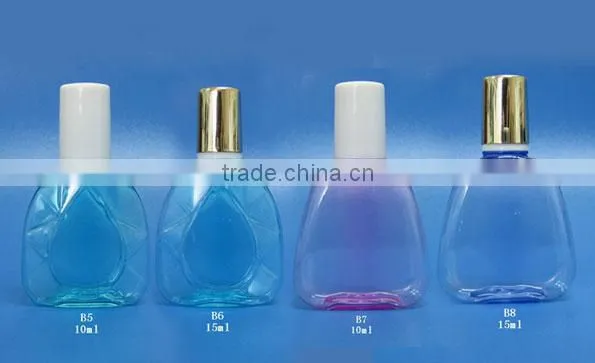

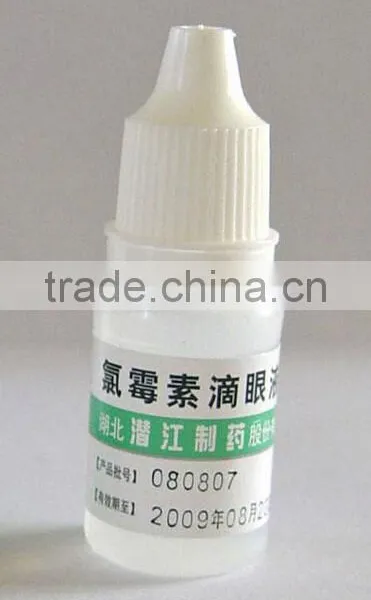

Our machine can be applied to following scope & products, include Food, Medicine, Pesticide or some other related liquid materials (As shown)
We have a group of Seasoned workers, their average age is 40 years old, and the chief engineer is Chinese first batch of personnel that engaged in design and manufacture of packaging machinery industry, our company also spends resources for the cultivation of young engineers. With them, we can promise you the high quality and best after-sale service. All our processing flows comply with related standards to ensure our products qualified leave factory, there are some pictures show the processing.
We use plywood case as the normal packaging case, if client or nation standard requires, we can offer fumigating wooden case too. Shipping by sea is the normal type and urgent by air.
·Find our products through or http://hi-techmachinery.en.china.cn
· One year warranty for the whole machine
· Free equipment installation and debugging
·After one year, we can help you to maintain the machine and the accessories are provided omle one the cost price
·Every 3 years, we can help to overhaul the machine freely (labor)
·We can provide internship service and help you train the operator and machunic
·Free production technology and process configuration
Wuhan Hai Tai Wei Chuang Technology Co., Ltd. located in the Daijiashan Science&Technology Park of Wuhan city Since 2002. We have 13 years of production experience.Our company is one of the most professional vertical type small bag packing machine enterprises that integrate research and development,manufacturing of single packing machine & packing line. We has been devoting to the develop of domestic and international markets. It has dozens of distributors and after service outlets spreading around China, providing good pre-sales and after-sales services for the customers.
Looking forward to establishing good business relationship with you on mutual benefit!
Always welcome!
We have a group of Seasoned workers, their average age is 40 years old, and the chief engineer is Chinese first batch of personnel that engaged in design and manufacture of packaging machinery industry, our company also spends resources for the cultivation of young engineers. With them, we can promise you the high quality and best after-sale service.
The salemen in our company are excellent too, we often join Alibaba, Baidu, chamber of commerce and oher related organization's training and activity, our company also give us a lot of training about machine's knowledge, our goal is to be the team that can solve clients' questions at the first time.
Partners
In china, our company has a lot of partners, and cooperating with each other, we offer solution to partners as per their requirements, and they give us market popularity, each takes what he needs.
We also have some foreign partners in Australia, Russia, Brazil, East-south asia and etc.. Now we spend a lot of resources, want to develop more foreign partners, become a trustworthy outstanding supplier, get more market recognition.
The following picture shows our main partners logo.
