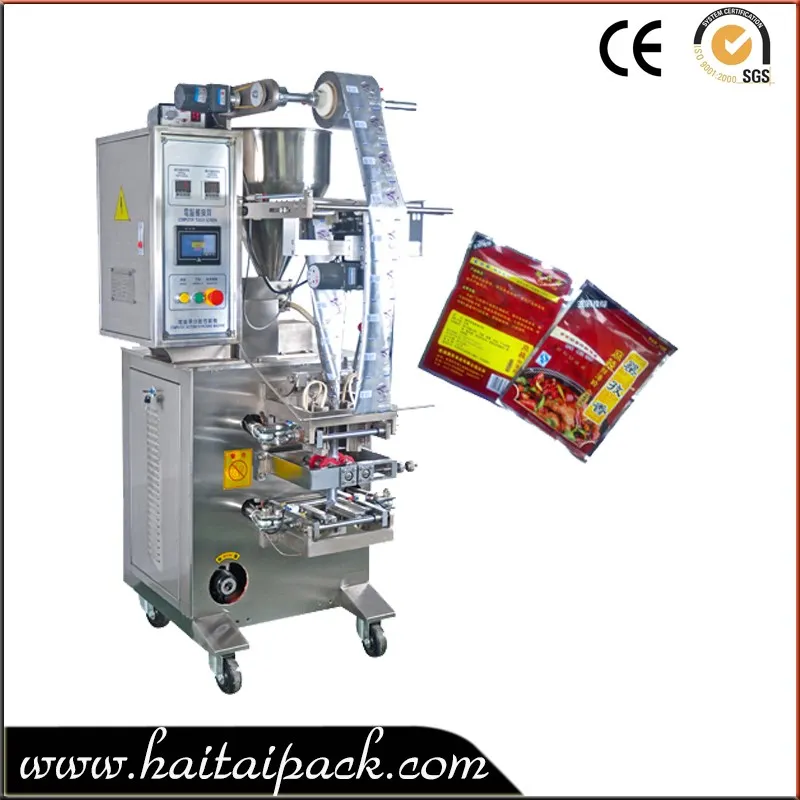

15g Automatic Ground Coffee Bag Filling Packing Sealing Machine

15g Automatic Ground Coffee Bag Filling Packing Sealing Machine

Product Application

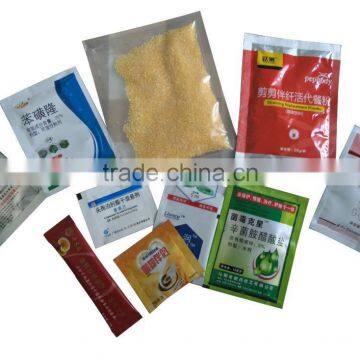

Coffee packing machine is suitable for automatic packing of loose, non-sticky, thick powder products in the fields of pharmacy, food industry, agricultural chemical and daily industry. For example: flour, curry powder, bean powder,pure milk powder etc.powder which is difficult to flow.
Screw filling material metering, in measuring range, made up of several kinds of different specifications of the screw to complete different measurement range. Controlled by stepper motor and drive motor power supply, high repeat accuracy can be obtained.

Main Features

1) Be able to weight, bag-making, filling, sealing, cutting, lot number automatically.
2) It has color control system which can get the complete trade mark design
(Photo electricity control system).
3) The machine fix stepper motor controller, its advantage is precise, needless to adjust other parts
4) Intelligent temperature control by temperature controller to make heat balance better. Use bilingual display screen control system and stainless steel cabinet
5) Fine packaging performance, low noise, clear sealing texture and strong sealing performance
6)With safe plastic box on rotating blade to avoid hurting operators hands
7) Need to change new temperature controller, blade& pressing mode only after 3 years continuous operation,2 shifts a day and other parts is still good and safe freely)
8) With printer (to be able to code the date and batch number) and rotating blade (be able to adjust the length of bag and shape of bag notch edge packing.

Machine Parts

Name: PLC

Brand: DELTA

Original: China

▲ Program Capacity: 16K steps data register: 10 k words.
▲ Processing speed of PLC is higher than same level products, LD: 0.54μs, MOV: 3.4μs.
▲ In view of the large process capacity, provide efficient processing capacity, 1K steps can be finished within 1 ms.
▲ Provide up to 100 KHZ pulse control, can match various motion control instructions (such as shelter, to standard and immediately change frequency, etc.) applied to various kinds of multi-axis motion control accurately.
▲ Up to 4 layer PLC password protection, to protect the intellectual property rights of the user

Main Features

Name: Frequency Coverter
Brand: Panasonic
Original: Japan
▲ Using vector to control output high torque at low speed
▲ Using A large operation panel, improve the operability
▲ Operation panel is removable type
▲ Standard serial interface RS485
▲ Built-in output short circuit protection circuit
▲ Equipped with high speed current limiting function
▲ High construction and maintenance

Machine Parts

Name: Touch Screen
Brand: WeinView
Original: China Taiwan
▲ 7" 800 x480 TFT LCD Screen
▲ No fan cooling system
▲ Built-in storage memory and calendar
▲ Protection grade IP65 panel
▲ LED backlight
▲ Com2 RS485 support MPI 187.5 K

Main Features

Name: Temperature Controller
Brand: Omron
Original: Japan
▲ Visibility is good (character height: 21.7 mm).
▲ Deep from the front panel: only 60 mm.
▲ Fewer parameters, simple setting.
▲ Sampling time reduced to 250 ms.
