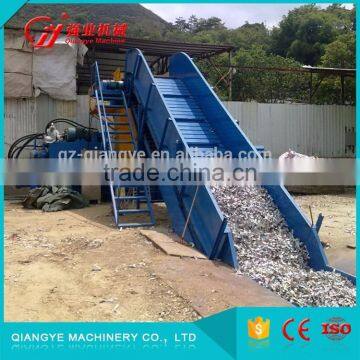

Help Center150Ton Automatic Baling Machine
Related Products
150TMain technical parameters:
1. Input & output
Raw material: waste paper, carton
Completed product: waste paper bale, carton bale
Output capacity: 12-14bale/hr.
2. Energy consumption:
Electricity consumption:
Main power:2x37kw
Conveyor power:7.5kw
Cooling tower system:1.5kw
Qty. of labors: 1-2 persons
3. Basic Infrastructure
3.1 Electricity supply:380V/50Hz,200V/50HZ,220V/60HZ,440V/60HZ(option)
3.2 Workshop size: At least 16m (length)×15m(width)×4.5m(height) laid in a straight line
3.3 one part of the conveyor(4meter long) need to put in the group(about 1meter deep)
3.4 Necessary lifting plants for loading and unloading machines during install nation and testing
Configuration for the automatic baler:
Part | Component | Qty. | Function |
A | baler | 1 | Baling the material |
B | conveyor | 1 | Delivery the material |
C | Cooling tower | 1 | Cooling the temperature of the oil |
bale volume: L*W*H(mm)1300*1100*1100mm
bale weight:about 800-1000kg
max work pressure:150Ton
motor power:37*2kw
conveyor power:7.5kw
capacity:12-14 bale/h
overall dimension: L*W*H(mm)8680*4050*4500mm
space for installation of conveyor:L*W*H(mm)12400*13800*4600mm
total weight:32000kg
wire number: 5
tie wire system: automatic
electric panel: Japanese appliance
conveyors: compose by iron plate
size:11.8meter(Length)x1.8meter(width)
oil tank capacity: 1530kg(68# hydraulic oil)
cooling system: water cooling
Guarantee period and after-sales services:One year .
During this guarantee period, we will provide spare parts without any charge in case of quality discrepancy caused by us. If the malfunctions are caused by your incorrect operations, we will provide the buyer spare parts at cost price.
| Model | Bale Volume L*W*H(mm) | Max Work Pressure(KN) | Motor Power (KW) | Conveyor Power(KW) | Capacity (Pack/h) | Overall Dimension L*W*H(mm) | Space for installation of Conveyor L*W*H(mm) | Total Weight (KG) |
| ZYB-150T | 1300* 1000*1100 | 1500kn | (37/45)*2kw | 7.5-11kw | 12-16 | 8680*4050*4500 | 12400*13800*4600 | 32000kg |
1300* 1100*914 | 1500kn | (37/45)*2kw | 7.5-11kw | 12-16 | 8680*4150*4314 | 12400*13800*4500 | 31500kg | |
1300* 1100*1100 | 1500kn | (37/45)*2kw | 7.5-11kw | 12-16 | 8680*4150*4500 | 12400*13800*4600 | 33000kg | |
| ZYB-120T | 1200* 914*914 | 1200kn | 37/45kw | 7.5kw | 8-12 | 7350*3680*4200 | 11400*12800*4200 | 24000kg |
| ZYB-100T | 1000* 660*914 | 1000kn | 30kw | 5.5-7.5kw | 8-12 | 6860*3230*3900 | 10700*12000*3900 | 20000kg |
