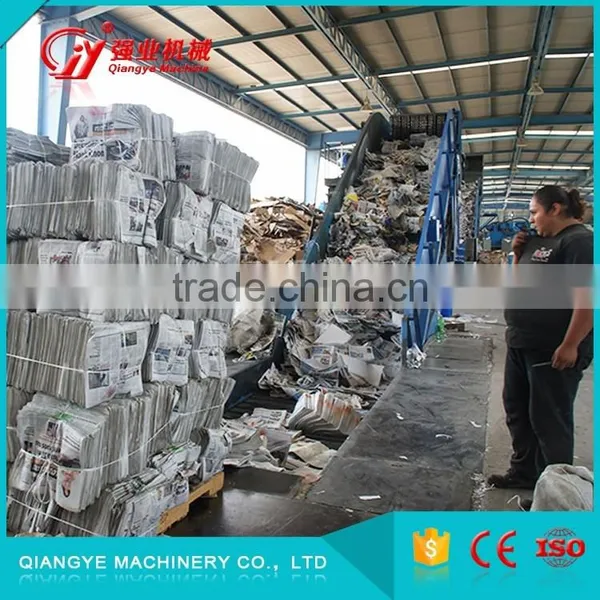

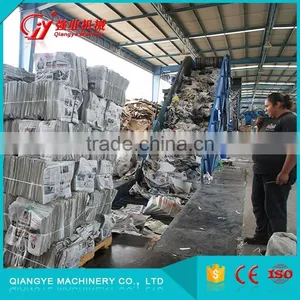

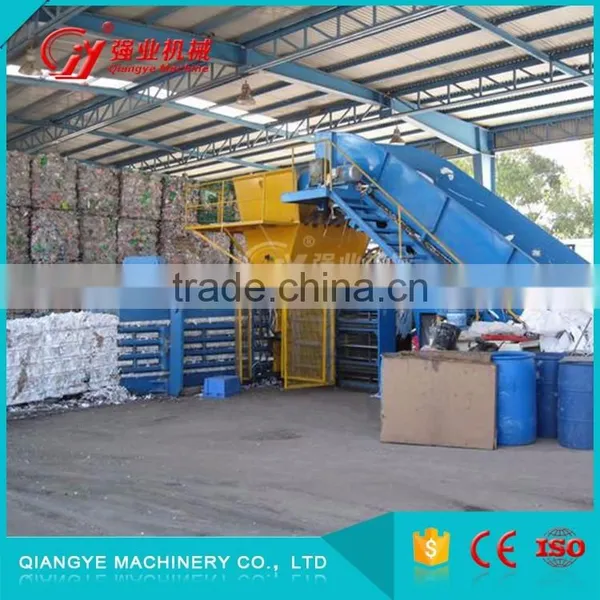

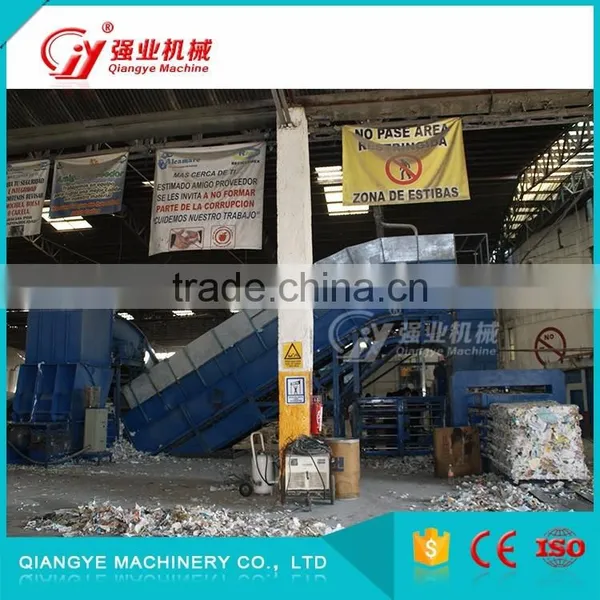

Waste Paper Baling Machine(150T Automatic Baler)

150TMain technical parameters:

1. Input & output

Raw material: waste paper, carton

Completed product: waste paper bale, carton bale

Output capacity: 12-14bale/hr.

2. Energy consumption:

Electricity consumption:

Main power:2x37kw

Conveyor power:7.5kw

Cooling tower system:1.5kw

Qty. of labors: 1-2 persons

3. Basic Infrastructure

3.1 Electricity supply:380V/50Hz,200V/50HZ,220V/60HZ,440V/60HZ(option)

3.2 Workshop size: At least 16m (length)×15m(width)×4.5m(height) laid in a straight line

3.3 one part of the conveyor(4meter long) need to put in the group(about 1meter deep)

3.4 Necessary lifting plants for loading and unloading machines during install nation and testing

 Configuration for the automatic baler:

bale volume: L*W*H(mm)1300*1100*1100mm

bale weight:about 800-1000kg

max work pressure:150Ton

motor power:37*2kw

conveyor power:7.5kw

capacity:12-14 bale/h

overall dimension: L*W*H(mm)8680*4050*4500mm

space for installation of conveyor:L*W*H(mm)12400*13800*4600mm

total weight:32000kg

wire number: 5

tie wire system: automatic

electric panel: Japanese appliance

conveyors: compose by iron plate

size:11.8meter(Length)x1.8meter(width)

oil tank capacity: 1530kg(68# hydraulic oil)

cooling system: water cooling

Guarantee period and after-sales services:One year .

During this guarantee period, we will provide spare parts without any charge in case of quality discrepancy caused by us. If the malfunctions are caused by your incorrect operations, we will provide the buyer spare parts at cost price.
