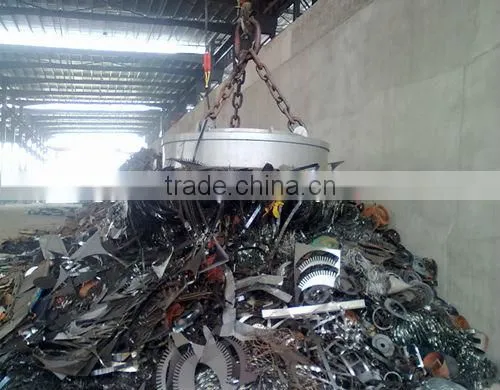

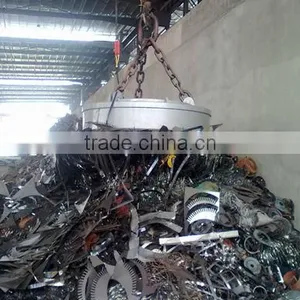

Made In China Small Scrap Metal Lifting Electromagnet
Main technical data for normal temperature type(used under normal temperature, power-on sustaining rate TD-60%, DC-220V)
Model Attention | MW5- 70L/1 | MW5- 110L/1 | MW5- 130L/1 | MW5- 150L/1 | MW5- 165L/1 | MW5- 180L/1 | MW5- 210L/1 | MW5- 240L/1 | ||
dimension | A | 700 | 1100 | 1300 | 1500 | 1650 | 1800 | 2100 | 2400 | |
B | 800 | 1080 | 1210 | 1220 | 1230 | 1470 | 1800 | 2020 | ||
Mass (kg) | 500 | 1250 | 2050 | 2700 | 3400 | 4100 | 6800 | 9000 | ||
Power | 3.2 | 7 | 11.9 | 15.6 | 19.8 | 22.4 | 27.9 | 33.9 | ||
Cold-state current (A) | 14.7 | 35.1 | 54 | 71 | 90 | 102.4 | 127 | 154 | ||
lifting capacity (kg) | steel ball | 2500 | 6500 | 8500 | 11000 | 13000 | 14500 | 17000 | 26000 | |
steel ingot | 380/200 | 1000/800 | 1400/1100 | 1900/1500 | 2300/1800 | 2750/2100 | 3200/2500 | 4800/3800 | ||
steel scrap | 120/100 | 450/400 | 700/600 | 1100/900 | 1350/1040 | 1600/1350 | 2000/1600 | 2850/2250 | ||
Note: The technical data of lifting electromagnet used for diving is same as that of the normal temperature type electromagnet.
Main technical data for high frequency type(used under normal temperature, power-on sustaining rate TD-75%, DC-220V)
Model Attention | MW5- 110L/1-75 | MW5- 130L/1-75 | MW5- 150L/1-75 | MW5- 165L/1-75 | MW5- 180L/1-75 | MW5- 210L/1-75 | MW5- 240L/1-75 | ||
dimension | A | 1100 | 1300 | 1500 | 1650 | 1800 | 2100 | 2400 | |
B | 1270 | 1290 | 1360 | 1670 | 1600 | 1900 | 2020 | ||
Mass (kg) | 1500 | 2280 | 3180 | 3840 | 4690 | 7500 | 9800 | ||
Power (kw) | 6.1 | 9 | 11.3 | 12.2 | 16.3 | 21.7 | 25.9 | ||
Cold-state current (A) | 27.7 | 40.9 | 51.4 | 55.5 | 74.1 | 98.6 | 117.7 | ||
lifting capacity (kg) | steel ball | 6500 | 8500 | 11000 | 12500 | 14500 | 21000 | 26000 | |
steel ingot | 1000/800 | 1400/1100 | 1900/1500 | 2300/1800 | 2750/2100 | 3500/2800 | 4800/3800 | ||
steel scrap | 450/400 | 700/600 | 1100/900 | 1300/1100 | 1600/1350 | 2200/1850 | 2850/2250 | ||
Points for attention when choosing model:
1.If temperature of the attached material is below 100°C, please choose normal temperature type. If it is above 100°C, please choose high temperature type.
2.When power-on sustaining rate is above 60%, please choose high frequency type.
3.When lifting and transporting material in water, please choose diving type(depth of diving≤100m). The technical data of diving type electromagnet is same as that of normal temperature type. If customers need diving type, please state clearly when ordering.
Welcome to our factory
Guarantee and after-sale service
6months guarantee for whole machine
24hours technical support by email
Calling or door to door service
User manual and detailed video
