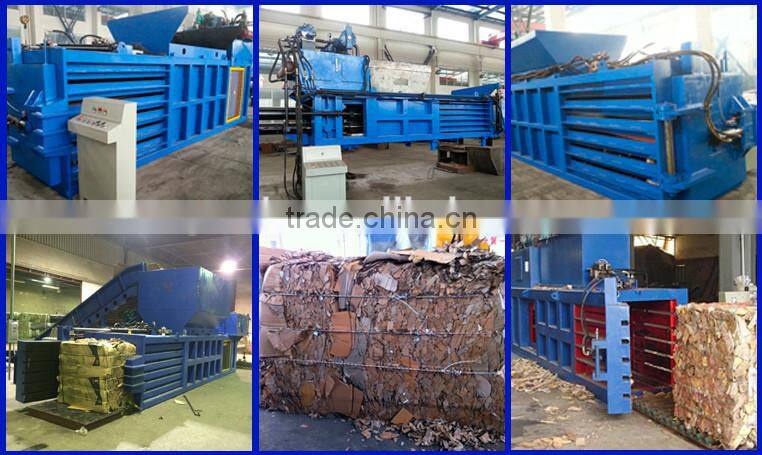

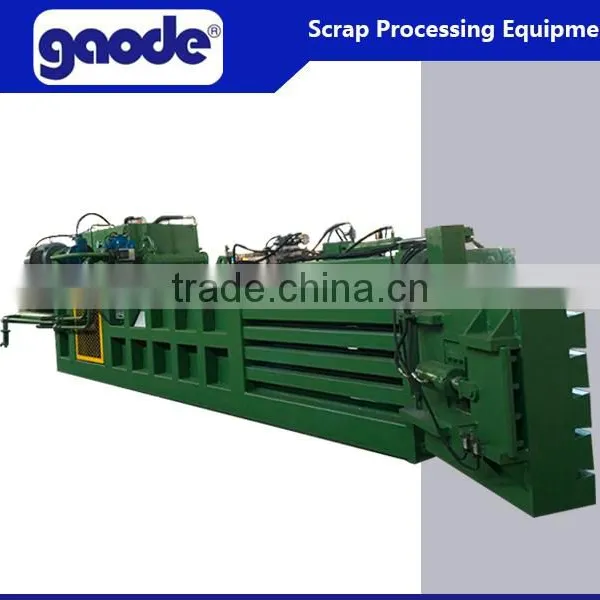

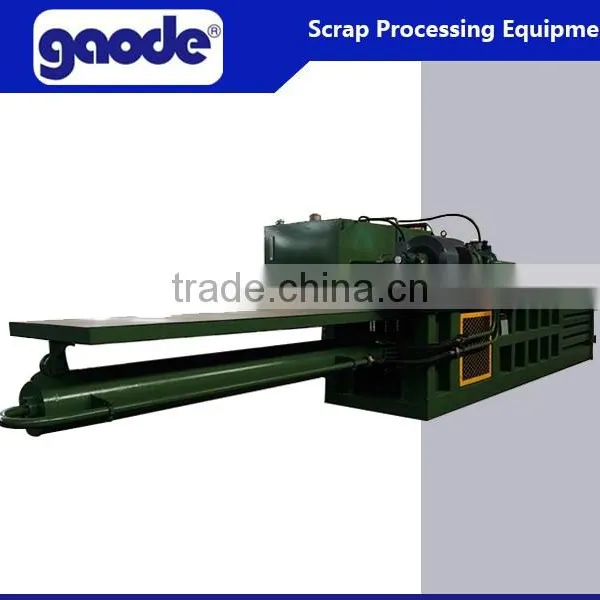

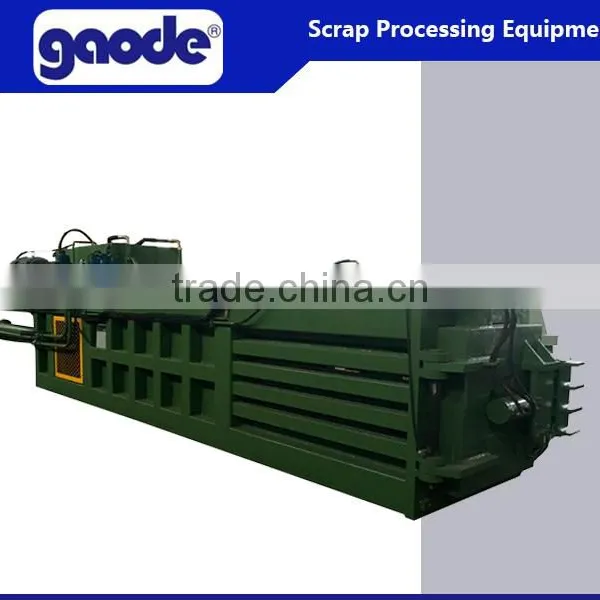

Horizontal Waste Paper Compactor Machine
1.horizontal structure:feeding can be manual or automatic with conveyor
2.PLC control, push-button operation ,safe & reliable
3.manual belting
HPM-1000 TECHNICAL SPECIFICATION
No. | Technical Specifications | ||||||
1 | Baling chamber dimensions(L*W*H) | 4100×850×1000 mm | |||||
2 | Feed opening size(L*W) | 2300×1100 mm | |||||
3 | Bale dimension(L*W*H) | (~1600)×850×1000 mm | |||||
4 | Compacted density | ≥400 kg/m3 | |||||
5 | Hydraulic System Pressure | 21.5Mpa | |||||
6 | Weight per bale | About 600 KG | |||||
7 | Power Standard | 380V/3PH,50Hz or as customer’s requirement | |||||
8 | Total Power | 29.5 KW | |||||
9 | Main Motor | Model | Y200L2-6 | Quantity | 1 set | ||
Nominal Speed | 980 rpm | Power | 22 kw/380V | ||||
10 | Hydraulic Pump | Model | 160YCY14-1B | Quantity | 1set | ||
Nominal Outflow | 160 ml/r | Nominal Force | 31.5MPa | ||||
12 | Motor | Model | Y132S-4 /Y802-4 | Quantity | 1set | ||
Nominal Speed | 1440rpm/1390rpm | Power | 5.5KW/5.5HP | ||||
13 | Capacity | 4000-5000 kg/h | |||||
14 | Conveyer Belt Specifications | width | 1600 mm | ||||
length | 12000 mm | ||||||
speed | 36m/min | ||||||
15 | Operation Method | Push-button | |||||
16 | Belting Method | Manual belting with 5 ferrous wire | |||||
HPM series of horizontal balers with manual belting, applicable in baling & belting of loose material like scrap paper (cardboard,newspaper),plastic scraps(PET bottle, elting, applicable in baling & belting plastic film or crate)&straw,etc.
In addition to scrap metal processing equipment, we also supply horizontal baler and vertical baler for compacting plastic, paper, cardboard, straw, textile and more types of wastes.Our company was first inaugurated in 2003.
Guarantee and after-sale service
6months guarantee for whole machine
24hours technical support by email
Calling or door to door service
User manual and detailed video
Fenny
Sales representative
Jiangsu Gaode Hydraulic Machinery Co.,Ltd
China factory
ADD: No. 691 Chengshan Road, Jiangyin City,Jiangsu Province.
Tel: +86 510 86996082/18921250082(7*24 hours online service)
Fax: +86 510 86993993
| | |
| Metal chip briquetting presses | HBS scrap baler&shear | Q91Y heavy-duty scrap shear |
| | |
| Aluminum can baler machine | PSX scrap steel shredder line | waste cotton baling machine |
Q1:Can I add my logo on the machines?
A: Yes,OEM and ODM are available for us.
But you should send us the Trademark authorization letter.
Q2:How can i get the after-service?
A: We will send you the spare parts by free if the problems caused by us.
If it is the men-made problems,we also send the spare parts,but you should pay.
Q3:Do you have inspection procedures for machines?
A:100% self-inspection before packing
Q4:Can I have a visit to your factory before the order?
A:Sure,welcome to visit our factory.
Here is our factory address:No.691, Chengshan Road, Jiangyin City, Jiangsu Province, China.
Q5: Can we order one set machine?
A:Yes, you can.
