Home > Products > Paper & Plastic Horizontal Baler > HPM-1000 PLC Scrap automatic paper baler
HPM-1000 PLC Scrap automatic paper baler
- 100 Set / Sets per Month
- Shanghai
- T/T
- CE certificated hydraulic press/Clothes/Bedclothes/Cotton/Woolen/Textile Baler machine
- 20 years manufacturer, automatic hay and straw baling machine
- more than 20 years factroy supply CE certificated used clothes and textile baling machine
- more than 20 years factory supply Hard plastic/ Fiber/Cotton/Woolen/Clothes/Textile Baler machine press
- more than 20 years factory supply plastic baler machine
- more than 20 years factory supply Clothes/Bedclothes/Cotton/Woolen/Textile Baler machine
Product Details
Condition: | New | Application: | Other, Machinery & Hardware, horizontal belting baler | Packaging Type: | Other, horizontal belting baler |
Packaging Material: | Wood, Other, Wood, horizontal belting baler | Automatic Grade: | Semi-Automatic | Driven Type: | Hydraulic |
Voltage: | Customized | Power: | 30kw, 30KW | Place of Origin: | Jiangsu, China |
Brand Name: | gaode | Model Number: | HPM-1000, HPM-1000 | Weight: | none |
Dimension(L*W*H): | none | Certification: | ISO9001:2008,SGS,CE | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

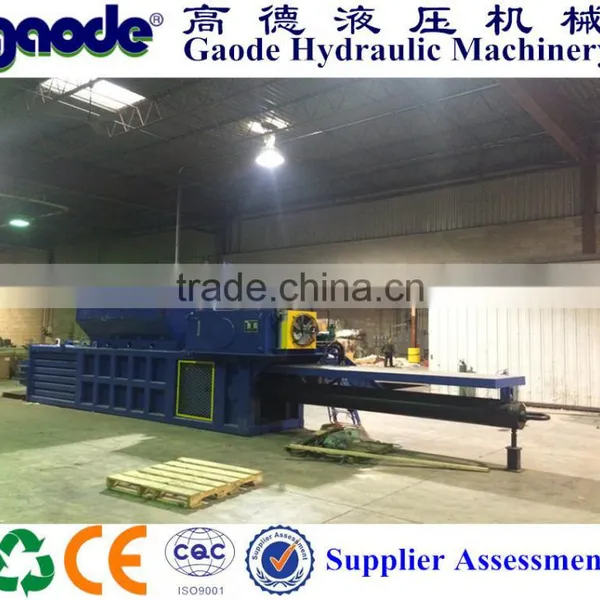

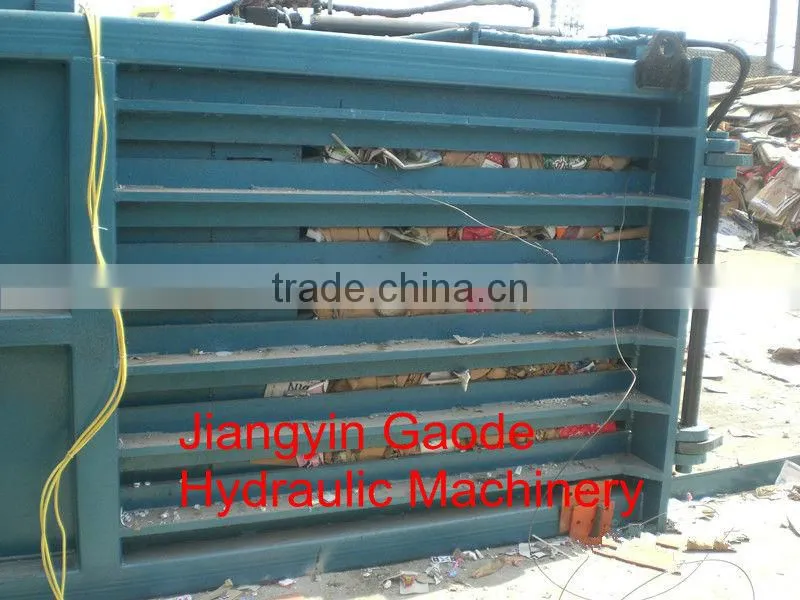

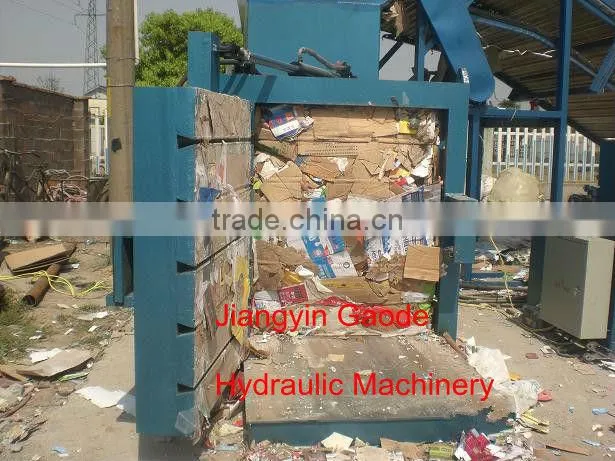

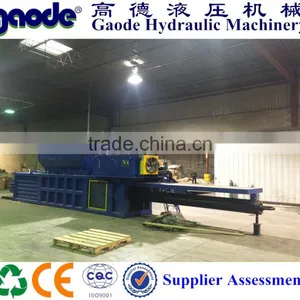

HPM-1000 PLC Scrap automatic paper baler
HPM series of horzontal balers with manual belting,applicable for
baling & belting of loose materials like scrap paper (cardboard,newspaper),plastic
scraps(PET bottle,plastic film or crates) & straw,etc.
Features:

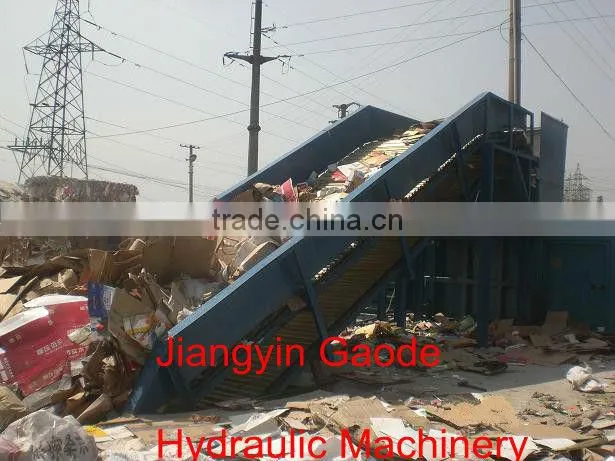

1) Horizontal structure; Feeding can be manual or automatic with conveyor.
2) PLC control, push-button operation, safe & reliable.
3) Manual belting.
HPM-1000TECHNICAL SPECIFICATION
No. | Technical Specifications | REMARKS | ||||||
1 | Baling chamber dimensions(L*W*H) | 4100×850×1000 mm |
| |||||
2 | Feed opening size(L*W) | 2300×1100 mm |
| |||||
3 | Bale dimension(L*W*H) | (~1600)×850×1000 mm |
| |||||
4 | Compacted density | ≥400 kg/m3 |
| |||||
5 | Hydraulic System Pressure | 21.5Mpa |
| |||||
6 | Weight per bale | About 600 KG |
| |||||
7 | Power Standard | 380V/3PH,50Hz or as customer’s requirement |
| |||||
8 | Total Power | 29.5 KW |
| |||||
9 | Main Motor | Model | Y200L2-6 | Quantity | 1 set |
| ||
Nominal Speed | 980 rpm | Power | 22 kw/380V | |||||
10 | Hydraulic Pump | Model | 160YCY14-1B | Quantity | 1set |
| ||
Nominal Outflow | 160 ml/r | Nominal Force | 31.5MPa | |||||
12 | Motor | Model | Y132S-4 /Y802-4 | Quantity | 1set |
| ||
Nominal Speed | 1440rpm/1390rpm | Power | 5.5KW/5.5HP | |||||
13 | Capacity | 4000-5000 kg/h |
| |||||
14 | Conveyer Belt Specifications | width | 1600 mm |
| ||||
length | 12000 mm | |||||||
speed | 36m/min | |||||||
15 | Operation Method | Push-button |
| |||||
16 | Belting Method | Manual belting with 5 ferrous wire |
|
Packaging Details: | nude |
---|---|
Delivery Detail: | about 28 days |
GAODE Hydraulic Machinery has been a trusted name in the waste recycling equipment industry for over a decade as a dedicated Chinese manufacturer of scrap metal recycling equipment, our flagship products includethe shear baler, scrap baler, scrap shear, and recycling crane. In addition to scrap metal processing equipment, we also supply horizontal baler and vertical baler for compacting plastic, paper, cardboard, straw, textile and more types of wastes.
Our company was first inaugurated in 2003.We have combined advanced production and testing instruments with state-of-the-art manufacturing techniques to yield outstanding product quality.
Guarantee and after-sale service
6months guarantee for whole machine
24hours technical support by email
Calling or door to door service
User manual and detailed video
Q1:Can I add my logo on the machines?
A: Yes,OEM and ODM are available for us.
But you should send us the Trademark authorization letter.
Q2:How can i get the after-service?
A: We will send you the spare parts by free if the problems caused by us.
If it is the men-made problems,we also send the spare parts,but you should pay.
Q3:Do you have inspection procedures for machines?
A:100% self-inspection before packing
Q4:Can I have a visit to your factory before the order?
A:Sure,welcome to visit our factory.
Here is our factory address:No.691, Chengshan Road, Jiangyin City, Jiangsu Province, China.
Q5: Can we order one set machine?
A:Yes, you can.
