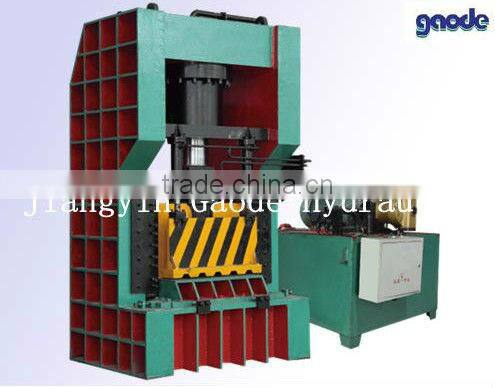

Help CenterAutomatic Hydraulic Gantry Scrap Metal Sheet Shear Machine
Related Products
-
CE Qualified Hydraulic Gantry Metal Plate Cutting MachineNegotiableMOQ: 1 Set -
Automatic Hydraulic Manual Gantry Scrap Metal Plate Shear MachineNegotiableMOQ: 1 Set
-
Hydraulic Guillotine Scrap Metal Sheet Shear Machine For SaleNegotiableMOQ: 1 Set
-
Customized Manual Scrap Metal Sheet Cutting Machine(Factory And Sale)NegotiableMOQ: 1 Set
-
European Standard Automatic Scrap Metal Sheet Cutting Shear MachineUS$ 17,000 - 18,000MOQ: 1 Set
Technical Specifications Of Automatic Hydraulic Gantry Scrap Metal Sheet Shear Machine:
Type | Nominal Force(KN) | Blade Length(MM) | Shearing Frequency (time/min) | Max Blade Opening (MM) | Max Shearing palte size (MM) | Power (KW) |
HC42-1200 | 1200 | 600/800 | 7-15 | 120 | 20X600 | 15 |
1200 | 20X1200 | |||||
HC42-1600 | 1600 | 600/800 | 25X600 | 18.5 | ||
1200 | 25X1200 | |||||
HC42-2000 | 2000 | 600/800 | 25X500 | 22 | ||
1200 | 25X1200 | |||||
HC42-2500 | 2500 | 600/800 | 30X500 | 30 | ||
1600 | 30X1600 | |||||
HC42-3150 | 3150 | 800 | 35X800 | 37 | ||
HC42-5000 | 5000 | 800 | 40X800 | 44 | ||
RMK: 1.Increase the blade opening size and reduce the shearing time; 2.When the tensile strength of the scrap more then 450Mpa, the scrap is not allowed to shear. | ||||||

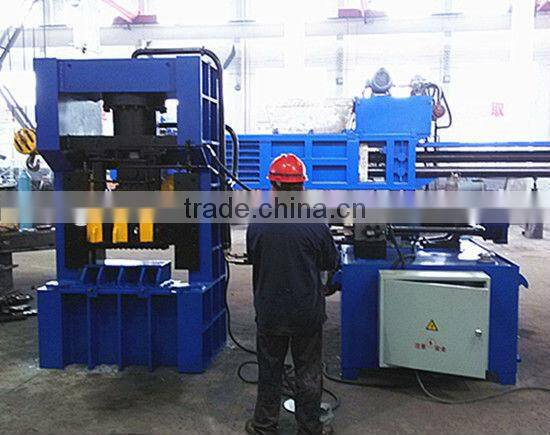

HC42-2500 Automatic Hydraulic Gantry Scrap Metal Sheet Shear
Detailed Information:
HC42-2000
Max Shear Force: 200 tons
Blade Length: 600/800mm
Max Blade Opening: 120mm
Shear Frequency: 7-15 time/min
Max Shearing Plate Size: 25*500mm
Power: 22KW
Applications Of Automatic Hydraulic Gantry Scrap Metal Sheet Shear:
Applicable in recycling companies, automobile dismantling plants, smelting &casting industry to Cold-shear section steel and metallic structural parts into acceptable furnace charges.
Square sheet shear is mainly applied to cut sheet metal into different sizes. The machine can substitute flame cutting. Cost of production is reduced.
The Certificates Of Automatic Hydraulic Gantry Scrap Metal Sheet Shear:
Welcome to our factory
Guarantee and after-sale service
6months guarantee for whole machine
24hours technical support by email
Calling or door to door service
User manual and detailed video
