best selling durable save resource waste plastic recycling plant
- 2500 Set / Sets per Month
- Tianjin
- T/T Credit Card PayPal
- Fashionable design best selling 2000kg/hour waste plastic recycling plant
- best selling top quality waste plastic recycling plant
- best selling superior service complete set of waste plastic recycling plant
- best selling Quality Assurance automatic waste plastic recycling plant
- short time delivery best selling 2014 best waste plastic recycling plant
- oem best selling 1000kg/h waste plastic recycling plant
Product Details
Condition: | New | Place of Origin: | Hebei, China | Brand Name: | Fangtai |
Model Number: | Type 80 | Use: | Waste Plastic Crusher | Plastic Type: | Other, PVC,PET,ABS,PP,PE |
Shaft Design: | Single | Power: | 75Kw | Capacity: | 1000kg/h |
Voltage: | depend on customer's need | Weight: | 50-70T | Certification: | CE and ISO |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
best selling durable save resource waste plastic recycling plant
application
- Screw feeding conveyor : Convey the waste PET PP to the crusher
- Crusher: Crush the waste PET PP.
- Flotation rinsing unit: Separate the bottles caps and impurity from the crushed PET PP flakes.
- Screw feeding conveyor: Convey the waste PET PP to the hot washer.
- Hot washing tank ( 2pcs): wash the PET PP flakes.
- Screw feeding conveyor(2pcs): Abstract the PET PP flakes from the hot washer.
- High speed Scrubbing washing unit: remove the impurity and the rest dirty in the surface of the PET PP flakes.
- Floating tank: Separate the caps and impurity from the PET PP flakes again.
- Electric heating drying unit:dry the PET PP flakes.

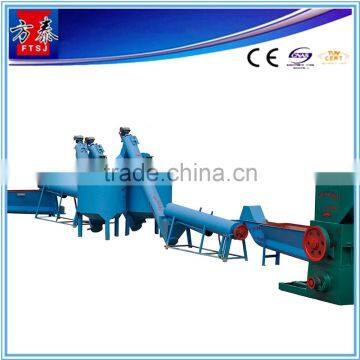

- Pet pp washing recycling line (crush+ wash+ dry)
advantages
- High capacity:600kg/h-3000kg/h
- The whole line can be controlled by a control cabinet, it is easy to operate, convenient.
- 1-4 workers needed to operate the line and manual power saving.
- strong machine , thickened carbon steel/ stainless steel, wear resistance, durable and of long usage life.
- dynamic balance, will not shake when operating.
- stable operation, can continuous work.
- double painting, inside antirust paint and outside paint.
- complete equipped. Motor, vee belt, start switch, protective cover
- We could send engineers to your side if necessary.
It is multi-functional automatic production line,can be recycle applied to PET/PP/PE/HDPE/LDPE/ABS ect.many materials.
Item | Description |
Conveyor belt | Used to convey the pet bottles into the label removing machine 3kw 5m*0.6m 1000kg/h Adjustable height Machine quality: carbon steel 300kg |
Label removing machine | Used to remove the labels of the pet bottles 18.5kw+3kw 5m*1.2m*1.5m 2000kg/h Screw length:498cm Blade Quantity: alloy cutter head Machine quality: carbon steel Rotating speed:600r/min 1200kg |
Sorting flat | Used to manually pick the bottles of different color and size 3kw 6m long 1000kg/h 350kg |
Conveyor belt |
Used to convey the label removed bottles to the crusher 3kw |
Crusher | Crush the pet bottles into flakes/ little flakes 75kw 2.8m*2.2m*2.8m 1200kg 3000kg/h Fixed blades:6pic Rotated blades:10pic 14 16 , at your request Mesh diameter:1.4cm 1.6cm 1.8cm Blade quality: carbon steel Spindle Speed:628r/min Machine quality: carbon steel The larger the mesh hole, the less capacity, and the size of the chips depend on the mesh hole. |
rinsing and separating tank | Used to separate the impurities from the crushed pet flakes, the pet flakes will sank down and the impurities ,rings and caps of the machine will float 4kw*2 6m*1.5m*1.3m 1000kg/h 400kg |
Automatic lifting dehydrator | Use to lift away the crushed caps ,rings and impurities. And has an extra function of dewatering. Carbon steel 4kw 200kg 300kg/h |
Friction machine | Used to remove the dirt sand of the flakes through friction,thus reach a result of cleaning 7.5kw. 3m long diameter:0.4m 3000kg/h 350kg |
Screw feeding machine | Used to convey the crushed pet flakes into the hot washer 4kw 4.5m long Diameter:0.4m 3000kg/h 150Kg |
Boiler | Used to heat the hot washer This boiler can be heated by wood |

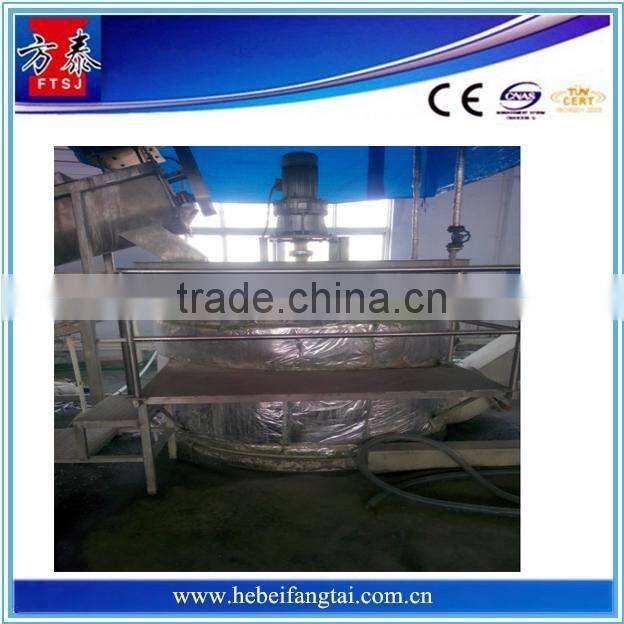

Hot washer | Can be heated by coal, diesel. Natural gas and various fo fuel. And you put water with some liquid medicine in it. The water can be heated to 90 degrees. Pet flakes will be boiled and stired in the hot washer, remove some chemical stains of the stains, then further processing Diameter:2.2m 2.5m heigh 11 kw*2 Two hot washer needed, Carbon steel |
Screw lifting machine | Send the boiled flakes out of the hot washer 4kw 4.5m long Diameter:0.4m 3000kg/h Carbon steel |
Friction machine | Remove the glue of the flakes through friction 22kw 3.5m long, diameter:0.7m 3000kg/h Carbon steel |
Rinsing and separating tank | The more the tank, the cleaner the flakes, send the flakes to the dehydrator 8kw 7m*1.5m*1.3m 3000kg/h Carbon steel |
Horizontal dehydrator | Used to dehydrate the cleaned flakes, moisture content :less than 3%, Carbon steel and stainless screen 37kw 4.2m*1m*1.7m Mesh size:5mm Carbon steel |
Control cabinet | Control the whole line Carbon steel |

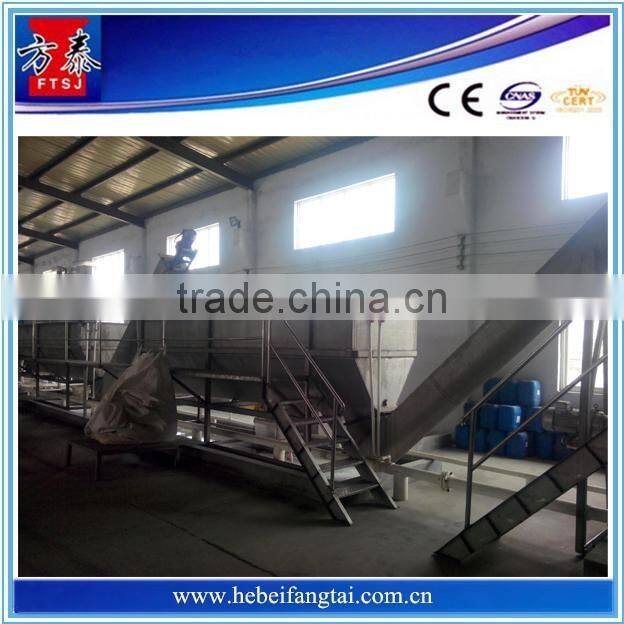

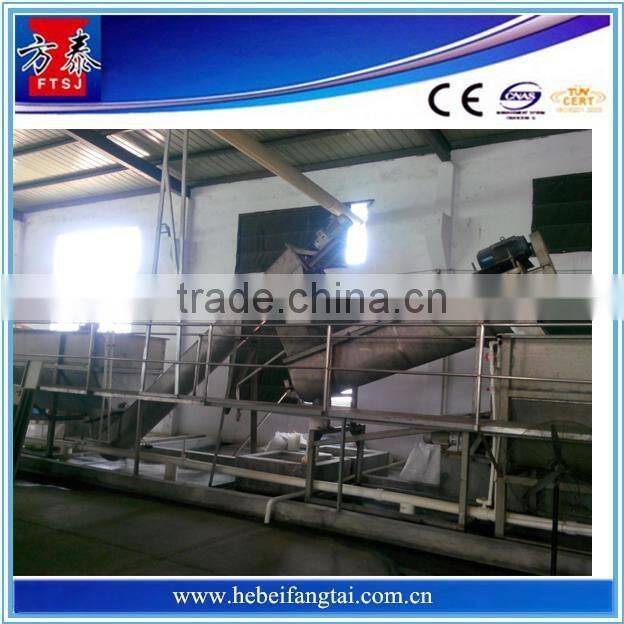

Product photos
1. How is the quality of your products?
Our products are manufactured strictly according to national and international standard, and we take a test on every machine before delivery.
2.What guarantee do you provide?
If the quality is not consistent with the description as we said or promised before you place order, we promise you 100% refund.
3.How about price?
We have our own factory and can give you the lowest price, besides, we have a policy that " for saving time and absolutelyhonest business attitude, we quote as low as possible, discount can be given according to quantity"
2. By Air or by Sea for batch goods, for FCL; Airport/ Port receiving; 3. Customers specifying freight forwarders or negotiable shipping methods! 4. Delivery Time: 3-7 days for samples; 5-25 days for batch goods. 5.The broad scope, already can make waste paper packaging equipment, and can be used as a similar product packaging, compaction functions such as processing equipment. 4.Left, right, top three direction floating type shrink mouth design, be helpful for automatic pressure distribution all around, and can be widely used in different material of packing. 6.It is widely used in all kinds of waste plastic and paper recycling company factory, old unit such as enterprise, suitable for old waste paper, plastic straw, packaged recycling,straw, grass, waste paper, cotton, clothing, plastic, wool, recycled paper boxes, paper board, and other soft materials, is to improve the work efficiency and reduce labor intensity and the volume, increase density, save manpower, reduce transportation cost of good equipment. |
