US$ 200 - 5,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
Fangtai
Model Number:
Type50-100
Condition:
New
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Brand Name Fangtai
Model Number Type50-100
Condition New
After-sales Service Provided Engineers available to service machinery overseas

 Condition:New

 Place of Origin:Hebei, China (Mainland)

 Brand Name:hebeifangtai

 Model Number:Type 60-100

 Certification:CE

 Warranty:one year

 After-sales Service Provided:Engineers available to service machinery overseas

 Output:700kg/h

 Motor Power:11kw

 Rotating Speed:600r/min

 Rotated Diameter:500mm

 Outline Dimension:2500*900*1600mm

 Net Weight:450kg

 Feeding Inlet:720*500mm

 Spindle Diameter:110mm

 Screen Net Diameter:60mm



1.overall dimension: L3200*W1500*H1300



2.size of dehydrated room: meter 500*2700mm



3.model of bearing: P216(universal joint bearing)



4.size of principal axis : diameter 220mm



5.motor power:15Kw-4



6.rotation speed:900r/min



7.moto rotary speed:1470R/min



sh size:diameter 2mm



9.size of feeding port:L300*W300mm



10.size of discharged port:L250*W250mm



sh length:2200mm( made of stainless steel)



12.machine weight:800kg



13.capacity:1000-1200kg/hour for pet flakes

14.dehydration rate: more than 96% (For pet flakes)



Features:

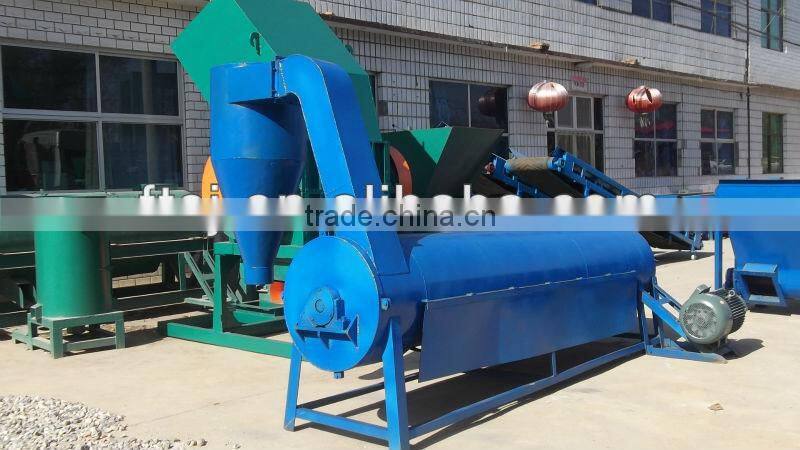

1.This dehydrator machine is used to dehydrate solid plastic material in plastic washing line,just like pet bottles,pp/pvc barrels and so on.It is one of important parts in our products. capacity is from 300kg/h to 3000kg/h could be choose.



2.this macine easy to control and lower failure rate.if you get any problem from this machine, repair that very easy. it is our company one of the popular machines in many country and industry.



3. this is a dehydration machine also could be use like a friction washer.



Pet flakes drying machine

Pet flakes drying machine





Pet flakes drying machinePet flakes drying machinePet flakes drying machine
