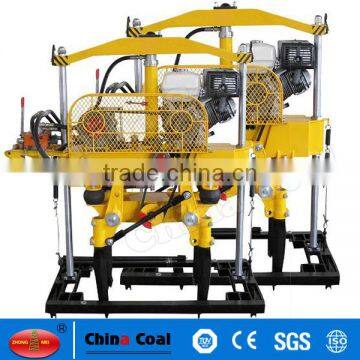

high vibration railway tamping machine
- 100 Piece / Pieces per Month
- Tianjin Shenzhen Qingdao
- T/T Credit Card
- railway container from China to Voronezh 596506 , Russia
- cold chain Belarus and Russia cold chain ,import and export transportation
- Rail Alignment Frames for aluminothermic welding
- Hydraulic Rail Bending machine Rail straightness machine
- Hydraulic rail tensor for track maintenance
- Digital Rolling stock wheel back to back gauge for wheel inspection
Product Details
Type: | Other, railway maintenance machine | Material: | Steel | Dimensions (L x W x H) (mm): | 1300x750x1600mm |
Place of Origin: | Shandong, China | Brand Name: | CHINA COAL | Model Number: | YD-22 II |
Product Description
Introduction
YD-22 Hydraulic Tamping Machine adopts new material and technology, this type of machine is our upgrading product. Its basic structure and working principle reserves the original advantages, that is of double guide pillar frame and single cylinder lifting mode. Due to increasing the tine palm inserting depth and the guide pillar stroke stop means, it’s able to to operate on II type concrete sleeper and III type concrete sleeper, and on various concrete sleeper and rail track. Its main technical performance is better than the old type. It’s suitable for tamping operation on various rail and sleeper track after the overhaul and medium maintenance ballast cleaning operation, and also suitable for tamping operation on the new track ballast bed. This machine has the features of high quality performance, reasonable structure, safe and reliable operating capability and high working efficiency, which can satisfy the requirement of ballast tamping operation.
Main Parameter
Engine | Name | GX390 Honda Petrol Engine |
| Power | 9.5kw |
| RPM | 3600 |
Hydraulic System Working Pressure | 5~6MPa
| |
Vibrating Frequency | 66.7Hz | |
Vibrating Force: | 22kN | |
Max. Inset Force | 16kN | |
Clamping Force | 6.5kN×2 | |
Inserting Depth | <110mm±10mm | |
Efficiency(group/h) | ≥260piece | |
Net Weight: | 422kg | |
Dimension: | 1390mm×750mm×1600mm | |
Operating Form: | (1) Unilateral or bilateral off-track | |
| (2) Bilateral next two as a group, for single line shoulder a narrow area. | |
Travel Frame Gauge : | 600mm |
