Introduction of TDY203 Short type railway retarder
TDY203 short retarder product description
TDY203 type retarder, no need of external energy and external control, reasonable selection of line slope and cloth top number can realize the automatic speed control of running vehicles, ensure safe link. Based on the adoption of a large number of mature technologies, the TDY203 type retarder has been designed and tested in practice.
TDY203 short type retarder product features
1) ultra short fuselage, compact structure. Don't chop ballast greatly reduces the installation, and maintenance work.
2) small size, light weight, total weight of only 8.5 kg, more than the average weight of more than 30%.
3) brake power, can meet the requirements of heavy vehicles.
The 4 side mounting hole can be used with the existing retarder mounting hole.
5) when the lower connecting retarder is installed, the utility model has the advantages of no drilling, no blockade of the circuit, no need to adjust the slope, not only the cost saving, but also the interference of the construction to the transportation.
6) no mushroom head, will not pull the top.
7) the life of the shell is improved, and the bearing condition of the retarder is improved.
Main Parameter of TDY203 Short type railway retarder
|
Critical speed(m/s)
|
1.25 |
2 |
2.5 |
3 |
3.5 |
4 |
|
Braking power(J)
|
750 |
800 |
830 |
874 |
900 |
930 |
|
Resistance work(J)
|
<35 |
<35 |
<40 |
<40 |
<45 |
<45 |
|
Lift height(mm)
|
<8 |
<8 |
<8 |
<8 |
<8 |
<8 |

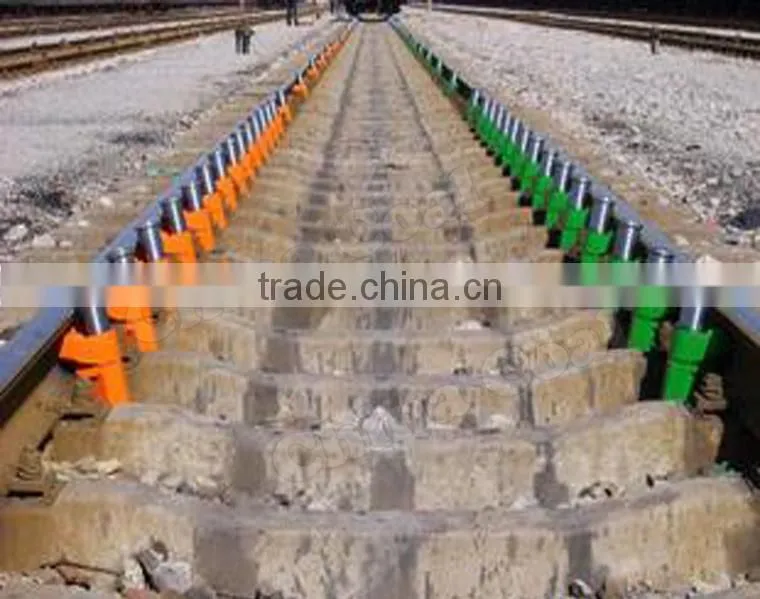

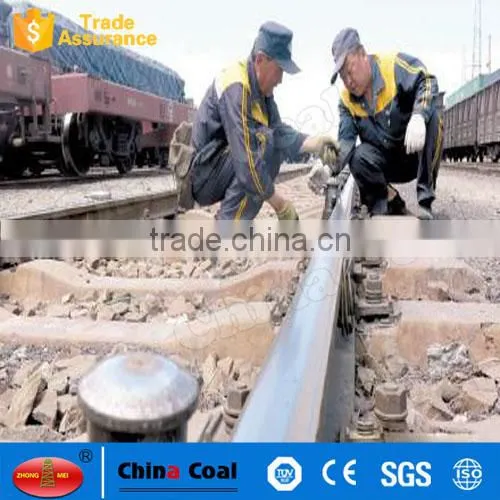

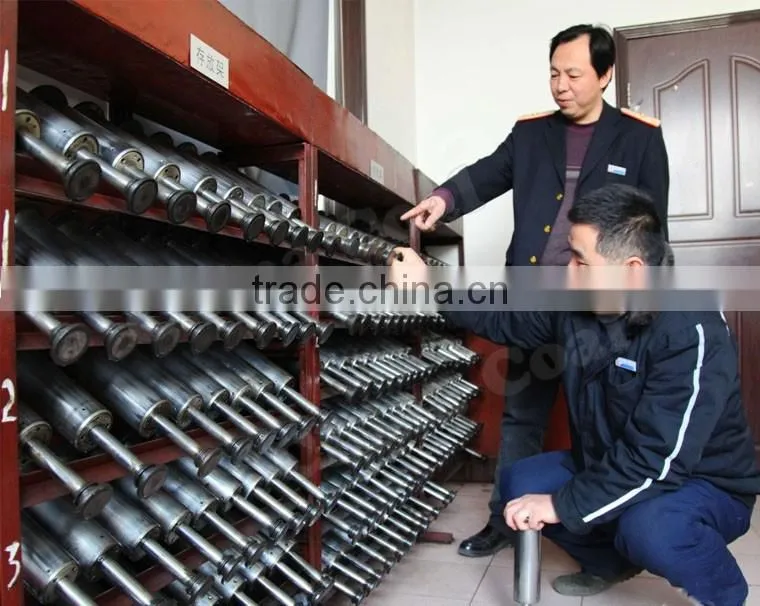

Figure Images of TDY203 Short type railway retarder
