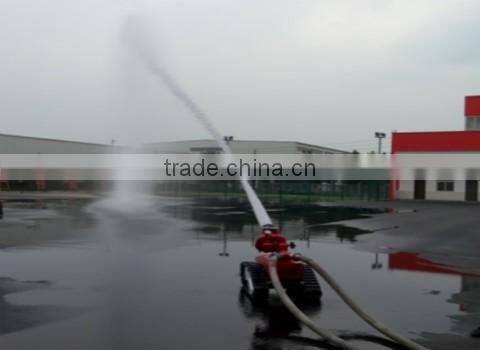

RXR-M50D Troops Use Fire-fighting Robots

Product Introduction

1.Product introduction

RXR-M50D fire-fighting robot is Sichuan Xu letter independent R & D and production of a new generation of fire-fighting robot, suitable for petrochemical, oil tank, large warehouses, small forest fires and other places of large area a and class B fires and toxic gas and liquid leakage dilution and cooling; players could not get close to the fire and rescue sites suitable for in fire prevention.

RXR-M50D by the maintenance free battery pack drive, equipped with all terrain track, can load 350Kg.

RXR-M50D equipped with fire control water cannon, remote control fire extinguishing robot to enter the site of dangerous conditions for fire and rescue.

2.Product features

1)Strong power, maintenance free battery provides a strong driving force; track drive. Can load 350Kg freedom of movement; can connect two high-pressure hose and drag it to the specified location.

2)Ability to fire, the body is equipped with a large flow of water cannon, fire speed is much higher than the domestic similar robots.

3)Through the ability: folding track structure for the actual fire environment, equipped with a wide track, can be fully terrain through; can be rotated in place; through the small door and wall holes can be free shuttle in the stairs.

4)Strong protective ability: body water curtain protection, internal components of double waterproof design. Can to in the fire work of the fire fighting robot to provide effective protection.

5)the operation scope is big: when the fixed point operation, the control range can reach 70 degrees, the horizontal 90 degree of the three-dimensional space; when the motion work, the control range can reach 70 degrees, the horizontal 360 degree of three-dimensional space.

6)Remote distance: remote control distance of up to 150-300 meters.

7)Designated ability: can be in the slope of 45 degrees below the slope at any place to stop.

8) the detection function is powerful, can be used with infrared thermal imaging system, wireless gas detector, 360 degree panoramic camera.

9)Waterproof grade IP67, explosion-proof, comes with water mist cooling device.

Main Parameter

Body weight: 175KG

Track width: 150mm

Remote control distance: 300m

Fire gun elevation: 70 degrees

Fire water level: 90 degrees

Fire water flow: adjustable 0~50L/s

Spraying distance: 50-100 meters

Monitor function: to achieve atomization / DC switch, shoot / rod angle switching, swing function

Body size: 1000mm*700mm*880mm

Load capacity: 350kg

Walking speed: 15Km/h

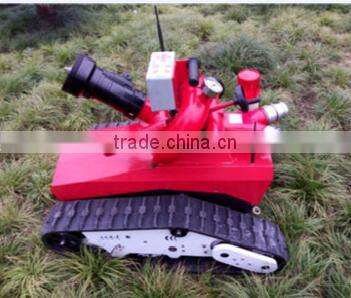

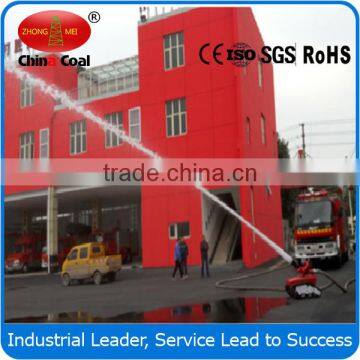

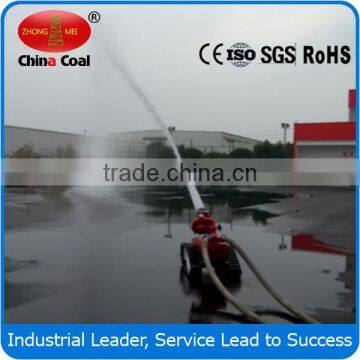

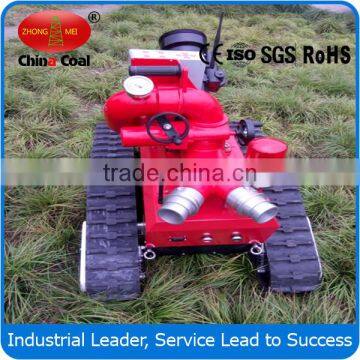

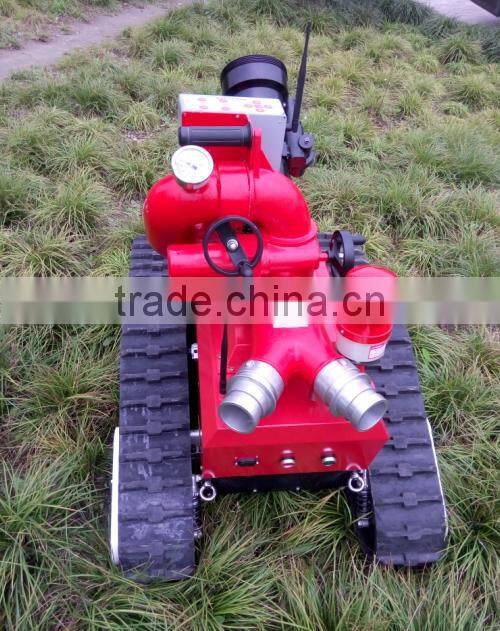

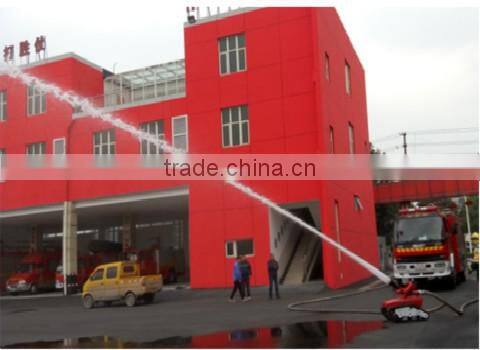

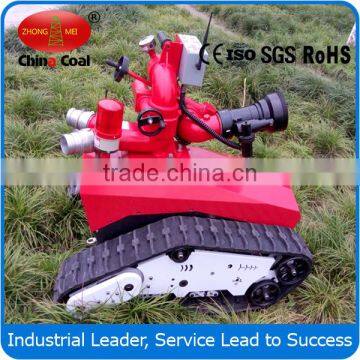

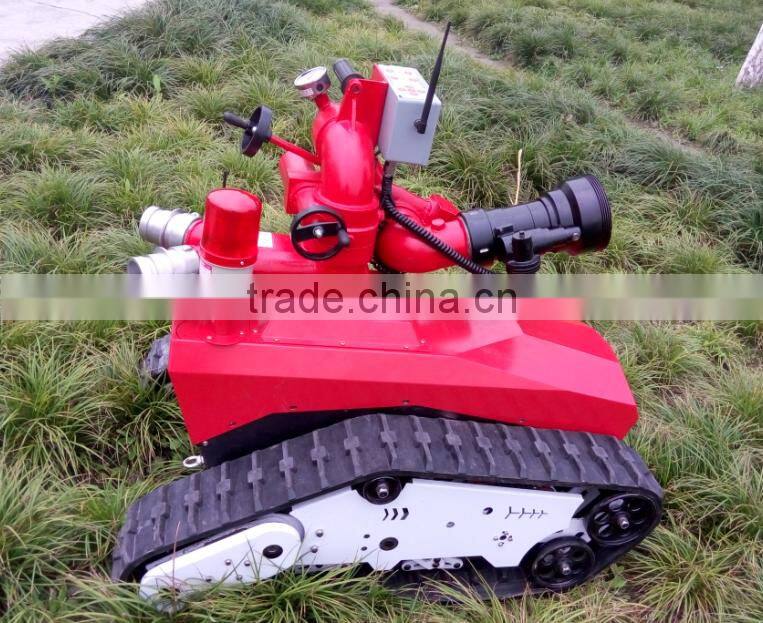

Figure Photos
