AJ-A9D Crawler type spiral drilling machine
- Shanghai Shenzhen Qingdao Ningbo
- T/T Credit Card
You May Like
-
Rotary Bore Pile Drilling Rig / Screw Pile Driver / Hydraulic Pile Driving Machine
-
Expressway Guardrail Piling Rig Machine Crawler Vibrator Hammer Pile Driver
-
Excavator Mounted Hydraulic Post Driving Machine Small Pile Driver
-
Steel Posts Installation Pile Driving Machine Highway Guardrail Hydraulic Pile Driver
-
Highway Road Construction Excavator Mobile Screw Hydraulic Mini Pile Driver For Sale
-
Vibrating Hydraulic Post Driver Piling Machine Mini Excavator Pile Driver
Product Details
| Condition | New | Model Number | AJ-A9D | |
| Weight | 3. 8-4. 8 (t) | Dimension(L*W*H) | 5200*2400*1900mm |
Product Description
Introduction of AJ-A9D Crawler type spiral drilling machine
1.Application scope
For soft soil pile,such as pile construction such as foundations, harbors, bridges, reservoir power stations, and national defense projects,the utility model is widely used in the engineering of the construction of the spiral pile, the drilling engineering, the geological exploration, the construction project and the engineering blasting etc.
2.Characteristic
1)Advanced hydraulic system,high quality hydraulic components strict assembly process to ensure the high efficiency and durability of hydraulic system,oil pump power head 2000nm,to ensure the stability of the pile driver and mechanical durability.
2)Adopt domestic high-quality crawler site.High strength, good stability, in line with the aesthetic design of the industry, the operator more spacious working space.
3)The production process tends to be more reasonable,heat treatment is used for wear parts,strict welding process, reduce deformation, perfect testing equipment.
Main Parameter of AJ-A9D Crawler type spiral drilling machine
Model | AJ-A9DCrawler type photovoltaic electric pile driver | |
Equipped power | Weichai | 4105Turbocharged engine 65(kw) |
Yuchai | 4108 | |
Drilling depth | 3m | |
Drilling diameter | 250-300(mm) | |
Drill pipe speed | 120r/min | |
Main pump model | CBG1-F040/040 | |
Main pump speed | 2000-2400L/min | |
Main pump pressure | 30Mpa | |
Main valve flow | 100L/min | |
Main pump torque | 2000N*m | |
Air compressor | No | Standard |
Yes | Rock hit(hardness F=6-20) | |
Strong wind cooling |
| |
Gradient | 30° | |
Maximum travel speed | 5km/h | |
Main pump pressure dimensions | 5200*2400*1900mm | |
Track width | 450mm | |
Chassis | 60-80 | |
Total weight | 3. 8-4. 8 (t) | |

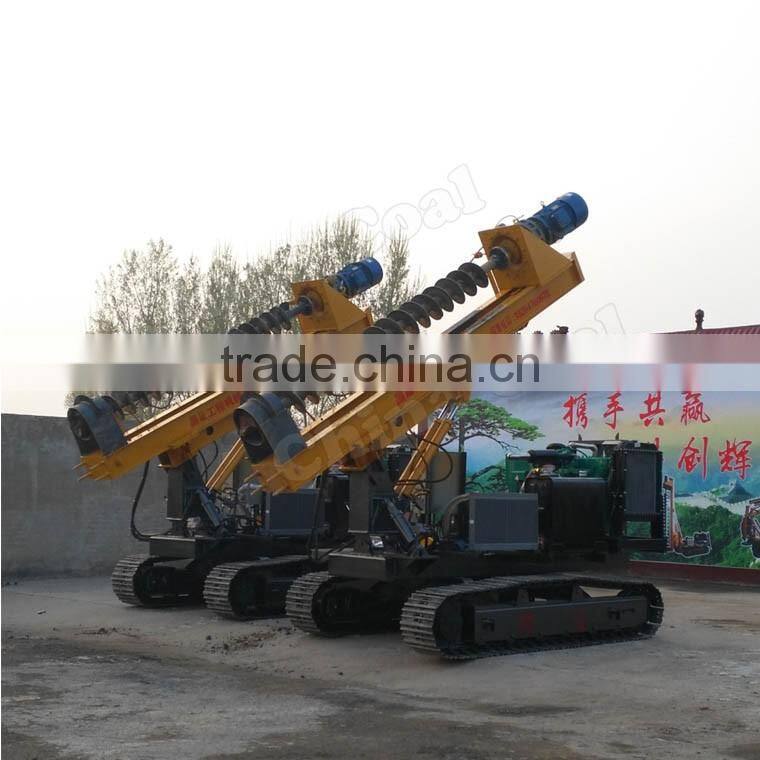

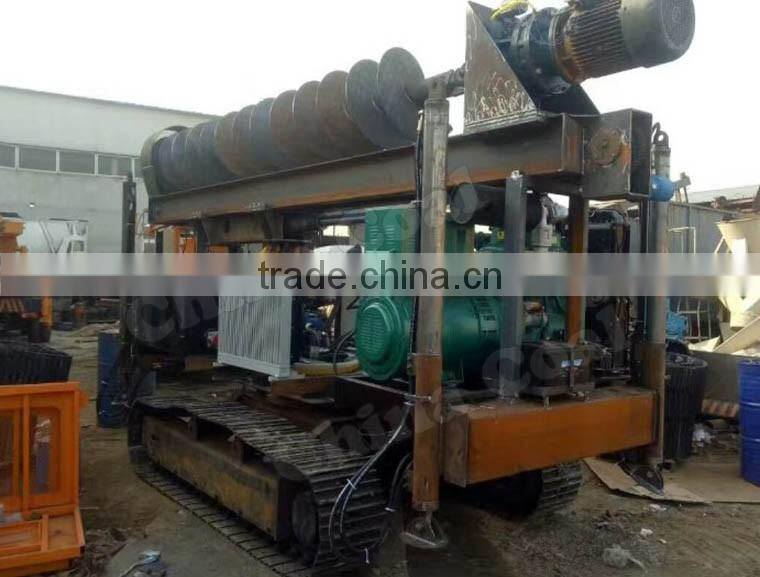

Figure Images of AJ-A9D Crawler type spiral drilling machine
