Home > Products > Pile Driving Machine > ZM-360 Pile Driving Machine / Screw Pile Driver
ZM-360 Pile Driving Machine / Screw Pile Driver
- qingdao shenzhen shanghai tianjin
- T/T L/C D/P D/A Money Gram Credit Card
You May Like
-
2017 China Coal Pile Driving Machine / Screw Pile Driver
-
Hot Sale Construction Hydraulic Auger Drilling Rig / Rotary Pile Driving Machine
-
Pile Driving Machine for Pulling and Extracting
-
Small Highway Pile Driving Machine
-
Ground Screw Pile Driving Machine
-
Crawler Type Guardrail Pile Driver Made in China
Product Details
| Condition | New | Efficiency | High Efficiency | |
| Piling Speed(m/min) | 6m/min | Place of Origin | Shandong, China | |
| Brand Name | China coal | Model Number | ZM-360 | |
| Weight | 7200 | Dimension(L*W*H) | 7300x2100x2850 | |
| Certification | ISO9001 | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Introduction of pile driving machine
Piling speed, an average of 3 minutes to achieve piling 6 meters deep, that is, 3 minutes to play a hole.
Oil province, is the ordinary piling machine with about half the amount of oil, one year you can leave a piling machine money.
The drill bit is made of manganese steel and has been specially processed for a variety of geological environments.
Crawler walking, walking and climbing ability.
The frame can be moved back and forth, the drill bit can be adjusted around, piling positioning accuracy.
Main Parameter of pile driving machine
Bore diameter(DTH hammer)(mm) | 90-300 |
Bore depth(m) | 20-100 |
Air consumption(m³/min) | 10-26 |
Air pressure(Mpa) | 0.7-1.6(medium);1.6-2.46(high) |
Pipe diameter(mm) | 76/89 |
For rock(F) | 6-20 |
Bore diameter(screw)(mm) | Max 400 |
Bore depth(m) | 0-30 |
Screw pipe diameter(mm) | 130-400 |
Once promotion(mm) | 3200 |
Skid pitch(°) | 120 |
Swinging angle of skid(°) | Left and right total 40 |
Boom swing angle(°) | Left and right total 50 |
Rotation speed(r/min) | 0-110 |
Host power(kw) | 84 |
Climb ability(°) | 35 |
Dimension(L*W*H)(mm) | 5300*1950*2580 |
Weight(kg) | 5800 |
Walk speed(km/h) | 0-2.5 |

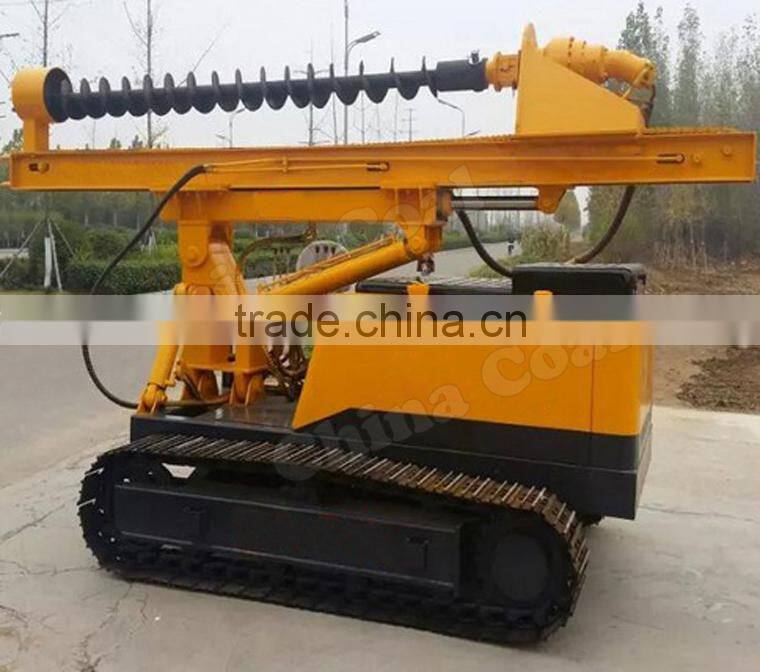

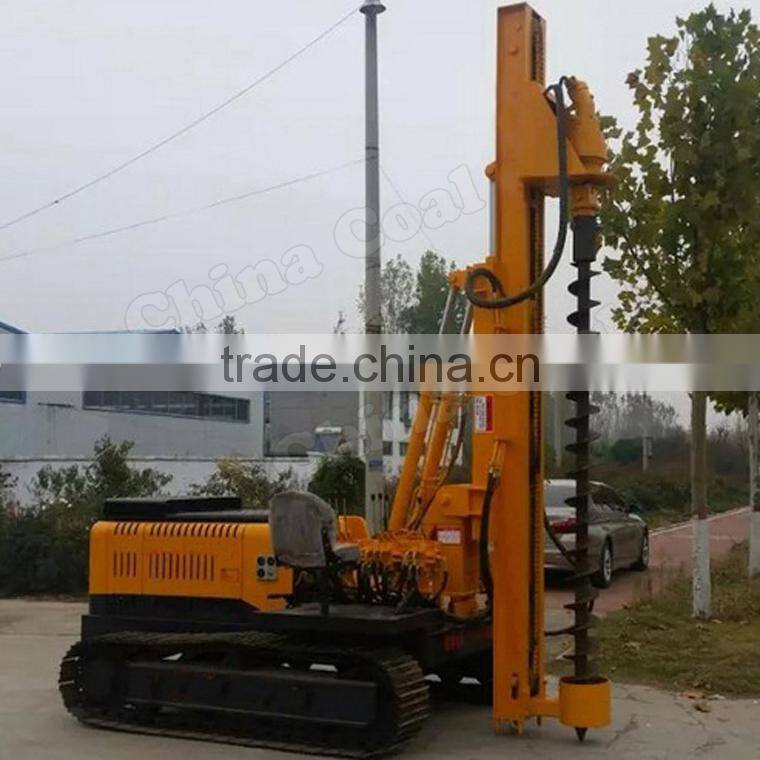

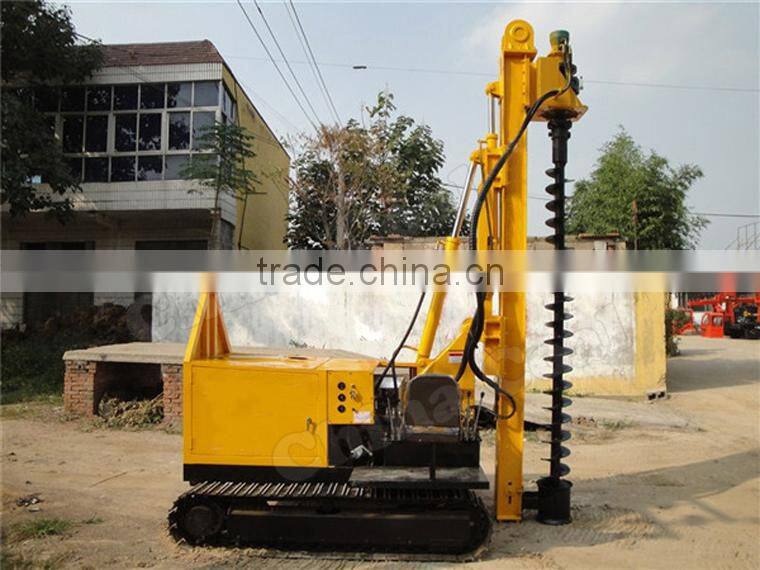

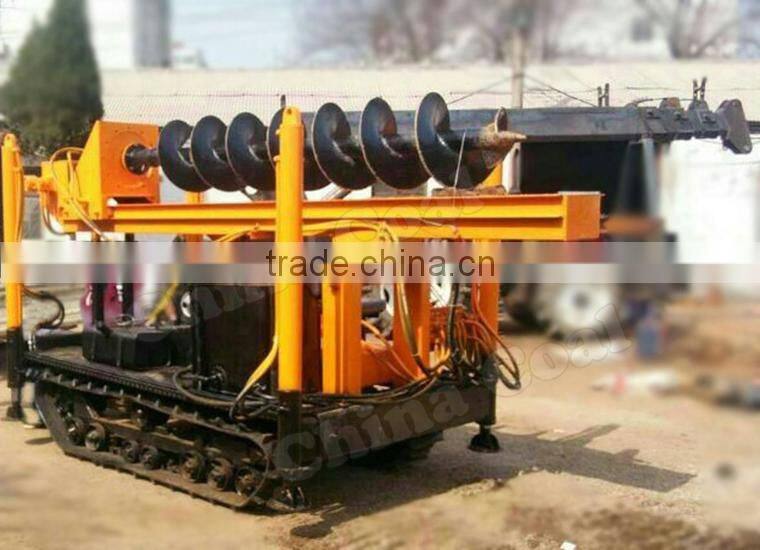

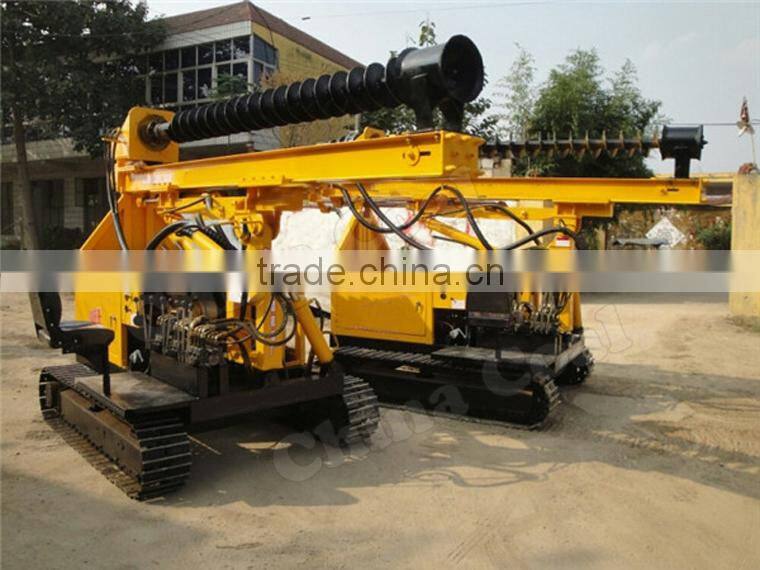

Figure Images of pile driving machine
