What is China Coal Multi-Function Rebar Location Tester/Iron Detector
China Coal Multi-Function Rebar Location Tester/Iron Detector
China Coal Multi-Function Rebar Location Tester/Iron Detector is a multi-functional integrated rebar detector which can be used for testing the thickness of protective layers, measuring the diameter, location, and distribution of rebar as well as for detecting the corrosion content of a rebar.
Featurs of China Coal Multi-Function Rebar Location Tester/Iron Detector
(1)Multi function rebar detector = rebar locator + rebar corrosion detector; an economical and convenient device.
(2)This model features the world’s first wireless onsite data transfer function for such a device and remote management is also available
(3) Data can be stored on a usb-thumb drive, great for field work
(4)This device can generate rebar distribution map and rebar corrosion potential contour graph.
(5) Powerful professional analysis-process software allows for the automatic generation of test reports.
Sprcifications of China Coal Multi-Function Rebar Location Tester/Iron Detector
Applicable range | 6mm~50mm | Corrosion detection method | Single electrode | Double electrode | ||
Protective layer thickness range (mm) | First range | Second range | Measuring range | ±1000mV | 0~1000 mV | |
3~98 | 3~200 | Accuracy | ±1mV | ±1mV | ||
Maximum allowed error for protective layer | ±1 mm | 6~59 | 10~79 | Tested points Interval X | 0~100 adjustable | 20 fixed, |
±2 mm | 60~69 | 80~119 | Tested points interval Y | 0~100 adjustable | 0~100 adjustable | |
±4 mm | 70~90 | 120~200 | Power | Built-in chargeable lithium battery | ||
Maximum allowed error for diameters measurement | ±1 rebar standard level | Battery Time | >40 hours | |||
Data transmission | wireless transmission | Dimensions | 212mm´134mm´50mm | |||
USB port | thumb drive storage available | Weight | 0.9kg | |||

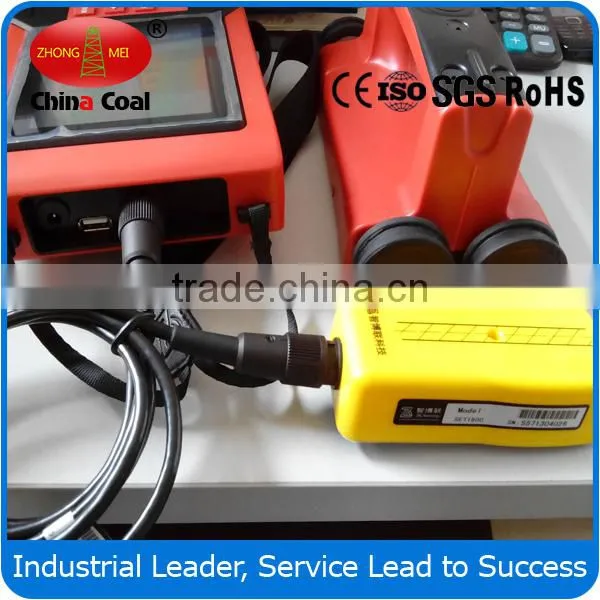

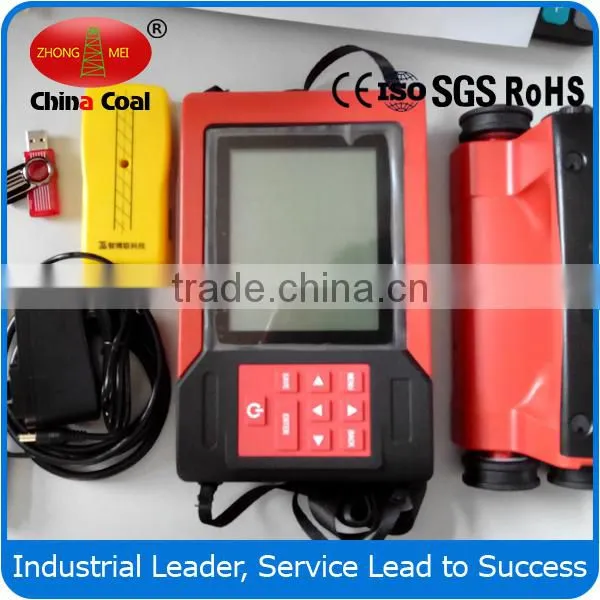

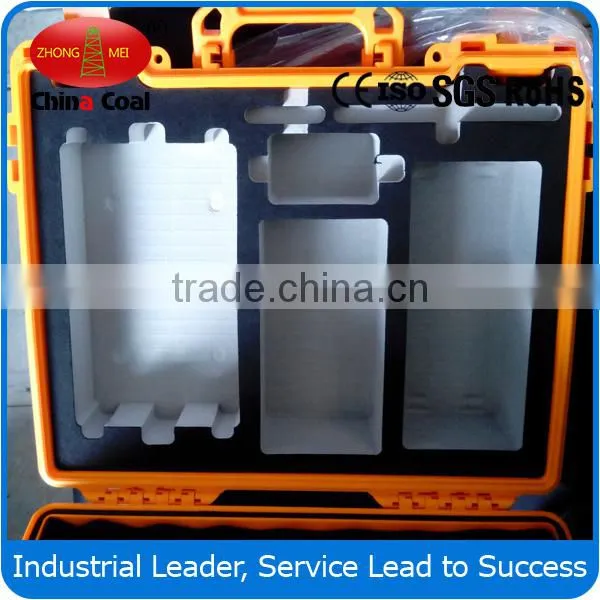

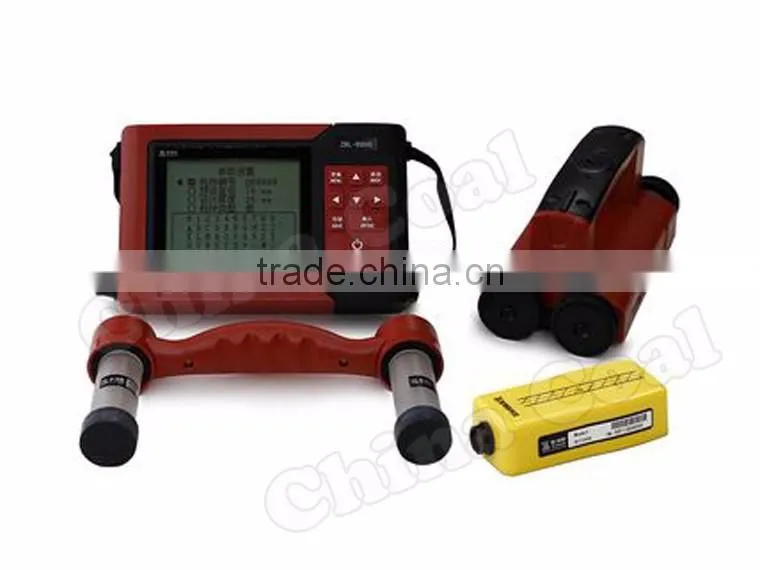

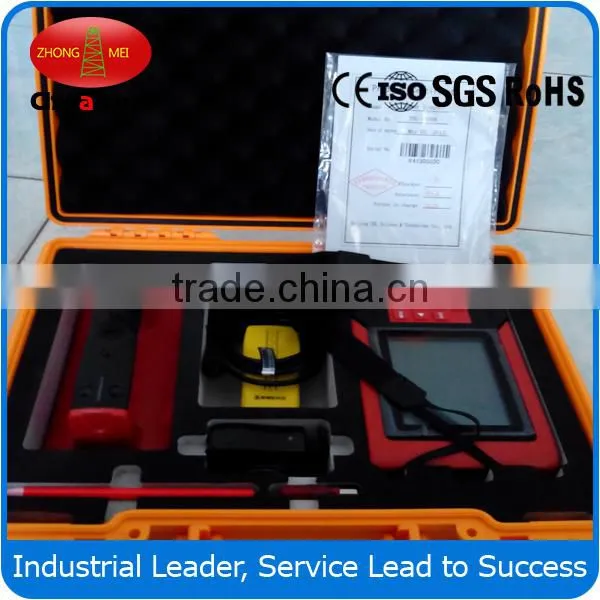

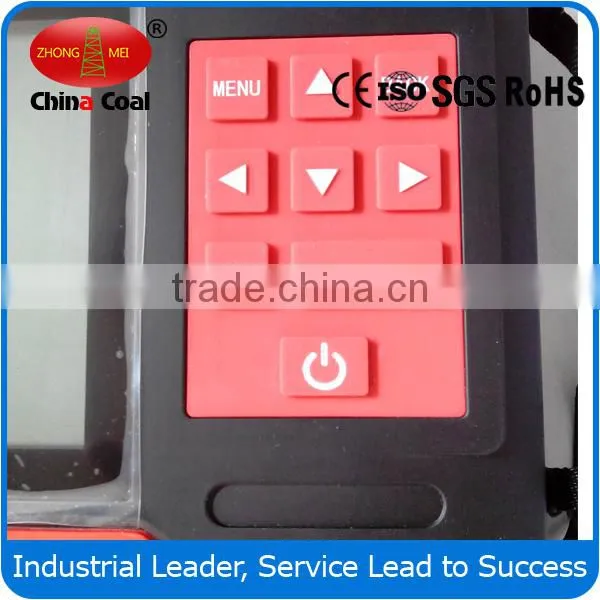

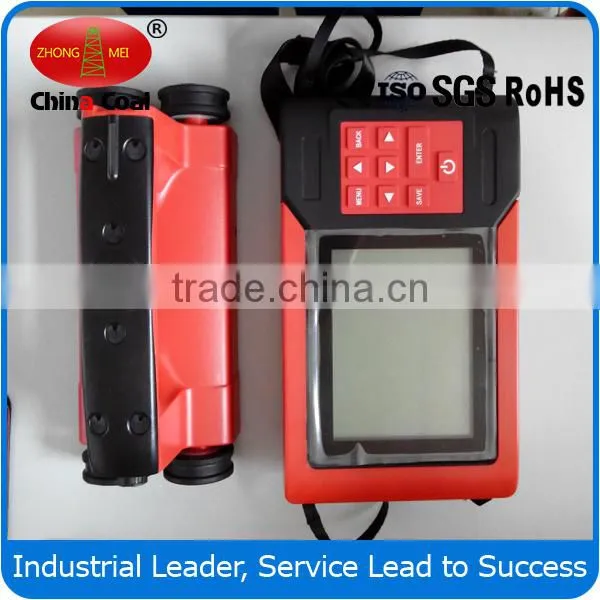

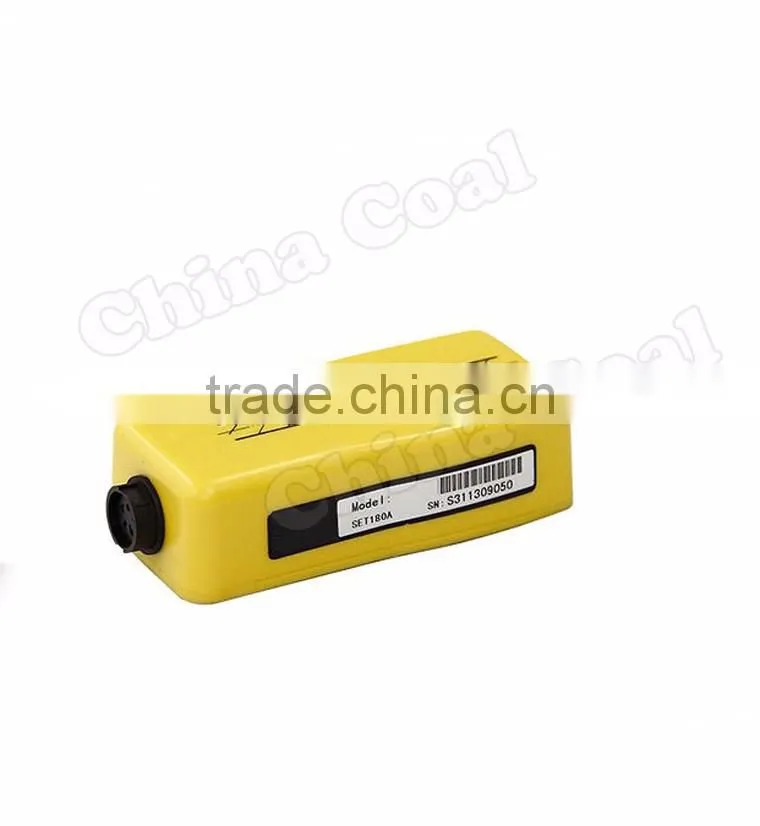

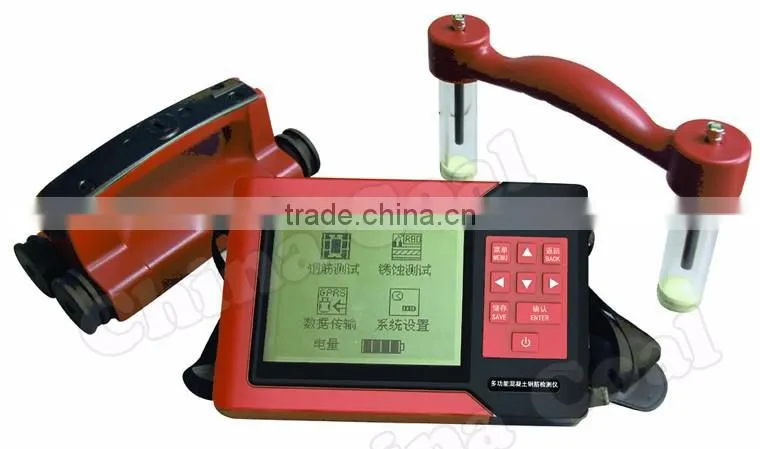

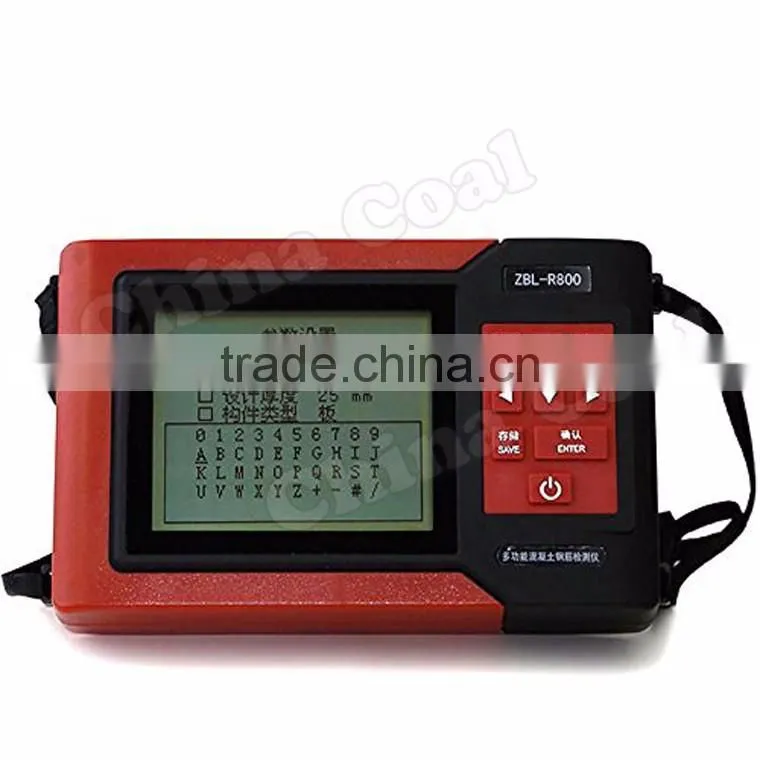

Pictures of China Coal Multi-Function Rebar Location Tester/Iron Detector
