Deep Underground Water Tester

deep water detector Main Parameter

1. Detection depth: 300 meters
2. Measurement method: bipolar profile
3. automatic noise reduction, super anti-jamming.
4. Using the three-stage gain technique, the field source signal can be enhanced in the weak field source.
5. human-friendly man-machine dialogue interface, high-speed CPU control, menu prompts.
6. automatic side volume, automatic storage of data, no need to record data. Data is not lost after shutdown.
7. can store 99 measurement lines and each measuring line 99 measuring point data.
8. can display measurement data, data lines can also be directly connected to the computer and the instrument, the data into the computer.
9. Display: 128X64 LCD screen.
10. A / D conversion: 16-bit 1MsPs
11. Powered by rechargeable battery
12. With electrode detection, power monitoring
13. Measurement parameters: the electric field component ΔVs "(mV) at different frequencies of the magnetotelluric field.
14. Side volume range: 0.1mV-255mV, the instrument automatically converts the range.
15. Side precision: 0.1mV
16. Input impedance: ≥ 10MC
17. Power: DC7 rechargeable power supply equipment. Power consumption: about 300mA
18. the working environment temperature: -201C ~ +701 ℃; relative humidity: ≤ 85%

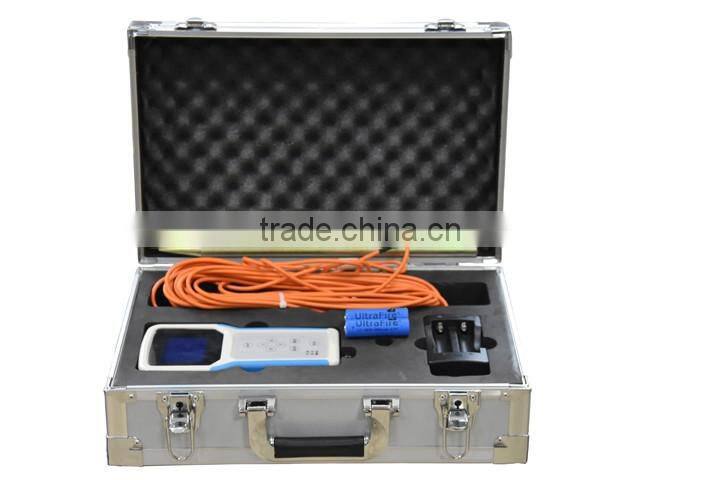

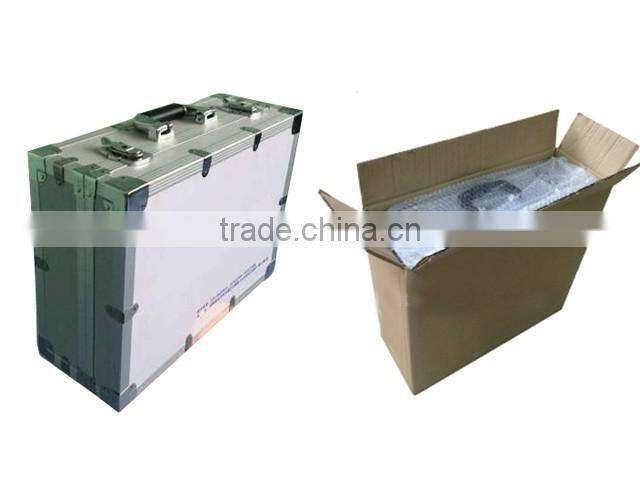

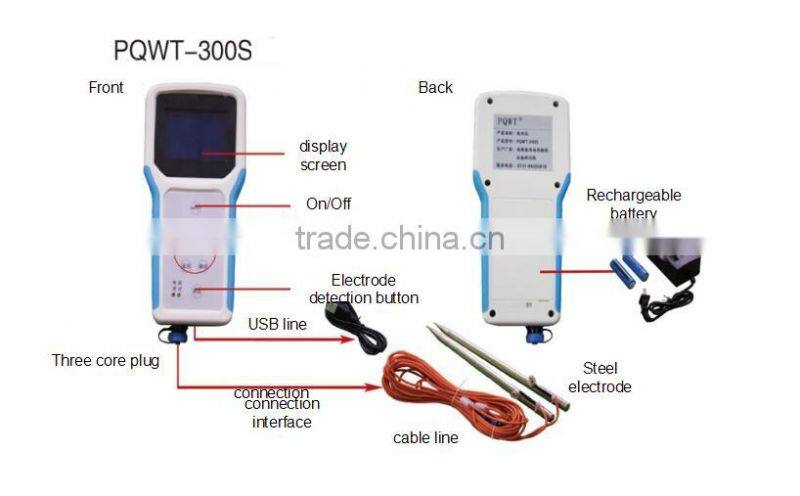

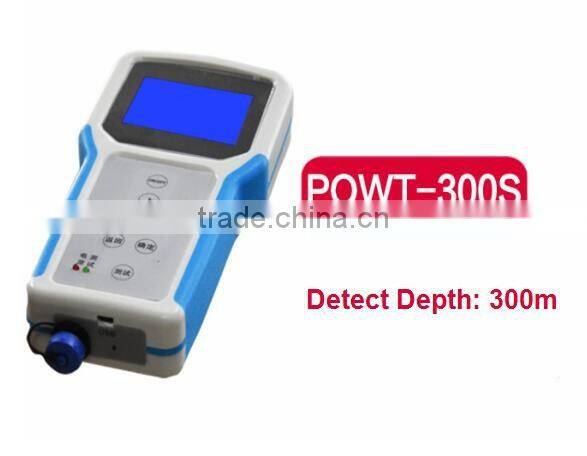

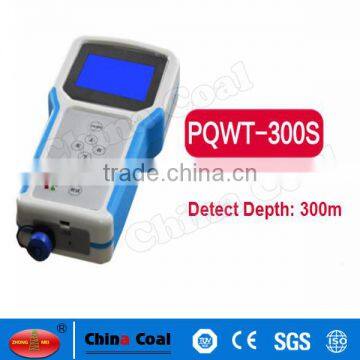

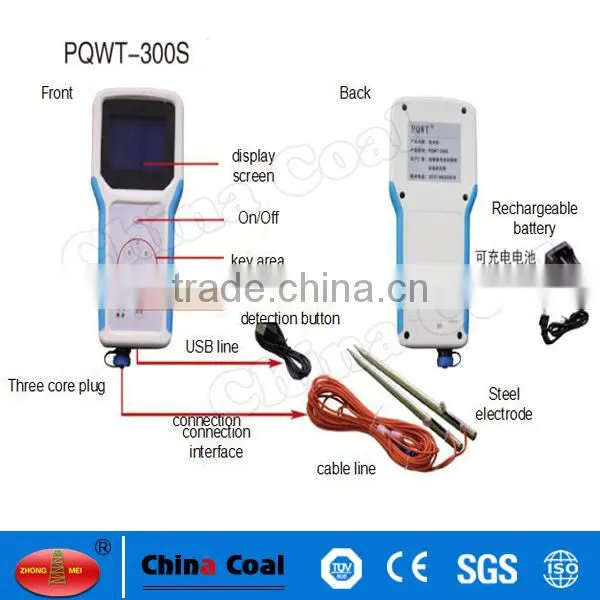

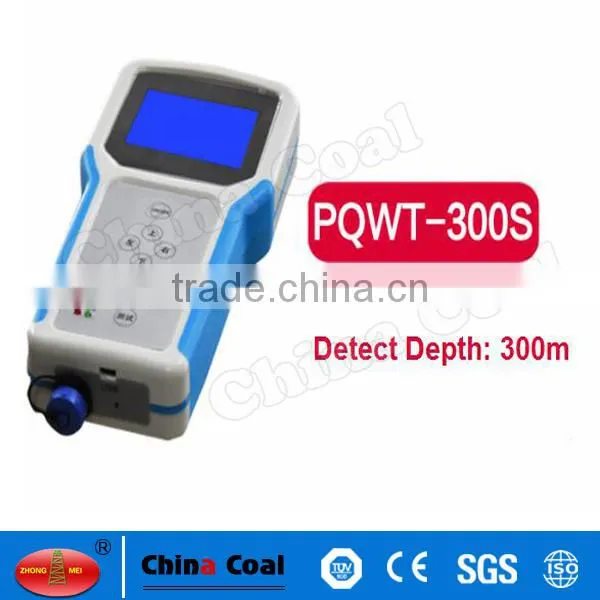

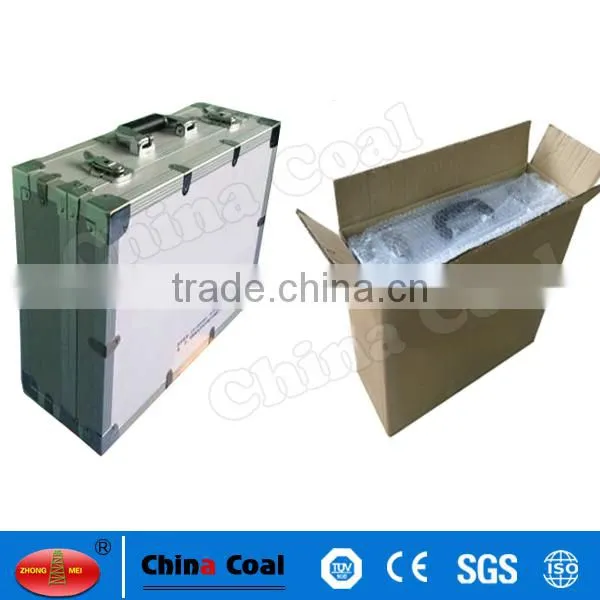

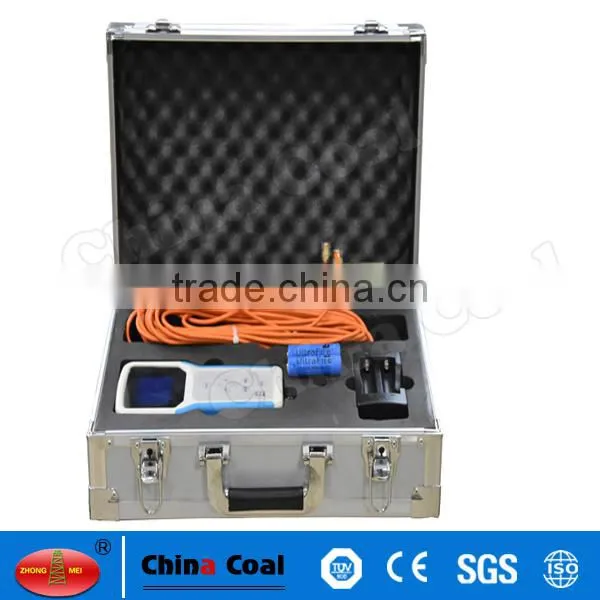

deep water detector Figure Photos
