Home > Products > Drilling machine > Diamond core drill bits for Geological drilling
Diamond core drill bits for Geological drilling
- 2000 Set / Sets per Month
- Qingdao Shanghai Ningbo Shenzhen
- T/T L/C D/P D/A Credit Card
You May Like
Product Details
| Place of Origin | Shandong, China | Brand Name | China Coal | |
| Model Number | 77.8mm | Type | Core Drill Bit | |
| Material | Diamond | Use | Other, rock drill |
Product Description
Diamond core drill bits for Geological drilling Introduction
1.1 Heat treatment control:
Heat treatment will greatly improve the material strength and increase the thread wear life
of the rods and casings. We conduct either tru-wall or both ends heat treatment to the
tube body. After heat treatment, strength, hardness, straightness and concentricity of the
treated tubes will be tested in our lab.
1.2 Thread opening process:
Accuracy of threads will determine the use effects and life time of drill rod and casings.
CNC latches and form cutter are used in thread opening processing to minimize error
made by anthropic factors.
1.3 Additional thread treatment:
Surface of the threads will be cleaned to remove burr adhered after threads are opened.
Afterwards, the tread surface will be phosphated to improve surface conditions.
Diamond core drill bits for Geological drilling Main Parameter
Std | OD(mm) | ID(mm) | Thickness (mm) | Thread pitch (mm) | Pin thread length | Weight (kg/m) | Depth capacity (m) |
AQ | 44.50 | 34.90 | 4.80 | 6.35 | 41.50 | 4.8 | 500 |
BQ | 55.60 | 46.10 | 4.75 | 8.47 | 44.45 | 6.0 | 1000 |
NQ | 69.90 | 60.30 | 4.80 | 8.47 | 44.45 | 7.8 | 1000 |
HQ | 88.90 | 77.8 | 5.55 | 8.47 | 44.45 | 11.50 | 1000 |
PQ | 114.30 | 102.1 | 6.10 | 10.16 | 63.50 | 16.30 | 1000 |
BTW | 56.7 | 48.7 | 4 | 5.5 | 39.7 | 5.2 | 600 |
NTW | 73.2 | 64.1 | 4.55 | 6.35 | 44.45 | 8 | 600 |
HTW | 91 | 81 | 5 | 8.47 | 44.45 | 10.7 | 300 |

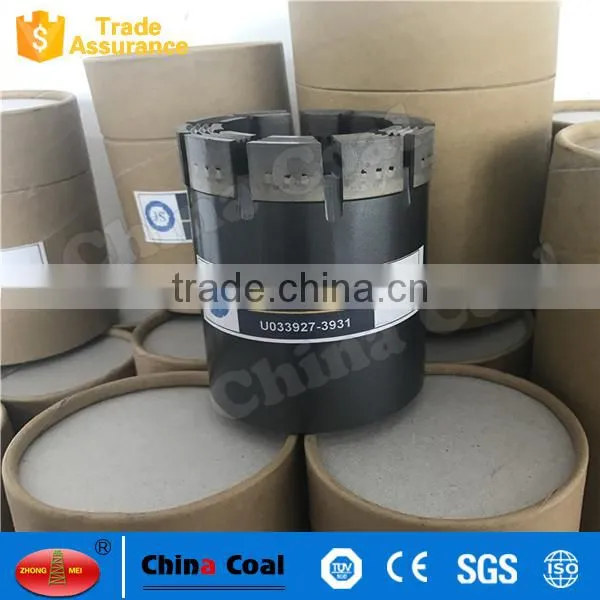

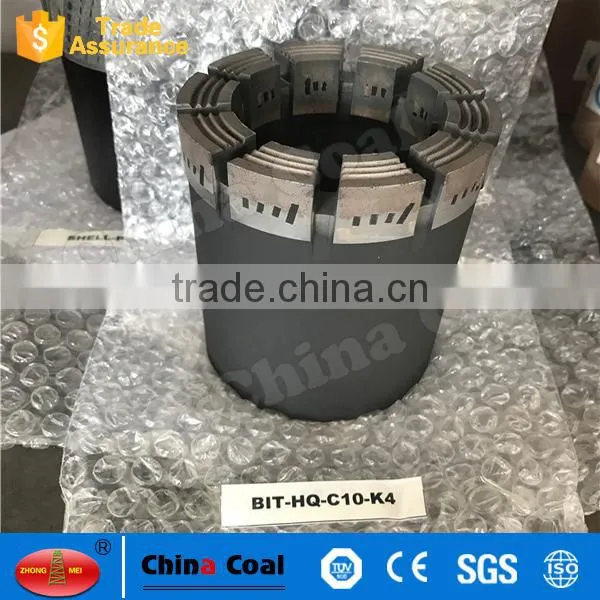

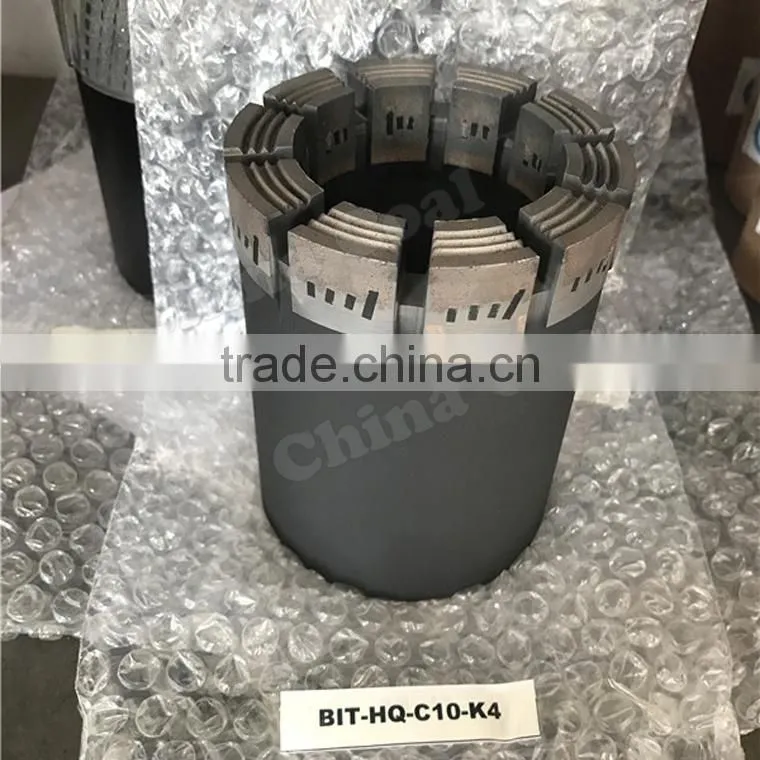

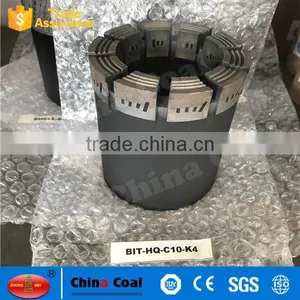

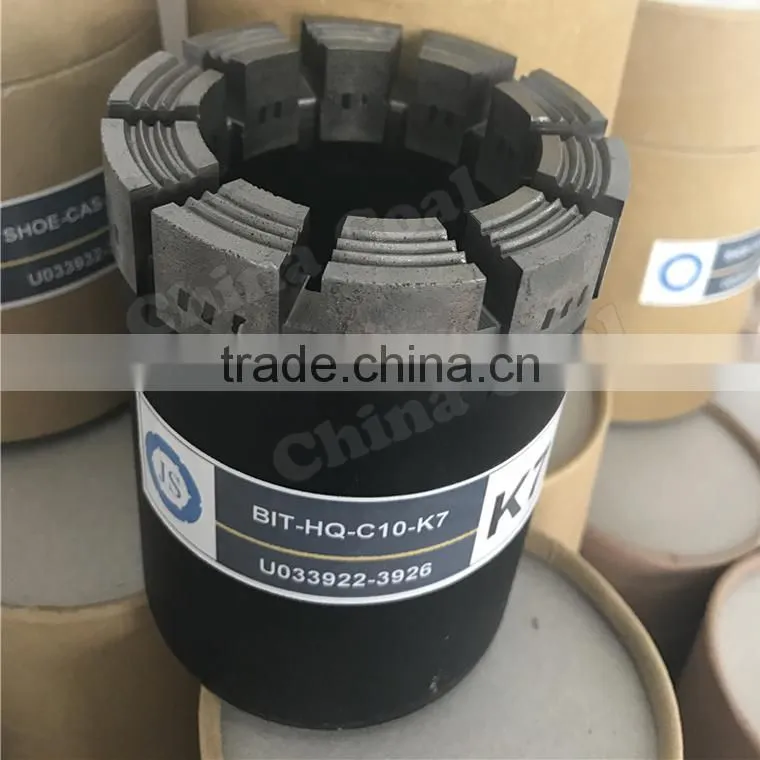

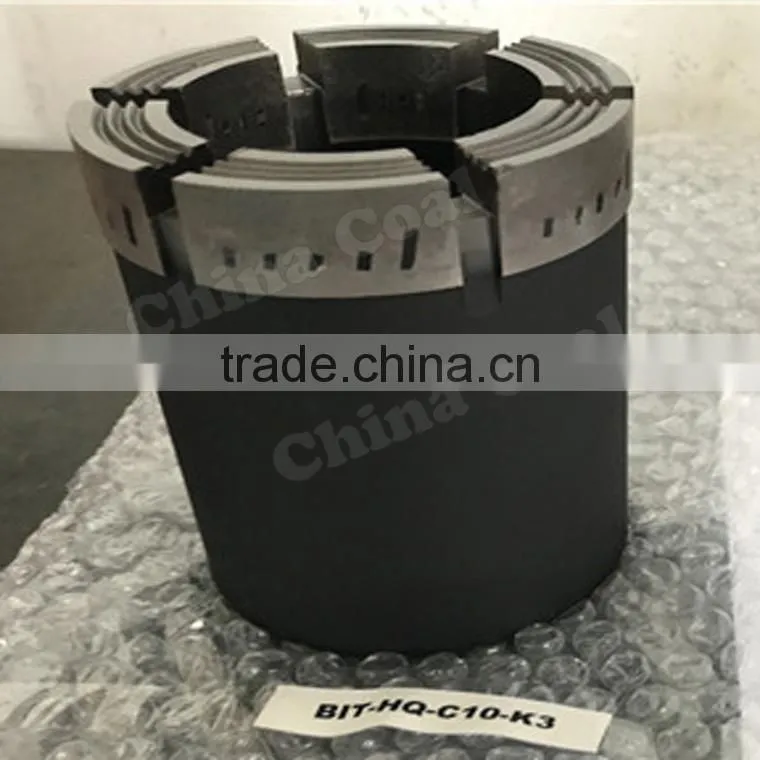

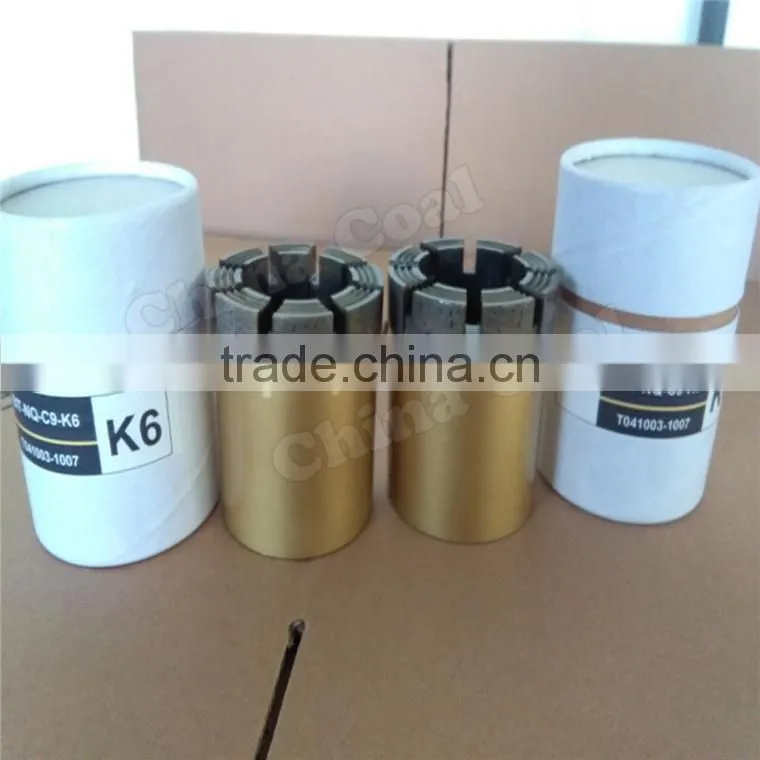

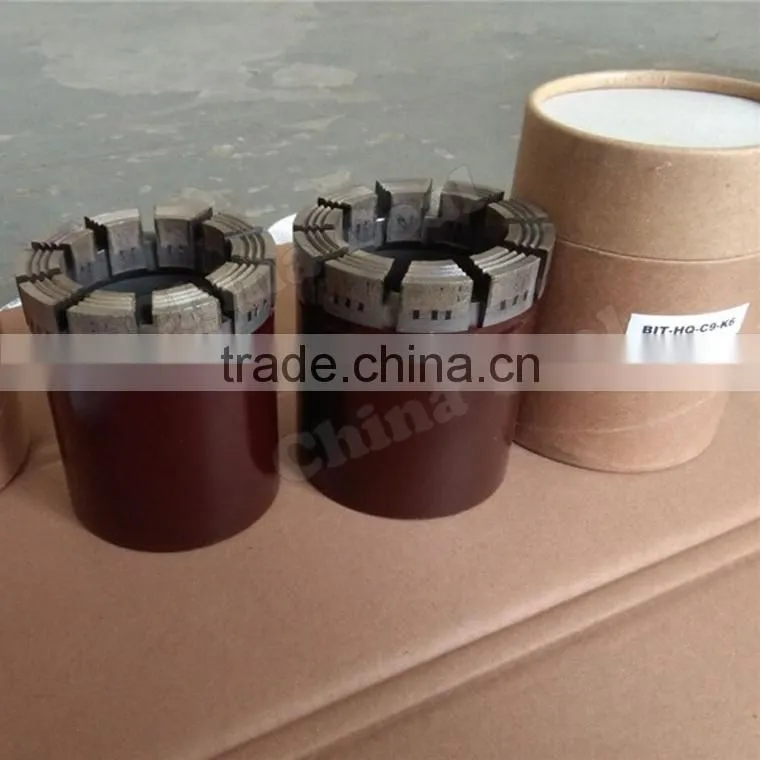

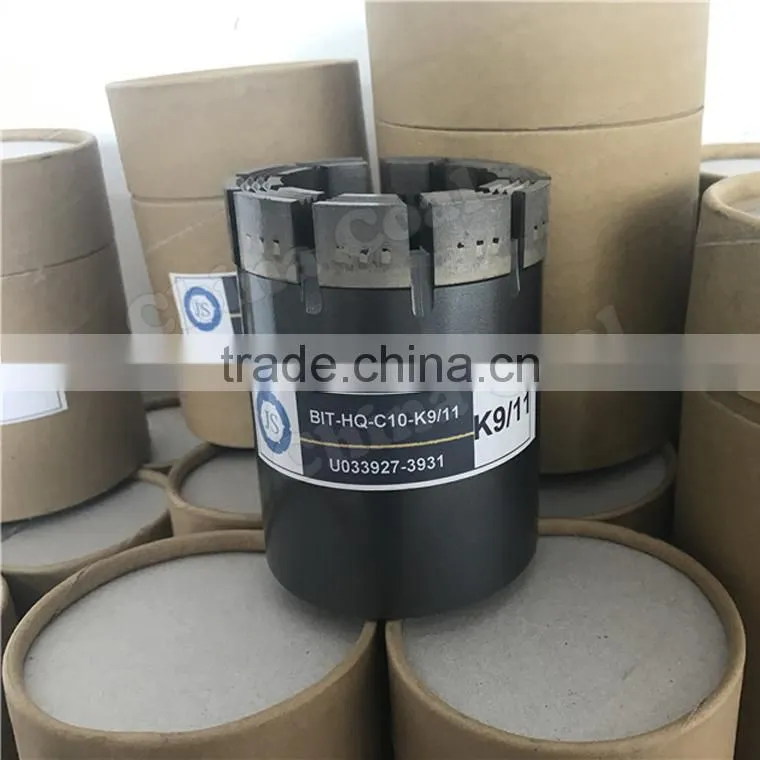

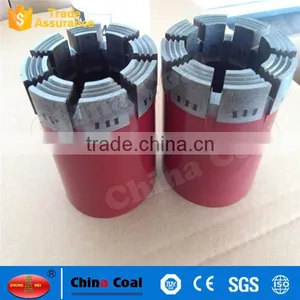

Diamond core drill bits for Geological drilling Figure Photos
