Specifications
tire recycling line1.capacity:250kg/h-2000/h
2.rubber powder:5mm-100mesh
3.CE ISO
Detailed Product Description
waste tire/tyrerecycling plant can made 5-100mesh rubber powder.
Process of tire/tyre recycling line
| Equipment | Application |
| Steel ring remover | Pneumatically remove the steel ring in the rubber |
| Belt conveyor | Convey the pretreated tire into the twin shaft shredder |
| Twin shaft shredder | Shred the tire into Apr. 50mm lumps |
| Belt conveyor | Convey |
| Middle granulator | Make the lumps into smaller pieces and remove some metals with force magnetic device |
| Belt conveyor | Convey |
| Last granulator | Make the small pieces into the size suitable for miller |
| Vibration screen | Separate the remaining metals, fiber and rubber |
| Blowing system and cyclone silo | Double layer silo with magnetic device to remove the remaining metals and separate the fiber from rubber, to get a high quality rubber products |
| Fine miller | Specially designed miller for rubber to get a good quality rubber powder |
| Blowing system and silo | Storing the powder for reuse |
| Anyway, we will arrange a suitable line according to your detailed demands | |
Advantage of tire/tyre recycling line
A: Granulate waste tires into rubber powder of 5-100 mesh, and automatically separate steel wire, fiber and nylon completely through magnet separator and vibrating screen at normal temperature.
B:Compact structure, small space and easy maintenance.
C: Low energy consumption and good cost performance.
D: Automatic control, higher operation stability, and lower labor intensity.
E: No polluted water, waste gas and waste residue in the whole process.

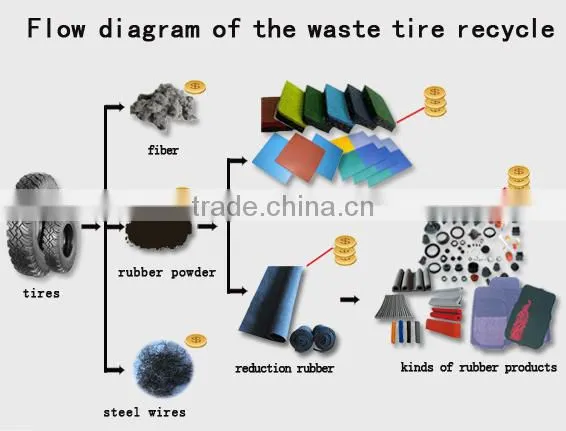

Application of tire/tyre recycling line
The line is complete automatic line, from drawing out bead wires, crushing the whole tyre, separating the thin steel and fiber to the rubber powder, The line is recycling the waste tyre under the normal temperature
Our tire recycling line is designed to make rubber powders...
And this kind of tire can be applied to:
1. Auto industry (vibration absorbing materials, shock absorber)
2. Rubber products (safety cushion, road isolation barrier, rubber tube, rubber plate, rubber sole and so on)
3. Athletic sports ground surface materials (court, prefabricated rubber running track)
4. Road engineering and bituminous road mad surfacing (to be mixed with asphalt and be used for surfacing roads or sleeper of railway, underground railway and so on)
5. Building materials (rubber tile rubber floor brick, water proof coil, vibration proof foundation applied in construction and so on)
6. Agricultural use (pavement of stock farm and son)
