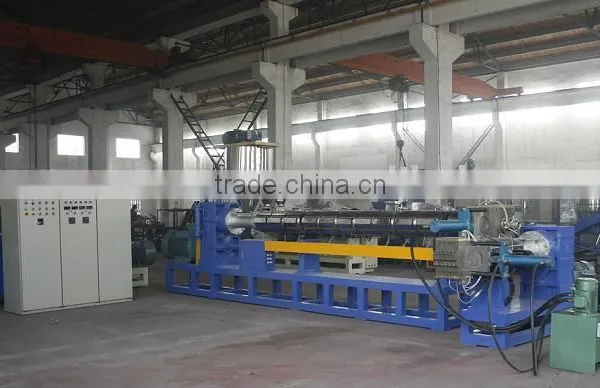

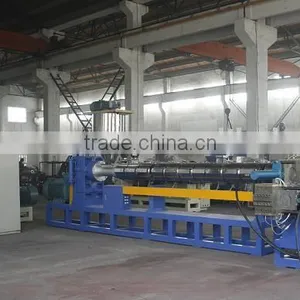

Two Stage Pelletizing Line
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Application:
Granules
Plastic Processed:
PVC
Screw Design:
Double-screw
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
PVC Crust Foam Board Making MachineNegotiableMOQ: 1 Set -
Bale BreakerNegotiableMOQ: 1 Set
-
PP/PS/PE Mono/multi-layer Sheet Extrusion LineNegotiableMOQ: 1
-
Pipe Belling Machine/automatic Pipe Belling MachineNegotiableMOQ: 1
-
PVC PP PS PE Plastic Hollow Cross Section Plate Extrusion LineNegotiableMOQ: 1 Set
Application
Granules
Plastic Processed
PVC
Screw Design
Double-screw
Place of Origin
Jiangsu, China
Brand Name
sevenstars
Specifications
TSJ series two-stage machine characteristics structure:Stage 1 is TSJ high-speed co-rotating stwin-screw extruder. Stage 2 is
Principle and applications:
1. Take advantage of twin-screw extruder and single. Twin-screw extruder force transportation, high effective plastizing and compunding, dispersion.
2. Increasing the operation variables and realizing the process because of two-stage machine
3. Higher effective and production capacity.
4. Good at process heat-sensitive material and devolatilization operation, such as PVC, XLPE
5. Zero halogen cable, shield material, carbon black etc.
(1) the first stage
1. L/D: 25: 1
2. Screw diameter: Φ160
3. DC Motor power: 160kW
4. Rotary speed: 10~120rpm
5. Cooling method: Force air cooling
6. Lubrication way: Oil dipping
7. Heating method: Electric heater
8. Heater power: 70kw
9. Controlling section: 6 sections (including die head)
(2)the second stage
1. L/D: 8: 1
2. Screw diameter: Φ180
3. DC Motor power: 75kW
4. Rotary speed: 10~120rpm
5. Cooling method: Force air cooling
6. Lubrication way: Oil dipping
7. Heating method: Electric heater
8. Water-ring rub surface granulation
9. Controlling section: 4 sections (including die head)
10. Heater power: 70kw.
