Fully automatic waste rubber tire crusher / waste rubber tyre shredder
eatures of waste rubber tire crusher:
1) It is used to process waste tire into all sizes of rubber powder
2) Fully automatic line
3) High efficient with large output
Advantages of waste rubber tire crusher:
Patented Products: Patent Number: 200920223850.2 1/3 energy saving (Take XKP-450 as an example)
Common product Ours
Motor power 57kw 45kw
Capacity 4-6ton 8ton
Bearing slide bearing ( bush) rolling bearing
High output, and the money you saved on the power can buy another production line.
Working flow of waste rubber tire crusher:
Waste tire - Tire de beading - whole tire cutting- Tire shredding- Rubber crushing - magnetic separating -fiber separating - Rubber powder
Specifications of waste rubber tire crusher:

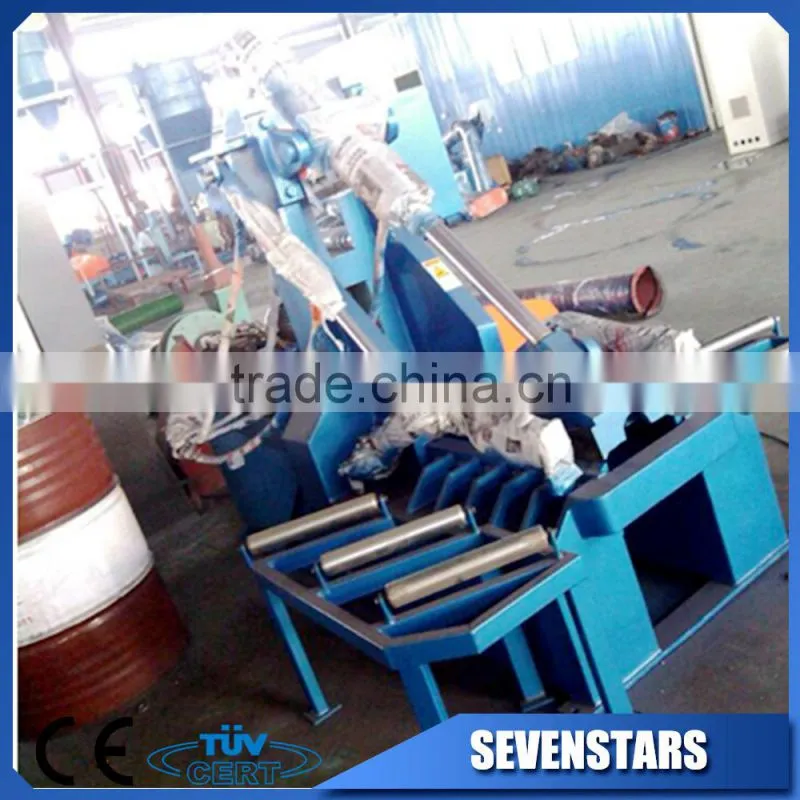

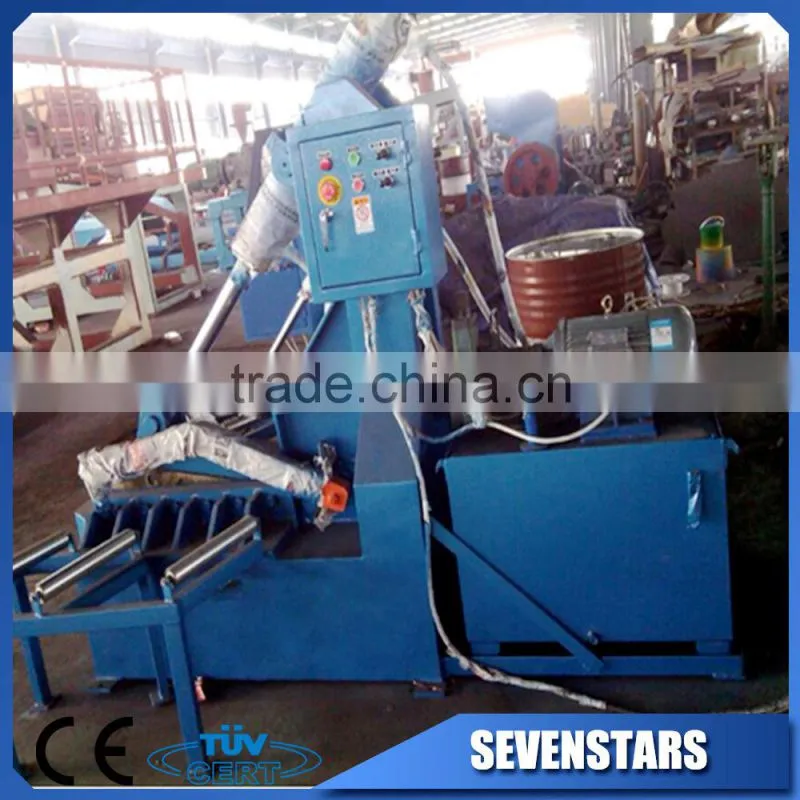

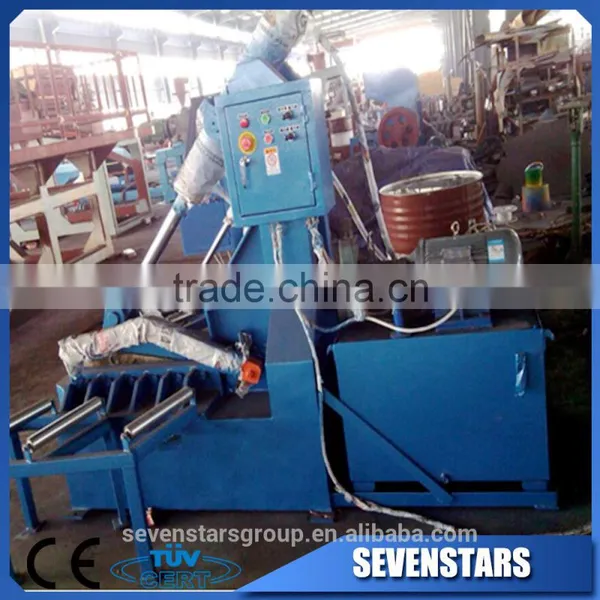

First Step: Tire de beader is used to pull out the steel wire from the tire.
Second step ( optional): it is used when tire size is larger than 850mm

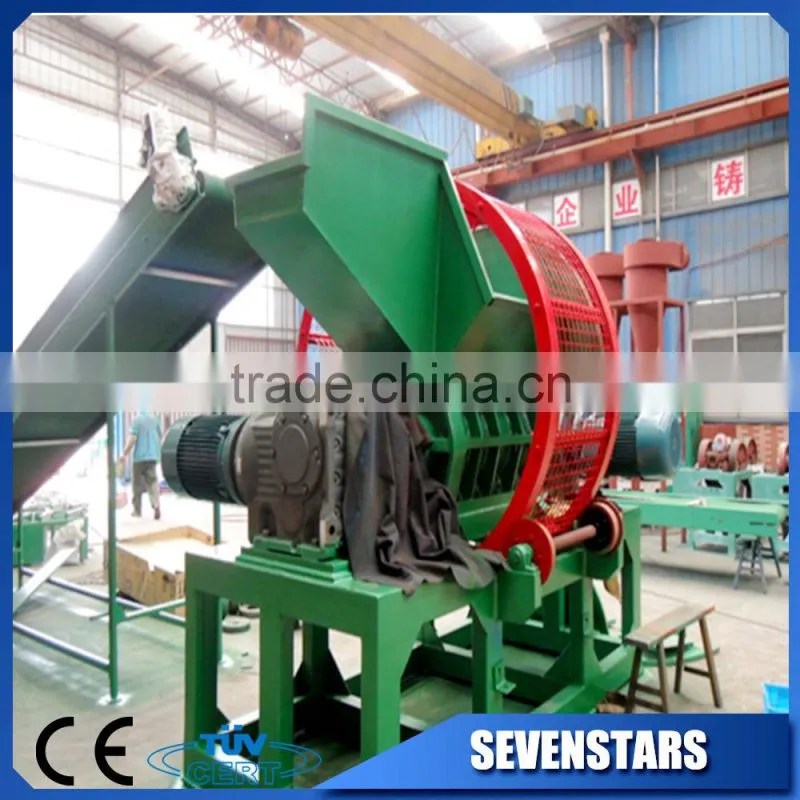

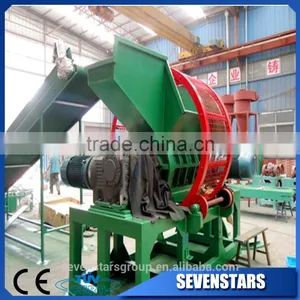

Third step: tire shredder
1.This whole tire shredder can cut whole tire into 50x50mm , and 60x60mm rubber block as you need.
2. The oversize types can be cut to small pieces by whole tire cutter.
Model |
TS-900 |
TS-1200 |
Production capacity |
0.8-2ton/h |
1.5-3ton/h |
Size of feeding |
≤900mm whole tyre |
≤1200mm whole tyre |
Specification of the slice |
≤50*50mm |
≤60*60mm |
Motor power |
47kw |
55 x 2 kw |
Cutter rotate speed |
16r/min |
31r/min |
Screener rotate speed |
6r/min |
8r/min |
Dimension |
2.8*2.1*2.4m |
5.2*2.8*3.5m |
Weight |
6.2T |
14.8T |
Fifth step : Rubber crusheris used to grind the chunks into smaller mesh powder through the vibrating screen as youneed.
Model |
Drum diameter |
Drum length |
Front roll linear |
Roll speed ratio |
Max roller spacing |
Motor power |
XKP-350 |
300mm |
500mm |
26.2m/min |
1:2.5 |
8mm |
30kw |
XKP-400 |
400mm |
600mm |
34.5m/min |
1:2.5 |
8mm |
45kw |
XKP-450 |
450mm |
760mm |
38.0m/min |
1:2.5 |
8mm |
55kw |
XKP-560 |
560mm |
800mm |
38.6m/min |
1:2.5 |
8mm |
75kw |
xkp560D |
560mm |
800mm |
42.5m /min |
1:2.5 |
8mm |
132kw |
Sixth step : Magetic separator is used to separate the steel from the powder
